Alignment on media issue

Discussion in 'Mutoh' started by SummitSignsandmore, Aug 13, 2019.

  1. SummitSignsandmore

    SummitSignsandmore Active Member

    592
    2
    18
    Jul 16, 2009
    PA

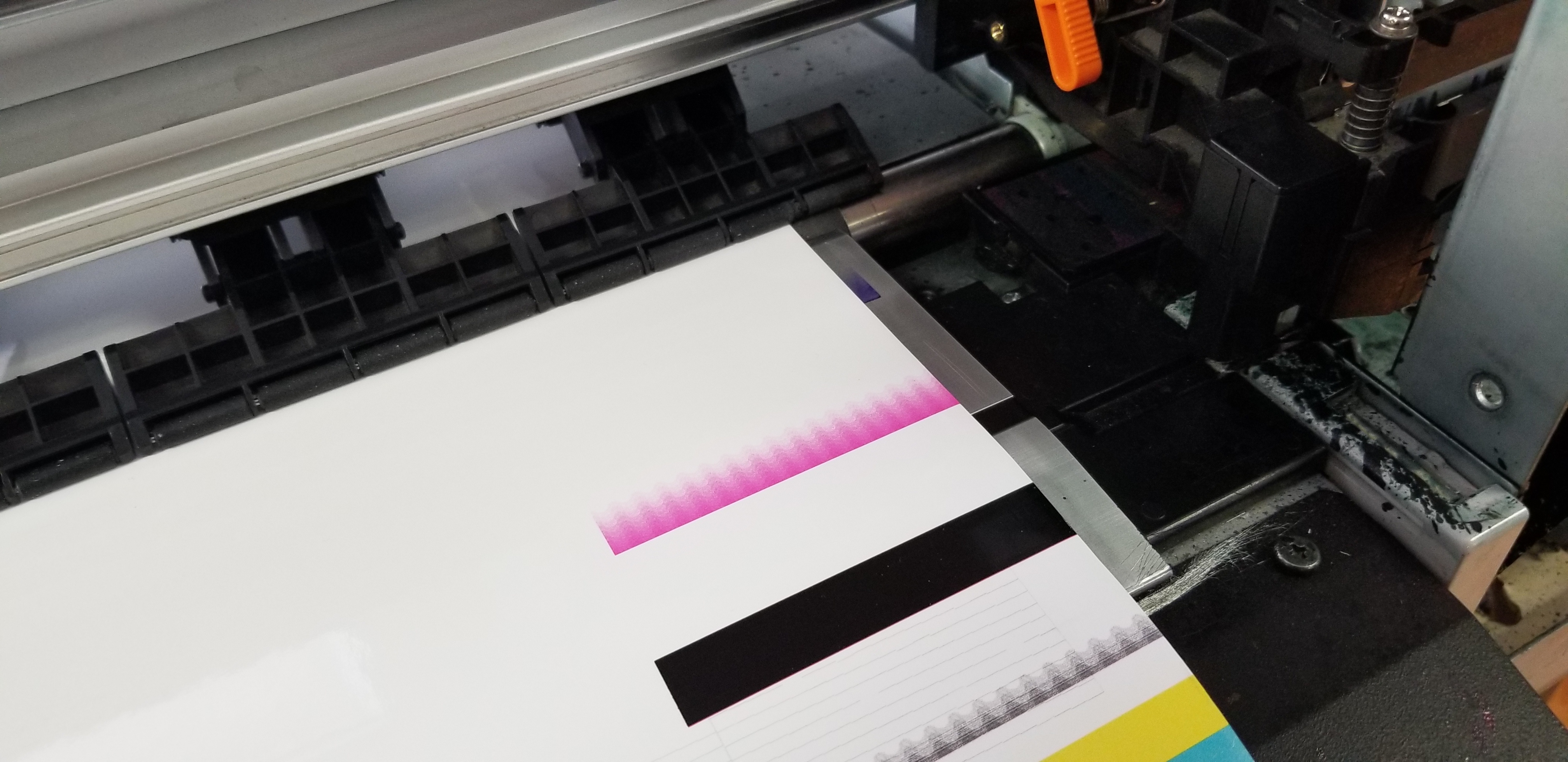

    I swapped out my carriage today due to some bad bearings. Printers back together and printing well aside from where it is starting my prints on the media. I have a picture attached to better show my issue. My printer is starting the prints approx 1/4" before the medias edge. Anyone have any idea how to fix this alignment issue?


    Attached Files:

    Tags:
  2. Solventinkjet

    Solventinkjet Printer Fixers

    3,451
    592
    113
    Aug 2, 2011
    Denver, CO
    Since the carriage was changed I am assuming the cutter holder is probably out of wack. I know there isn't a cutter on that machine it's just what they call the piece that holds the solenoid that unlocks the carriage and the media sensor. It's a separate piece that attached to the left side when you reassembled it. There is an official method to set the height of that piece and it requires a special jig unfortunately. That being said, I have replaced them without the jig with success. There is a black piece of plastic on the left side of the cutter holder. The distance from the bottom of that and the platen should be 5.2mm +/- .2mm. I would just use a number 5 Allen key to get it set. Tighten the screws and see if that helps at all.

  3. SummitSignsandmore

    SummitSignsandmore Active Member

    592
    2
    18
    Jul 16, 2009
    PA
    That was it. Thank so much for the reply. You got me fixed up.
