Westcoast Sign Guy
New Member
The Sign Syndicate is now stocking and distributing the high brightness American Made Axiom AXLE9-XB LED modules at $2.00 per module or $4.00 per foot with Nichia of Japan diodes along with their military grade power supplies that we have been selling for some time now.
For those that don't know or are new to the site, The Sign Syndicate has been running the only public Neon & LED comparison tests since 2008 starting with The Great White Hope. We've been testing just about every Neon & LED Lamp that's out on the market throughout our various tests.
The Axiom LED was just about the winner when it came to the high powered LEDs, they were side by side with the GE Tetra PowerMax. What put Axiom at the the top was price, it was about 1/5th the price and ended up being slightly brighter by a few foot candles after 36,000 hours (12 sign years at 8 hrs a day) of operation and they were just a shy in brightness to that of the Tri-Phosphor Neon Lamps.
That was the class of 2008.....
Now.....we have the Great White Hope II which started at the beginning of this year, and Axiom just got better being added in this month September 2014. We now have a light source that is just a hair under the brightness of a 13mm EGL DL65 Tri-Phosphor Neon Lamp running at 60ma.....That's Sickly bright!!!

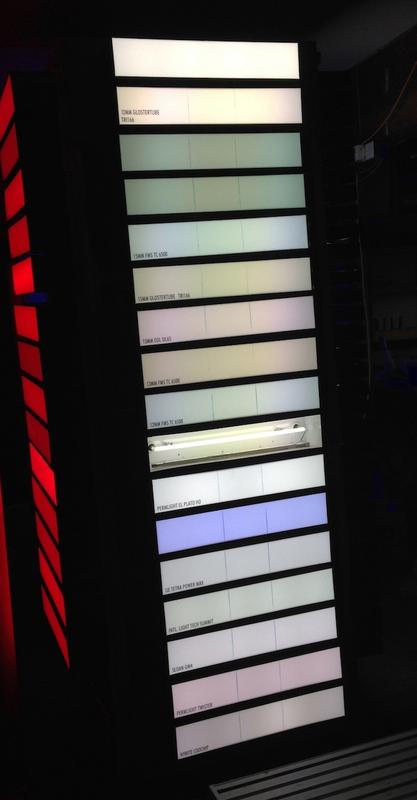

GWH II Test Comparison - Axiom AXLE9-XB (channel located on top)
The Axiom AXLE9-XB is a very good alternative/option to Tri-Phosphor Neon & Fluorescent lamps for large channel letters and sign cabinets.
The wow factor to the Axiom LED module is that you get a two for one LED module with the Axiom AXLE9-XB LED. I demonstrated it in a video below. You can use the module with or in a 12 volt system/power supply under driving it and use it as a .5 watt module, and you just about have the brightest module in Project Tighty Whitey, and the highest Foot Candle per Watt.
Or...
You can use run it on a 14.7 volt system and really using it as intended and where it's driving the Nichia of Japan LEDs at optimum with the Axiom PS6012 Power Supplies which are manually adjustable from 10.5 volts to 15 volts and now use it as a 1.6 High Brightness LED as used in the Great White Hope II.

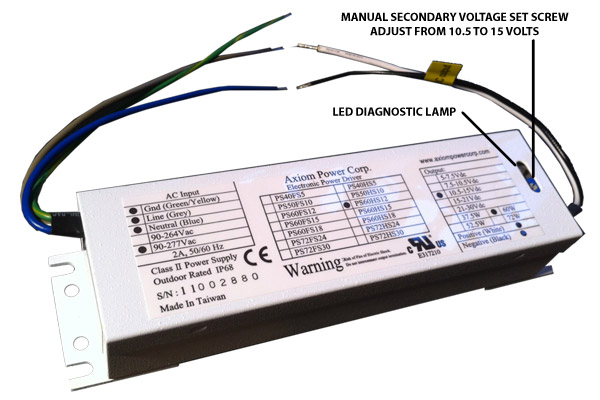

Axiom PS6012 60Watt Power Supply
The AXIOM LED AXLE9-XB Specs
• Nichia of Japan LEDs For Maximum Lifetime
• LM80 Tested
• 250-260 Lumens Per Module, 500 Lumens Per Foot
• UL Recognized For Wet Locations & Listed in the UL SAM
• Up To 60˚C Ambient Operating Temperature
• Just as Bright As A 13mm 60ma Tri-Phosphor Neon Lamp
• Under Driven on a 12v System, Optimum & Made For a 15v System
• Measures at 1.325" Long x .75" Wide, 1/8" High
AXIOM LED AXLE9-XB Demonstration Video
[video=youtube;_KYNYer1bDQ]https://www.youtube.com/watch?v=_KYNYer1bDQ[/video]
You can order the Axiom AXLE9-XB Modules and Axiom PS6012 straight from our online shopping cart here. You can contact us by phone with any inquiries or questions and also to place orders (858) 880-1400 or by email orders@thesignsyndicate.com
