Suggestions Best Way to Install Something This Big

[rcglimitless]

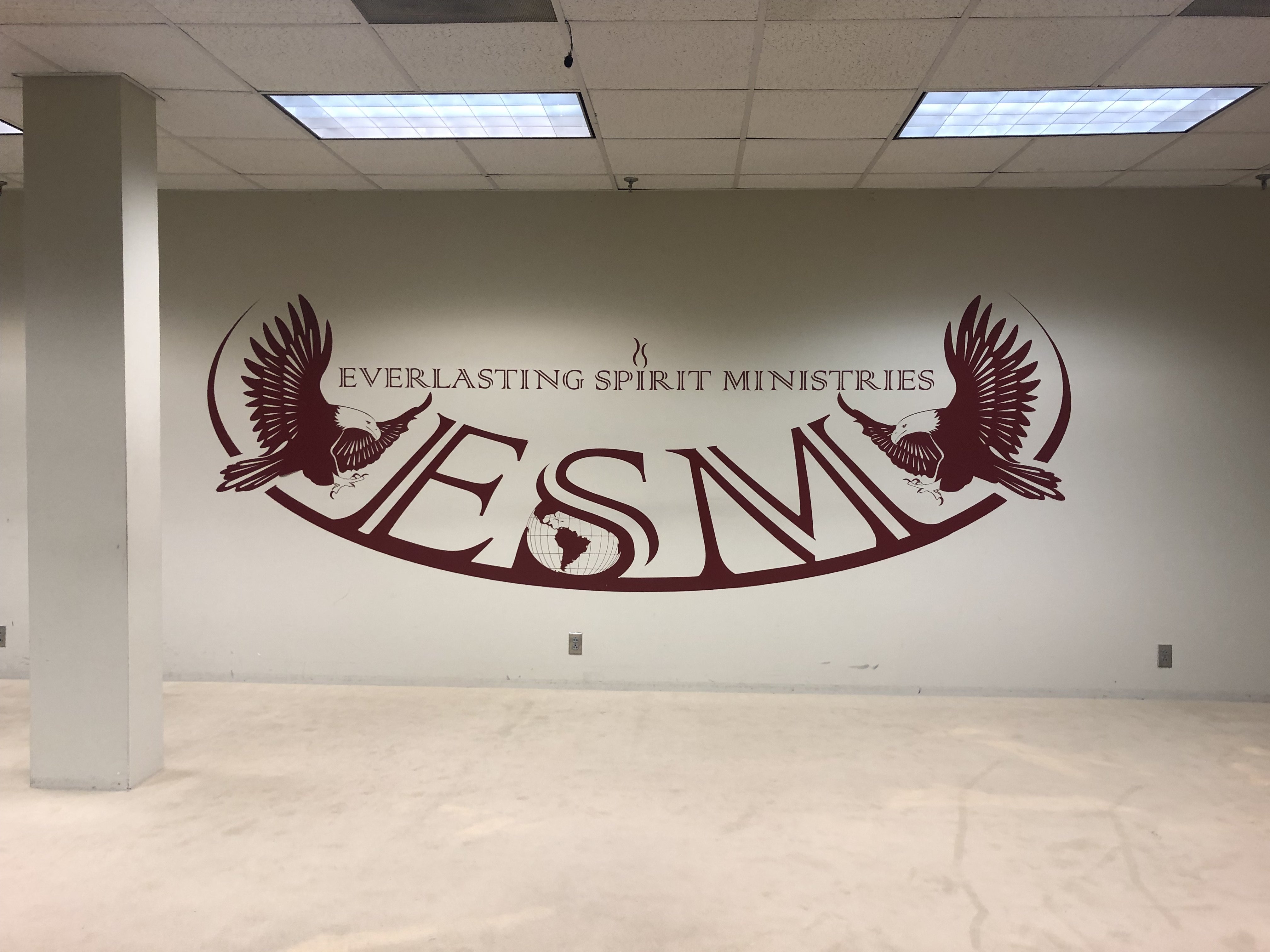

Need some suggestions on how to cut and install this. 5’x10’



[SignMeUpGraphics]

I'd cut the entire bottom ESM part out in one go... looks like it'll fit onto a 48" roll no problem.
Add some registration marks on either side.
Then do the eagles + outer swooshes as their own cuts, align with previous registration points.
The text itself... just measure and align manually as if it were a standalone job.



[rcglimitless]

I'd cut the entire bottom ESM part out in one go... looks like it'll fit onto a 48" roll no problem.
Add some registration marks on either side.
Then do the eagles + outer swooshes as their own cuts, align with previous registration points.
The text itself... just measure and align manually as if it were a standalone job.

Thanks. That helps.



[jfiscus]

I would just buy a few yards of 60" wrap vinyl and cut it out of that. No seams. Seaming across the top wouldn't be that bad either if you are limited to under 48"



[Gino]

You do realize that what you have pictured is not anything close to scale ?? So, does your customer know this ??

We don't have a 60" cutter, so I'd do exactly like signmeup suggested.
