CE 5000 Print + Cut question

Discussion in 'Graphtec' started by GP, Jun 22, 2012.

  1. GP

    GP Very Active Member

    1,728
    0
    36
    Dec 12, 2007
    SC
    We are having an on-going print cut battle -

    This is our latest problem:

    For some reason, after successfully reading the first (of 4) registration marks, it only advances 13" or so in attempt to read the second mark.

    In this case, mark 2 is approx 52" away.

    Again, on the rare occasion we can get it to successfully read mark 1, it just does not advance the distance to mark 2.

    I have no idea what setting could have been flipped (or turned off) in attempt to reset to factory settings.

    misc. data:
    Graphtec CE5000-60
    Cutting Master 2 through AI
    Standard AI 2 registration marks with increased thickness, printed std black
    3165 Print with 210 Gloss laminate (with matte snipes covering registration)

    Any input would be greatly appreciated.

    Tags:
  2. thmooch

    thmooch Active Member

    556
    0
    16
    Mar 13, 2007
    sc
    Can you do a screen capture of the plot window? This the same set up I use.

  3. GP

    GP Very Active Member

    1,728
    0
    36
    Dec 12, 2007
    SC
    The main screen in Cutting Master?

  4. thmooch

    thmooch Active Member

    556
    0
    16
    Mar 13, 2007
    sc
    Yeah, I would start there.

  5. GP

    GP Very Active Member

    1,728
    0
    36
    Dec 12, 2007
    SC
    Thanks for any help you might give -

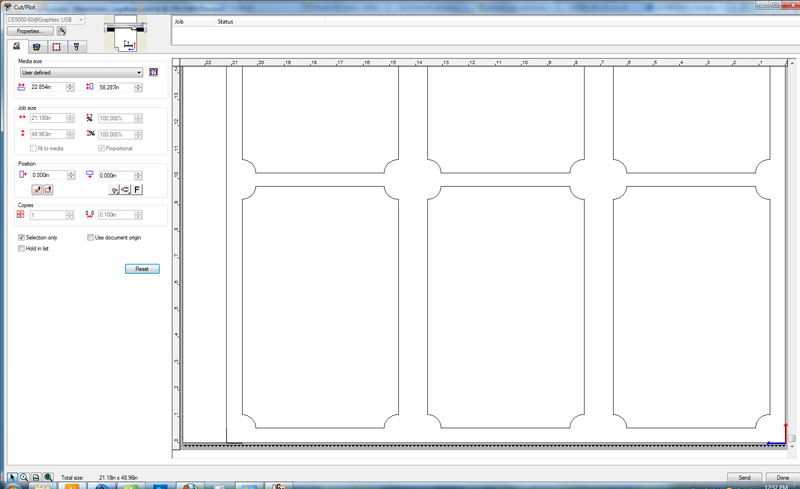

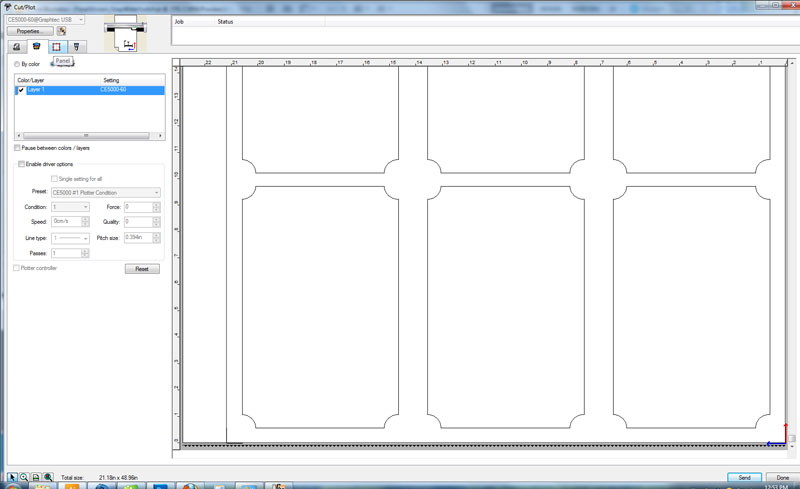

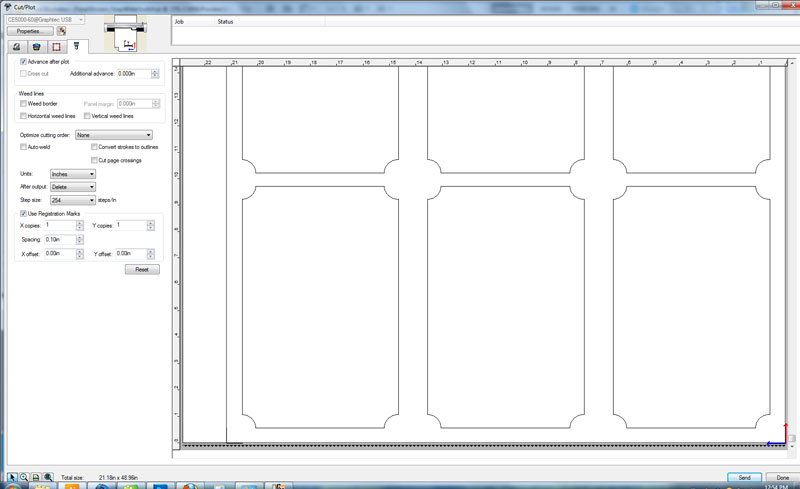

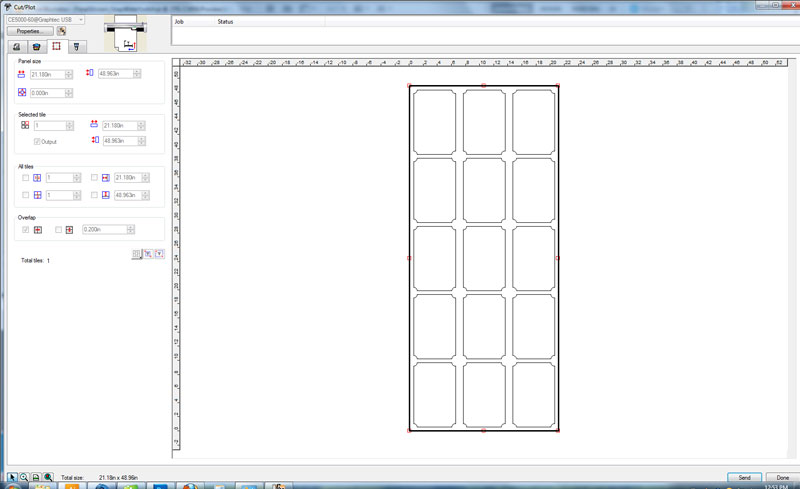

    Here are all four screens in Cutting Master.


    Attached Files:

  6. thmooch

    thmooch Active Member

    556
    0
    16
    Mar 13, 2007
    sc
    I pulled up file and have a few different settings. Don't know if they make any difference...

    First Tab, "Selection Only" is not checked.
    Second Tab, same settings.
    Third Tab, same settings
    Fourth Tab, Under Optimize cutting order: "Restrict Media Movement"

  7. GP

    GP Very Active Member

    1,728
    0
    36
    Dec 12, 2007
    SC
    I just create an arbitrary cut file with registration marks to verify that it was not the file.

    It consisted of 12" x 30"" box, with registration marks.

    It recognized the first registration mark fine (miracle).

    Then, only advanced 8-8.5" to look for second mark, instead of the 31+" necessary.

  8. GP

    GP Very Active Member

    1,728
    0
    36
    Dec 12, 2007
    SC
    Thanks again for your time Mooch -

    Sorry for the confusing simultaneous posts.

    I checked/unchecked those settings and sadly had the same results.

  9. thmooch

    thmooch Active Member

    556
    0
    16
    Mar 13, 2007
    sc
    Then it may be something to do with the plotter. Sorry I can't be of any better help.

  10. GP

    GP Very Active Member

    1,728
    0
    36
    Dec 12, 2007
    SC
    No worries - thank you for taking the time out of you day to help us out.
