Colors not aligned on my SC-540

Discussion in 'Roland' started by mystrylady473, Jun 14, 2012.

  1. mystrylady473

    mystrylady473 New Member

    3
    0
    0
    Jun 11, 2010
    I've replaced the print head manifold and damper. Now my colors seem to be printing out of alignment. I've already tried a bi-direct adjustment to no avial.
    Any help would be greatly appreciated.... My shop has been down for 3 days!!!

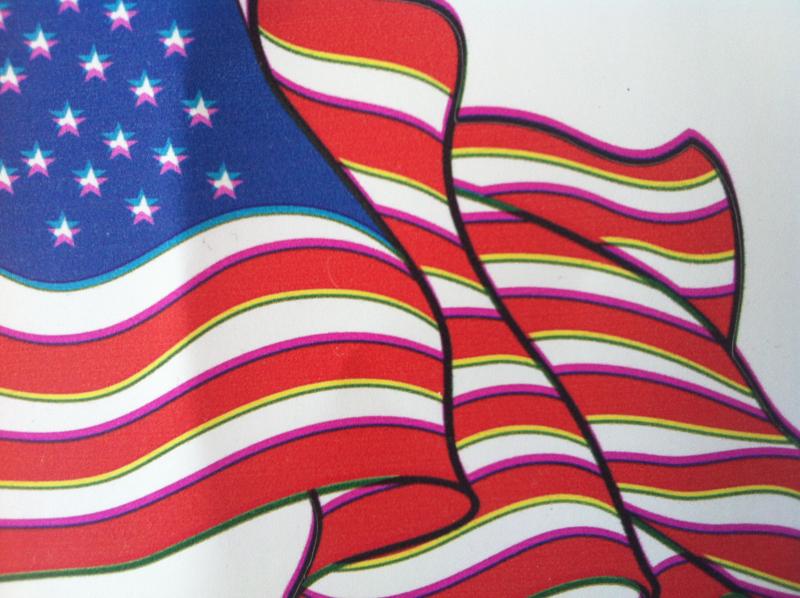

    See pics below:


    Attached Files:

    Tags:
  2. otctech

    otctech Member

    116
    0
    0
    Dec 16, 2011
    Go through all of your calibrations in service mode, starting with bias (physical adjustment of heads).

  3. mystrylady473

    mystrylady473 New Member

    3
    0
    0
    Jun 11, 2010
    "Service mode is protected":covereyes:
    Now what!?

  4. SightLine

    SightLine Very Active Member

    Get a service tech out asap from a Roland dealer who know how to go through all the alignments. Thats a DX4 head on those if I remeber right so it probably had either 3 or 4 heads. Alignment is not a simple procedure, takes specific knowledge of the steps, in a specific order as well as a 50x or so loupe to first do the physical alignment followed by the electronic alignments.
