CO Flatbed Laser System - Rabitt RL-150-1525

sbrown1616

New Member
Moving to new location and need to sell this great Flatbed Laser System. Lightly used, purchased in 2013 and includes a BOFA AD-1500 Fume Extractor. Also included laptop, Laser cut 5.3 software, brand new spare parts. Have all of the original paperwork and software. Recently serviced and laser is in perfect working condition. Price $17,500 buyer pays for shipping.

•Laser-type : Sealed CO2 laser tube, water-cooling, 10.6um
•Laser power: 80W
•Machine Power: 220VAC
•Engraving area: 1500 x 2500mm
•Max engraving speed: 0-30,000mm/min
•Max cutting speed: 0-24,000mm/min
•Laser output control: 1-100% software setting
•Location precision: less than 0.01mm
•Highest scanning precision: 50-1000DPI
•Operating temperature: 0 - 45C
•Operating humidity: 5- 95% non-condensing
•Minimum shaping character: English 1x1 mm
•Driving system: Micro-step motor and amplifiers
•Cooling mode: Freon-based chiller and water flow sensor
•Auxiliary equipment: Vacuum/Exhaust fan, air-exhaust hose, air-assist pump
•Work surface: Iron honeycomb
•Controlling software: LaserCut 5.3 and Leetro 6535 DSP control system
•Compatible software: TAJIMA, CorelDraw, AutoCAD, Photoshop, ...and more
•File formats supported: JPG, BMP, PLT, DST, DXF, AI...
•Color separation: Uses color property to set function, speed, and laser power.

Special Features:
• Materials can be passed from front to back for an unlimited material length.
• Solenoid for air assist control
• Work light under the gantry to see products during laser processing.
• Red-Dot pointer to help you see the expected laser beam position.
• Work surface has a vacuum table built in the design. This helps to control fumes.
• Parts tray for removing small parts or scrap from under the work bed.

Buyer must pay for shipping.


Attachments

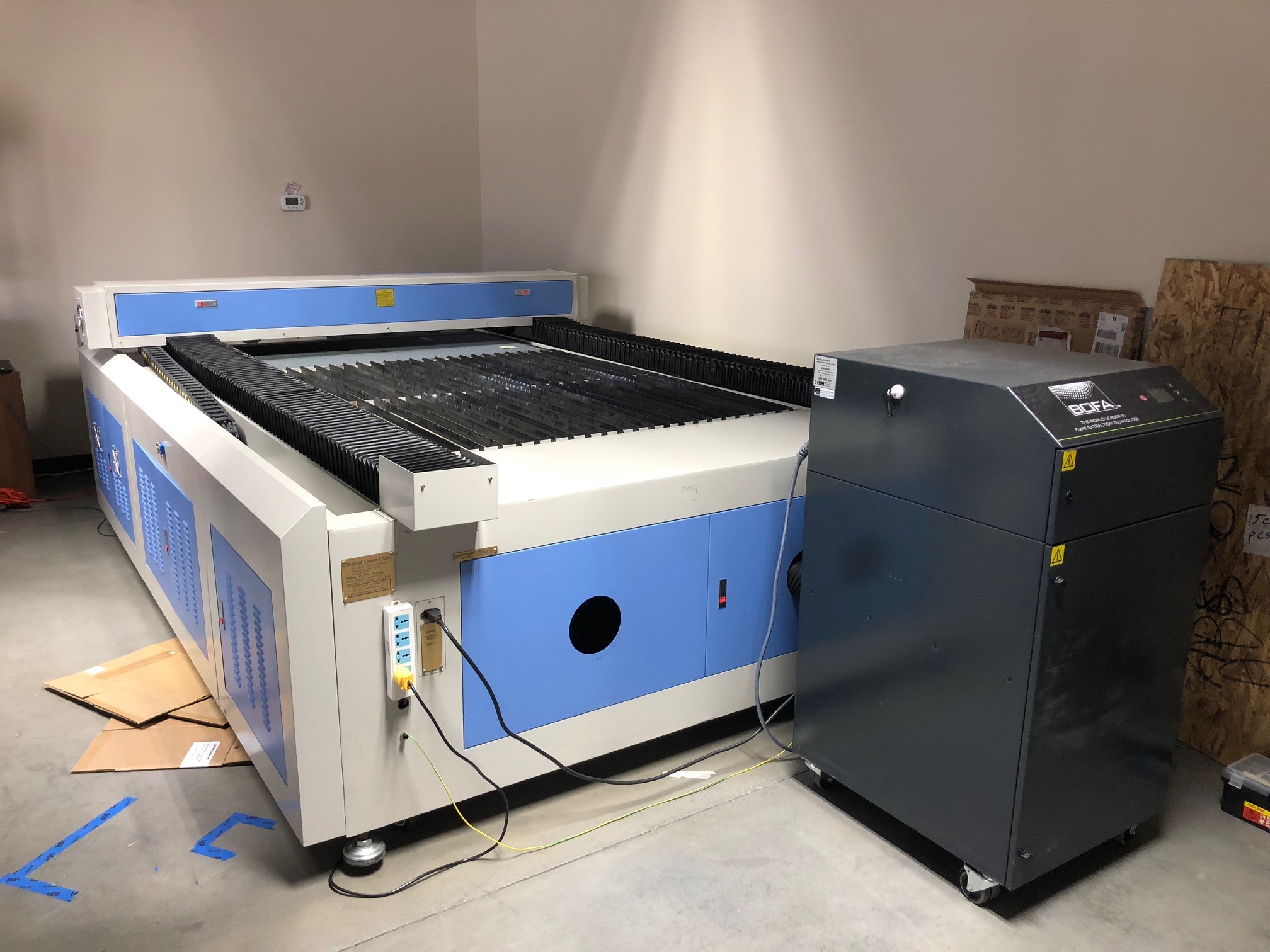

  • Back.jpg
    443.1 KB · Views: 350

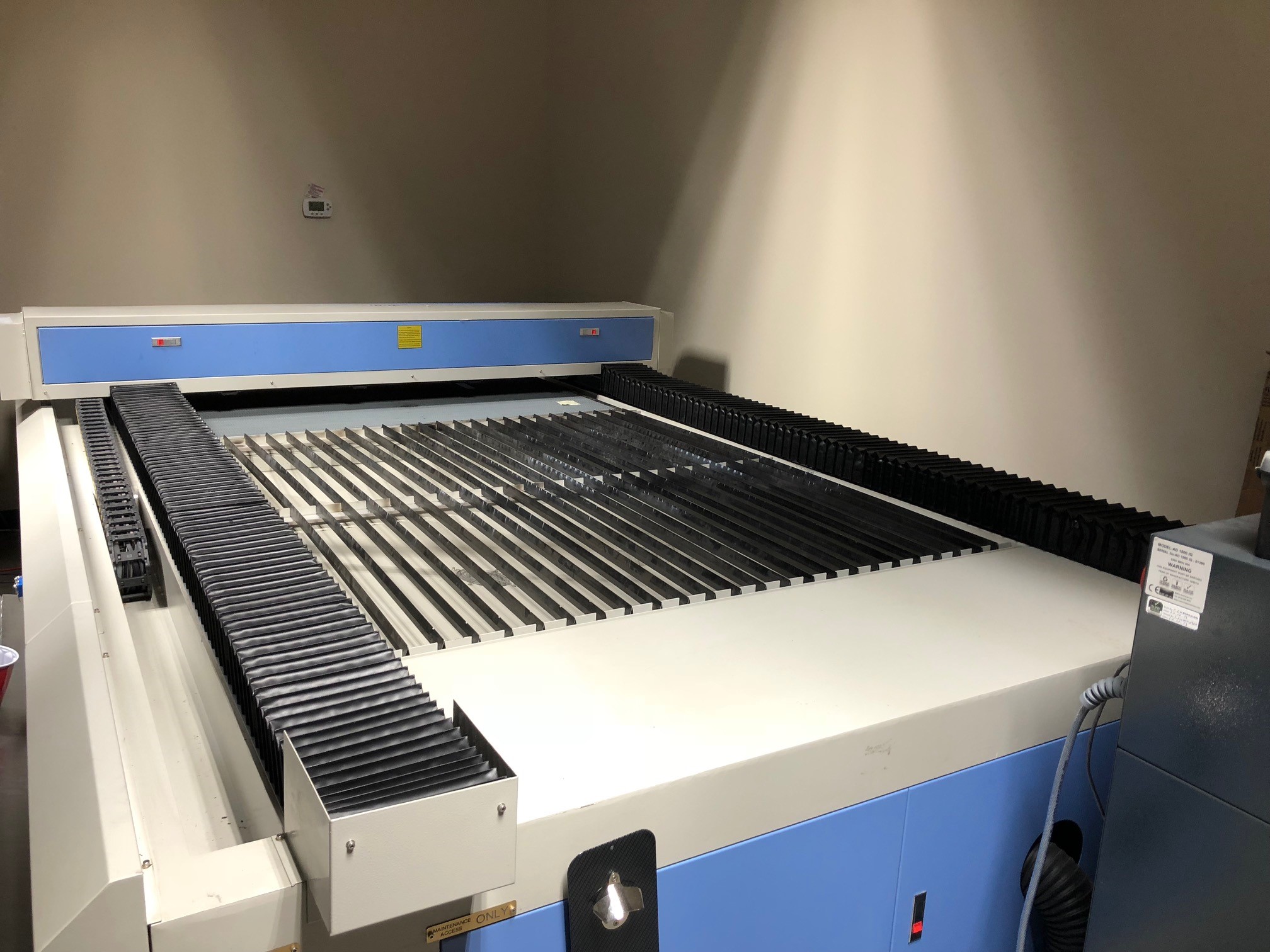

  • Back2.jpg
    481.9 KB · Views: 248
  • Laptop.jpg
    451.8 KB · Views: 266

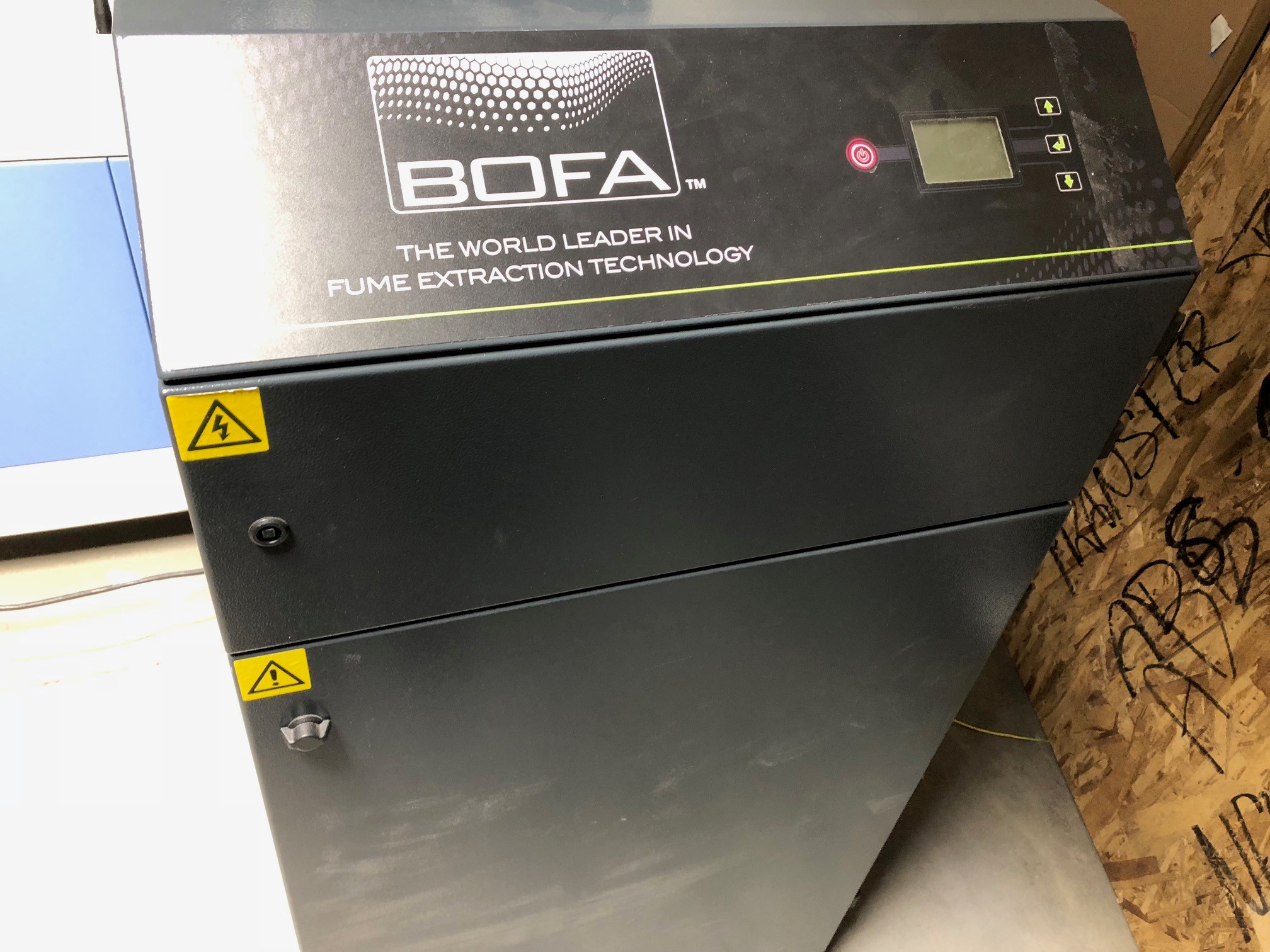

  • Bofa2.jpg
    558 KB · Views: 281

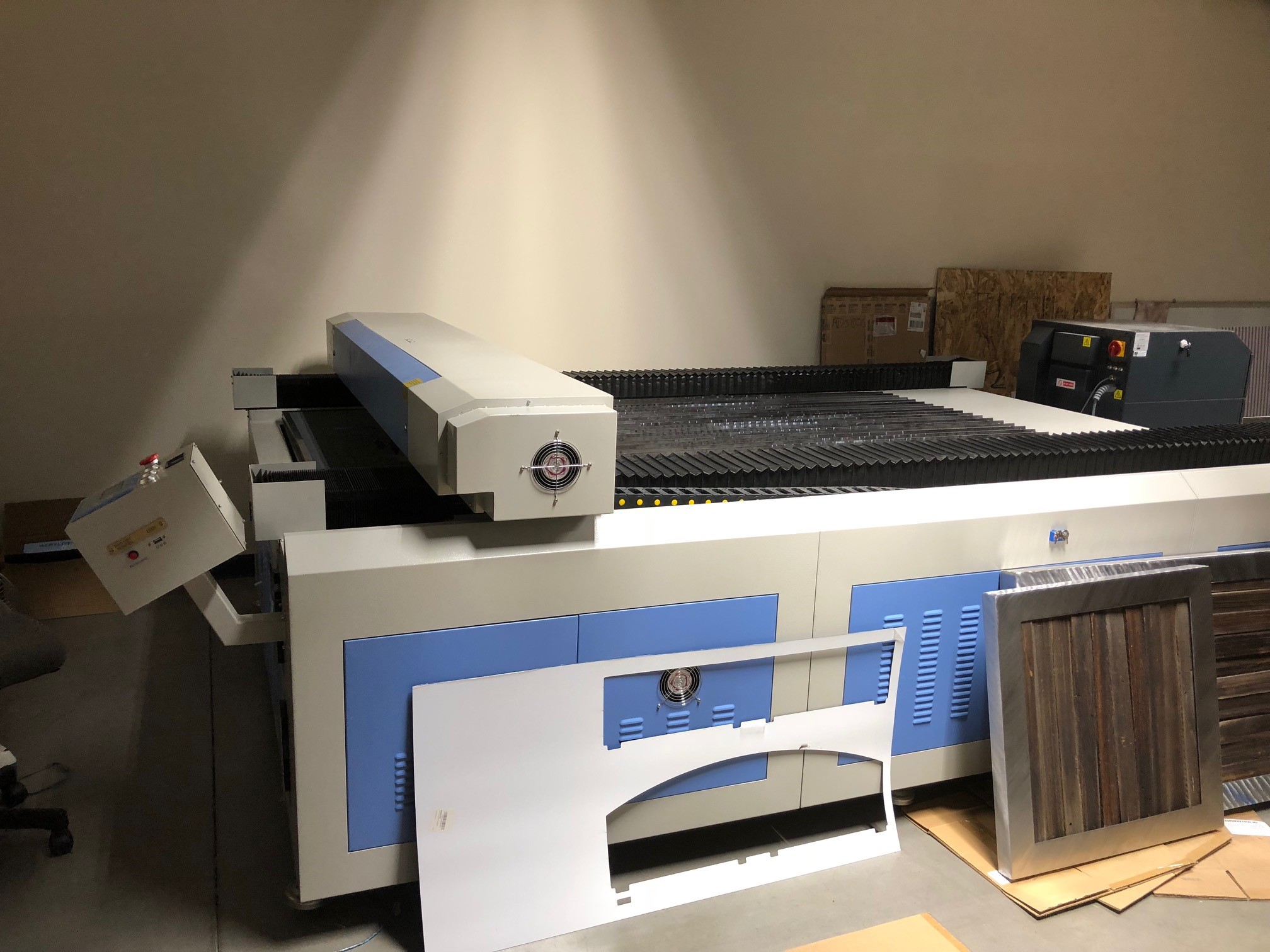

  • Side.jpg
    467.9 KB · Views: 270
