IL GRAPHTEC FLATBED FC2250-180VC FOR SALE

Discussion in 'Member to Member Classifieds • For Sale' started by ProPDF, Jun 17, 2019.

  1. ProPDF

    ProPDF Member

    334
    105
    43
    Jan 8, 2015
    Chicago

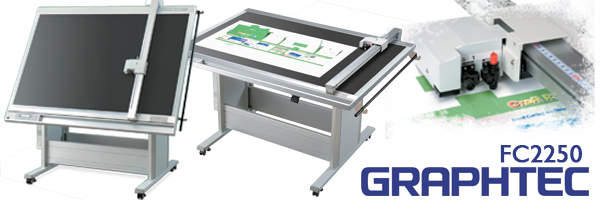

    We have a GRAPHTEC FLATBED FC2250-180VC (VACUUM) FOR SALE. It's in an office that we are relocating. We can ship it M-F 9-4pm. It has seen little use and was used for samples. Cuts 36 inches X 68 Inches long files.

    Priced to sell at $9950 or make an offer. Cost over $26k. UP to 1000 Gram Force pressure. Excellent opportunity for a shop that wants clean die cut decals without the huge cost of a zund, summa, kongsberg ect.

    Comes with Vacuum Pump and does offer the optical sensor to contour cut decals.
    Software can be downloaded online


    FC2250-60VC

    FC2250-120VC

    FC2250-120ES

    FC2250-180VC

    Maximum cutting Area 24 in x 36 in 47.2 in x 36 in 68.5 in x 36 in
    Max Media Widths 38.8 in (Y-axis direction)
    Media Hold-down Method VC= Vacuum Suction (vacuum kit sold separately) ES= Electrostatic Adhesion
    Minimum Character Size Approx. 1 mm square (varies with the character font and media)
    Maximum Cut Speed 16 in/s (400mm/s)
    Cutting Force Tool1= Max. 500 gf in 40 steps, Too2= Max. 1 kgf in 40 steps
    Mechanical Resolution 0.0025 mm
    Programmable Resolution GP-GL Mode; 0.1/0/05/0.025/0/01 mm, HP-GL Mode; 0.025mm
    Compatible Media Type Marking film (vinyl, fluorescent, and reflective), Stiff paper/card (for stencils, etc) up to 0.5 mm thick, polystyrene foam sheets up to 0.8 mm thick, sandblast rubber sheets up to 1.0 mm thick, Microflute board(F/G grades), Clear sheets for plastic boxes, High-intensity reflective film.
    ARMS Advanced Registration Mark Sensing System, Reverse-side cutting and creasing with ARMS, copy function, Creasing function, Repeat cut function.
    Interface USB 2.0 High-speed, Optional Ethernet Interface (oph-A23) available
    Command Modes GP-GL, HP-GL (selectable in command menu or Auto detection)
    Number of Tools 2 Tools
    Tool Types Cutter Blade, Pen Cutter blade; super-steel, Pens: Water-based fiber-tip pen, oil-based ballpoint pen Creasing/scoring tool
    Unit Dimensions 36.2 x 50.6 x 33.7 in 61.7 x 50.6 x 33.2 in 61.7 x 50.6 x 33.2 in
    Shipping Weight 128 lbs 152 lbs 163 lbs
    Optional Stand Shipping Wt. 62 lbs
    Warranty 1 Yr Parts & Labor Plus 1 Additional Year after online registration
    Graphtec List Pricing
    $14,500.00
    $22,000.00
    $16,500.00
    $26,000.00


    Attached Files:

    Tags:
  2. ProPDF

    ProPDF Member

    334
    105
    43
    Jan 8, 2015
    Chicago
    Holiday bump....stop handing cutting your decals and buy this thing. Makes boxes too!! Ready to ship!! Make an offer

    • Like Like x 1
  3. PrintEquipmentDeals

    PrintEquipmentDeals Printing Equipment for Less!!!

    147
    13
    18
    Dec 17, 2018
    Texas
    still available?
