Magenta Head missing half on test print?

Discussion in 'Roland' started by SARBaltimore, Aug 24, 2015.

  1. SARBaltimore

    SARBaltimore New Member

    4
    0
    0
    Aug 24, 2015

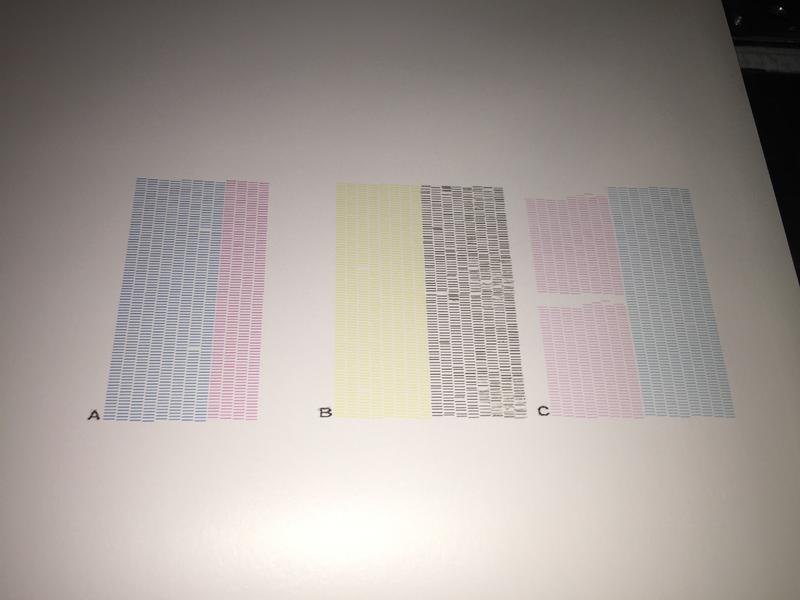

    Hi, all! Hope you can help. I'm running an XC-540, and when I run a test print, everything looks normal except that half of the magenta pattern just doesn't print. Anyone seen this before? Thanks!

    [​IMG]


    Attached Files:

  2. HDvinyl

    HDvinyl Trump 2020

    2,456
    302
    83
    Nov 20, 2008
    halfway house.
    Everything else looks normal?? Soak your heads.

    • Like Like x 1
  3. SARBaltimore

    SARBaltimore New Member

    4
    0
    0
    Aug 24, 2015
    Normal enough. My concern right now is the magenta head.

  4. Ragnabrok

    Ragnabrok Member

    456
    3
    18
    Jul 28, 2010
    Winnipeg
    check the magenta ink cartridges, sometimes they empty out, but don't trigger the ink empty sensor. The only other things that can control 1/2 a head are the dampers, or the ink line. Experience says probably a damper. Also thats a decent chunk missing from the light magenta, doesn't that cause banding?

  5. player

    player Major Contributor

    4,433
    69
    48
    Apr 24, 2006
    Toronto
    Captops could be bad as well. The light magenta is certainly drying out from a poor seal on one end. The second black is looking pretty rough as well.

  6. Stormyj

    Stormyj Member

    419
    2
    18
    Jan 20, 2014
    NW Indiana
    Im not sure what everyone one is talking about. Your missing the entire right side of your print head. I would say there is an electrical issue. Half your print head is not firing, so either your board on your head is damaged, the cable is damaged, or something else electrical. Turn off your machine and disconnect power, then switch cables with another know working print head and see if the problem follows it. If it does, then cable problem, if not, then perhaps its time for a new head.

  7. Chad

    Chad Member

    27
    0
    1
    Jan 20, 2005
    Great white nirth
    simple first

    First pull the front cover off, then the chrome cover then the grey plastic cover on the print head carriage. Check the ink line and make sure there is ink going to the head. No, pull black cover off under carriage and use a syringe and disconnect the cap hose from the pump. See if you can draw ink through when parked. Yes then do a test print and remove the cover switch, when head stops quickly put cleaning solution on cap station. Push cover switch back on and let head park. Do a normal cleaning a couple of times and it should come back. If you can't pull ink through the tube go into maintenance mode and pull cap off (spring loaded) and see if tube is plugged with ink. I have had this printer going on 9 years and have never had issues with ribbons or circuit boards, always a capping station or tubes plugged or ink cartridge
    if you are out of ink a couple of normal cleans with the solution will bring it back.

  8. JulieS

    JulieS Member

    47
    3
    8
    Jan 15, 2011
    Columbia, SC
    My XC-540 now has this problem (half of the magenta test print is missing), and I'm wondering what you guys' conclusion was...is this more likely to be an electrical problem? It happened all of a sudden, mid-print. I've done cleanings and suctioned the black ink tube with a syringe (I get ink that way, no problem). But I don't see ink going through the clear tube when I do a cleaning. Is this something I might be able to repair? My repair guy is on vacation this week :-(

  9. VanderJ

    VanderJ Merchant Member - Printer Parts and Sevice

    3,113
    470
    83
    Aug 2, 2011
    Denver, CO
    1 channel missing on a DX4 head is usually ink flow but there are some rare instances where it could be electrical. See below for a workflow of how I diagnose these types of issues:

    1. Check the cartridges to make sure they haven't drawn empty but failed to flag the machine as such. If the machine thinks there is still ink in the cartridge when there is not, it will pull back on the system and prevent a channel from firing.

    2. Clean all maintenance parts, bottom of the head and flush waste tubes. If the maintenance parts aren't clean or the tubes are clogged, it will cause random drop out. Clean the area on the bottom of the head where the cap normally meets up and avoid the nozzle area. Ink build up and break the seal with the cap top.

    3. Test the seal of the cap top by capping the head, hooking a syringe up to the cap tube directly where the pump usually connects, and then pull the syringe. You should feel resistance and then ink should flow shortly after. If you pull straight air, the cap top is most likely in need of changing. If you pull and get a ton resistance but no ink, either the head or the cap top is clogged. In your case the head probably isn't so it would most likely be the cap top. At the end of the day if the cap top is older than 1 year, replace it. Once you know for sure that the cap top is sealing and the pump tubes aren't clogged, it's time to look at the dampers.

    4. If the dampers are over a year old, I change them no matter what. If they are newer, I would just change the one on the channel you are having issues with along with the o-ring. They are cheap enough that it is worth swapping it out just to rule that out. Hook a syringe to the bottom of the new damper where it normally connects to the head and pull. You should feel resistance and the clear plastic on the side should crush down. Ink may not flow immediately into the damper depending on how far back it receded and it could take many pulls to get ink to it depending on the syringe size and how far back the ink is. Once you see ink flow into the damper and fill the very bottom of it, disconnect the syringe. What should happen is the ink stays in the ink line and the damper will start to naturally fill it self to about half full but usually a little lower at first. Now you can run a cleaning cycle and the magenta should show back up. If not, something else is going on.

    5. Take the damper from the left side of the magenta and swap it with the right. If the right side continues to fire and the left doesn't. You probably either have a broken manifold or an electrical issue. If the left side stops and the right side fires, the head should be fine but there is some sort of other ink flow issue happening which means you will have to start looking deeper for air leaks etc.

    Also: Just make sure there are no major kinks in the ink line which could be introducing air to the system.

    • Like Like x 1
  10. JulieS

    JulieS Member

    47
    3
    8
    Jan 15, 2011
    Columbia, SC
    Thanks very much!

  11. JulieS

    JulieS Member

    47
    3
    8
    Jan 15, 2011
    Columbia, SC
    VanderJ, I've replaced a damper, but I think the syringe I have is too big. I'm not able to attach it well enough to get much suction, so I haven't been able to pull much ink into the damper. Is the machine going to be ok if I just put everything back together and leave it until I can go find a smaller syringe? Or do I need to be concerned about the head drying out?

  12. VanderJ

    VanderJ Merchant Member - Printer Parts and Sevice

    3,113
    470
    83
    Aug 2, 2011
    Denver, CO
    You should be fine for a little while. You can still let the machine run auto cleanings etc. Nothing should be damaged by doing so.

    • Like Like x 1
  13. JulieS

    JulieS Member

    47
    3
    8
    Jan 15, 2011
    Columbia, SC
    Changing the damper corresponding to the missing left side made no difference. Then I tried switching the new left-side damper and the old right-side damper, with the result that NONE of the magenta would print. That seems like a strange result...unless my new damper is defective?? Does that make any sense at all?
    I really appreciate the advice! Won't be able to get an expert in here until Monday.

  14. HDvinyl

    HDvinyl Trump 2020

    2,456
    302
    83
    Nov 20, 2008
    halfway house.
    Did you end up getting a smaller syringe? You need to pull the ink through.

  15. JulieS

    JulieS Member

    47
    3
    8
    Jan 15, 2011
    Columbia, SC
    Yes, I was able to pull the ink :)

  16. papabud

    papabud Lone Wolf

    633
    138
    43
    Mar 7, 2016
    Toledo, OH
    did you replace the small o-ring on it. could an o-ring be stuck in the hole?

  17. JulieS

    JulieS Member

    47
    3
    8
    Jan 15, 2011
    Columbia, SC
    I checked...nothing stuck in the hole. We've decided to wait until our repair guy can come. Decided it's likely the head out.

  18. papabud

    papabud Lone Wolf

    633
    138
    43
    Mar 7, 2016
    Toledo, OH
    good call to wait. sometimes i would rather wait than to make a problem worst.,
    keep us posted

  19. JaySea20

    JaySea20 Member

    37
    11
    8
    Mar 30, 2014
    Bossier City, LA
    When mine did this, it was the plastic manifold on the head. The one the dampers connect to. Had a crack in it. Easy cheap fix
