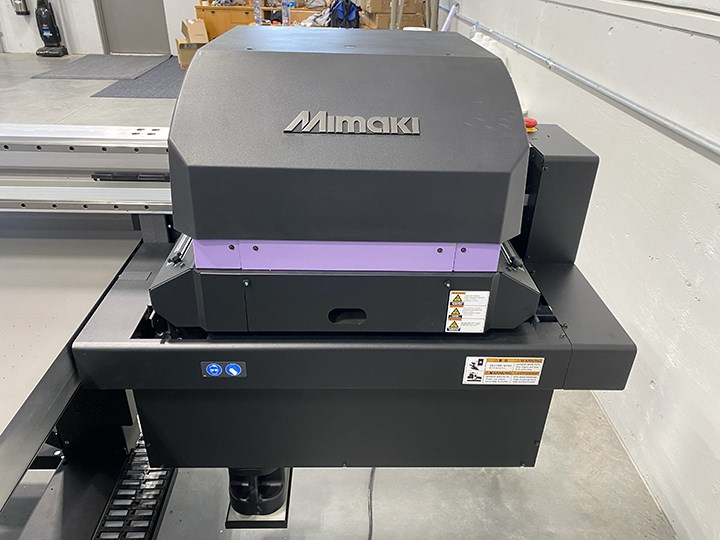

| Print system | On-demand piezo (3 printheads in a staggered configuration) |
| Max print area | 98.4” W x 51.1” L (2500 x 1300 mm) |
| Media thickness | 1.96 in (50 mm) |
| Print resolutions | 300, 450, 600, 900, 1,200dpi |
| Max print speed | 376 SqFt/Hr (35 SqM/Hr) / in draft mode |
| Absolute accuracy | +/- 0.01” (0.3 mm) or +/- 3% from specified print distance |
| Repeatability | +/- 0.008” (0.2 mm) or +/- 1% from specified print distance |

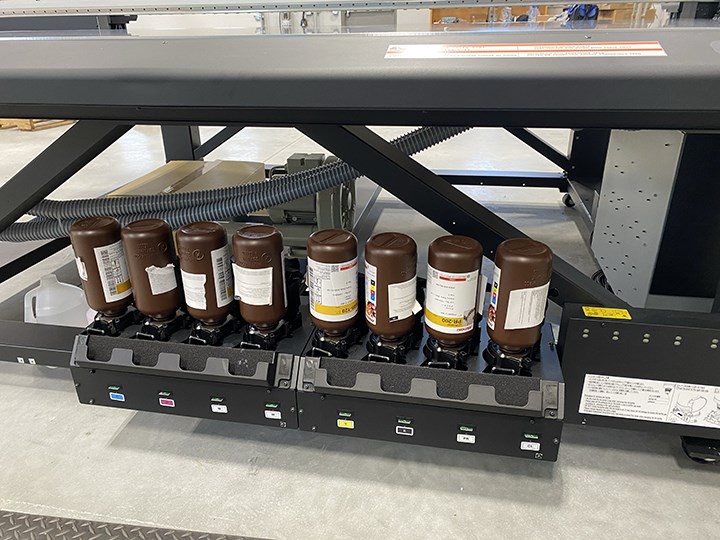

| Ink type | Mimaki LUS-150 UV ink: For balanced adhesion and flexibility- C, M, Y, K, Lc, Lm, W, Clear Mimaki LUS-120: For flexibility and scratch resistance- C, M, Y, K, W, ClearMimaki LUS-350: Up to 350% elongation for thermoforming applications- C, M, Y, K, W, Clear Mimaki LH100 UV ink: For high scratch and chemical resistance- C, M, Y, K, W, Clear* Mimaki PR-200 UV Primer |
| Ink capacity | 1-liter bottle, 250 mL bottle |
| Flatbed table | Vacuum system (standard), 2 user-selectable zones Layout pins and lonizer (standard) |
| Certifications | VCCI Class A, FCC Class A, ETL UL 60950 CE Marking (EMC, Low voltage, Machinery directive) CB Report, RoHS |
| Operational environment | Temp: 59˚ – 86˚ F (15˚ – 30˚ C) |
| Max media weight | 110.2 lb / SqFt (250kg/SqM) |
| Interface | USB 2.0, Ethernet |
