Need Help Mottling

Discussion in 'Epson' started by JonDood, Oct 23, 2019.

  1. JonDood

    JonDood New Member

    Oct 8, 2019
    Hi guys,

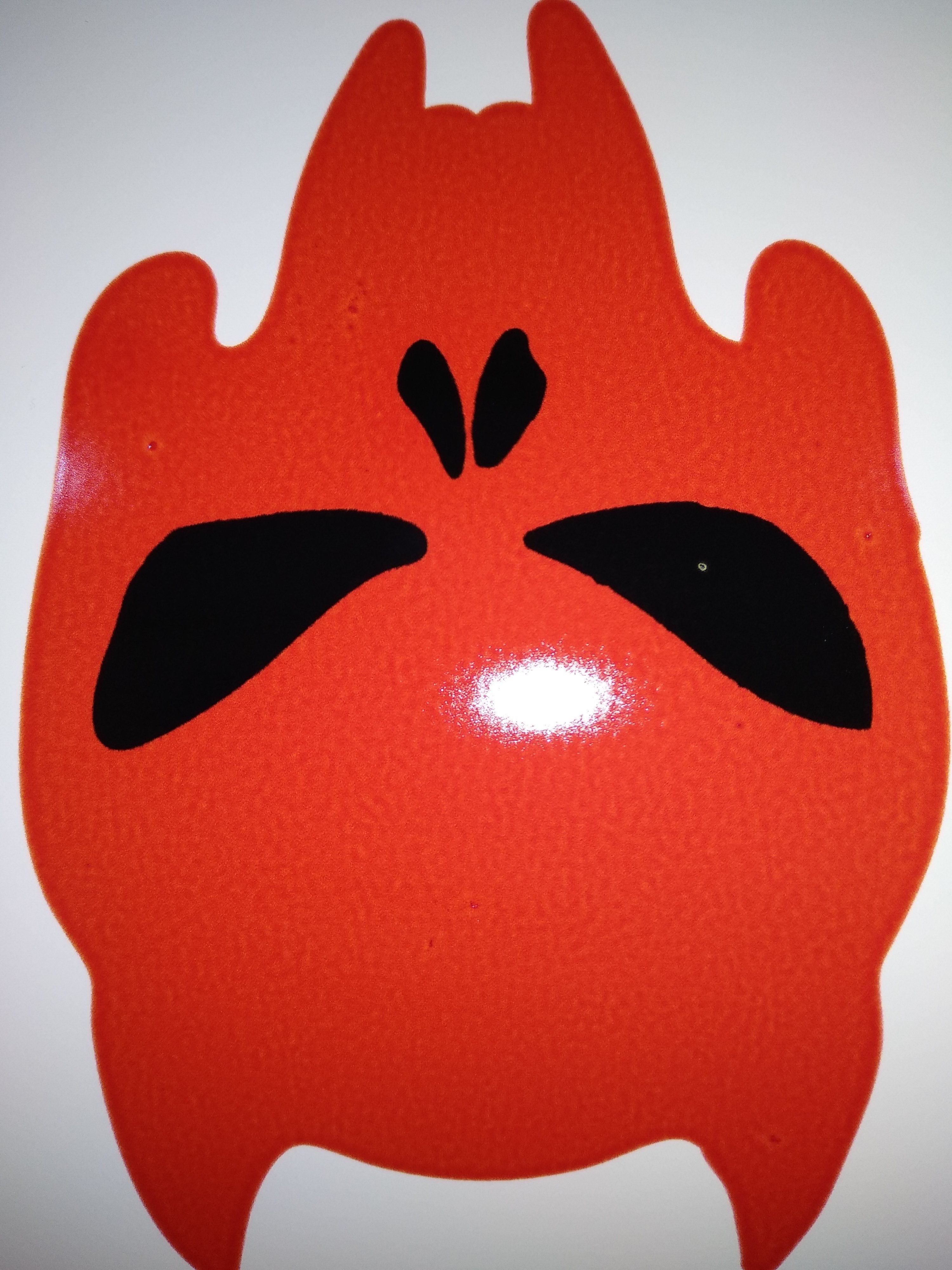

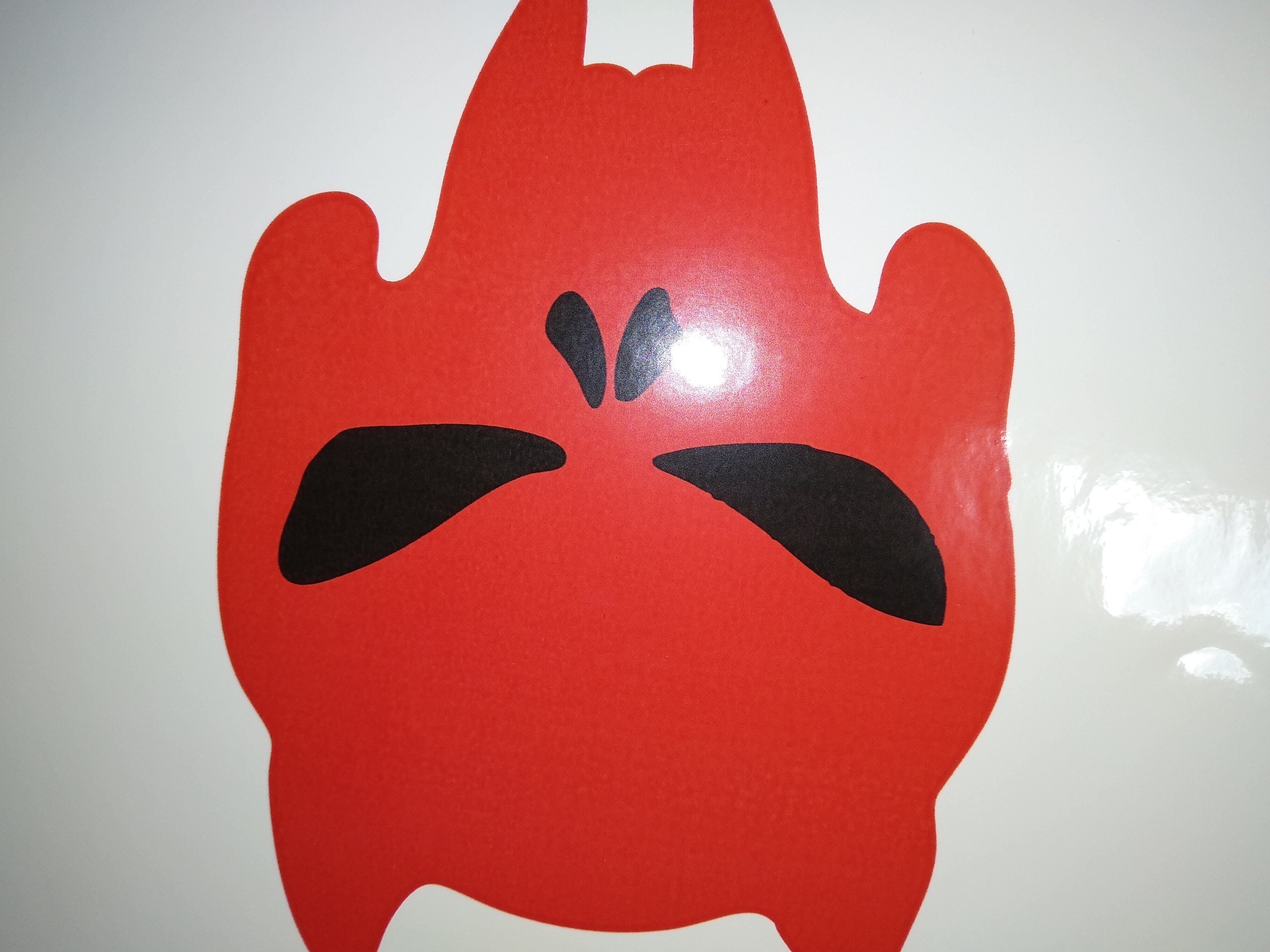

    We're running a brand new Epson 40600 we bought earlier this month with Onyx19. We upgraded from an old Xerox wide-format which we were using in the exact same environment (though we were using Caldera as our rip) and we're experiencing mottling on higher pass rates and grainy prints if we lower the passes. We're printing onto the exact same old vinyl aswell as new media right out of the box. Our supplier suggested that the media was at fault and sent us test media, which went onto the Epson as soon as it arrived and gave us the same results.

    Any suggestions/anybody else out there with the same issue?

    Attached Files:

  2. Lindsey

    Lindsey Not A New Member

    Jan 17, 2013
    I've seen mottling like this, especially on clear vinyls, when the heat settings are not ideal. You could try increasing the temperature on the heater/dryer.

    Do you get the same results if you choose a different media profile from the rip software? I'd try a few small tests using alternate profiles.
    • Agree Agree x 1
  3. unclebun

    unclebun Very Active Member

    That looks like overinking. You'll need to set up profiles for the media.
    • Agree Agree x 3
  4. Joe House

    Joe House Active Member

    Feb 5, 2004
    Profiles and temperature settings can both affect this and both would be dependent on the environment, so canned profiles from Onyx or Epson may not be the best for your particular shop.

    Good luck
  5. Andy D

    Andy D Very Active Member

    Oct 20, 2014
    Hattiesburg, MS
    Agree 100% Too much ink, adjust your ink limits, it's easy and you don't have to worry about ruining prints when printed vinyl touches printed vinyl.
  6. Evan Gillette

    Evan Gillette Member

    Dec 5, 2018
    As others have mentioned it looks like over saturation, I would play around with other profiles, or for sake of verifying you are on the right track, reduce the saturation of all channels and see if you can get it to look any better with the same profile. We are not using onyx so Im not sure what settings you would use to do this.
  7. Andy D

    Andy D Very Active Member

    Oct 20, 2014
    Hattiesburg, MS
    You see the spots where the ink pools around the imperfections of the vinyl? That's what I call "fish eyes", the
    ink is so thick that it pools up around them because it can't dry fast enough.
    Youtube Onyx & setting ink limits, you can adjust them by eye.
    One important thing, don't adjust the original profile, clone it and adjust that.
    • Like Like x 1
