Need help with vinyl cut lettering
- Thread starter Pideas
- Start date
Cross Signs
We Make Them Hot and Fresh Everyday
Weld

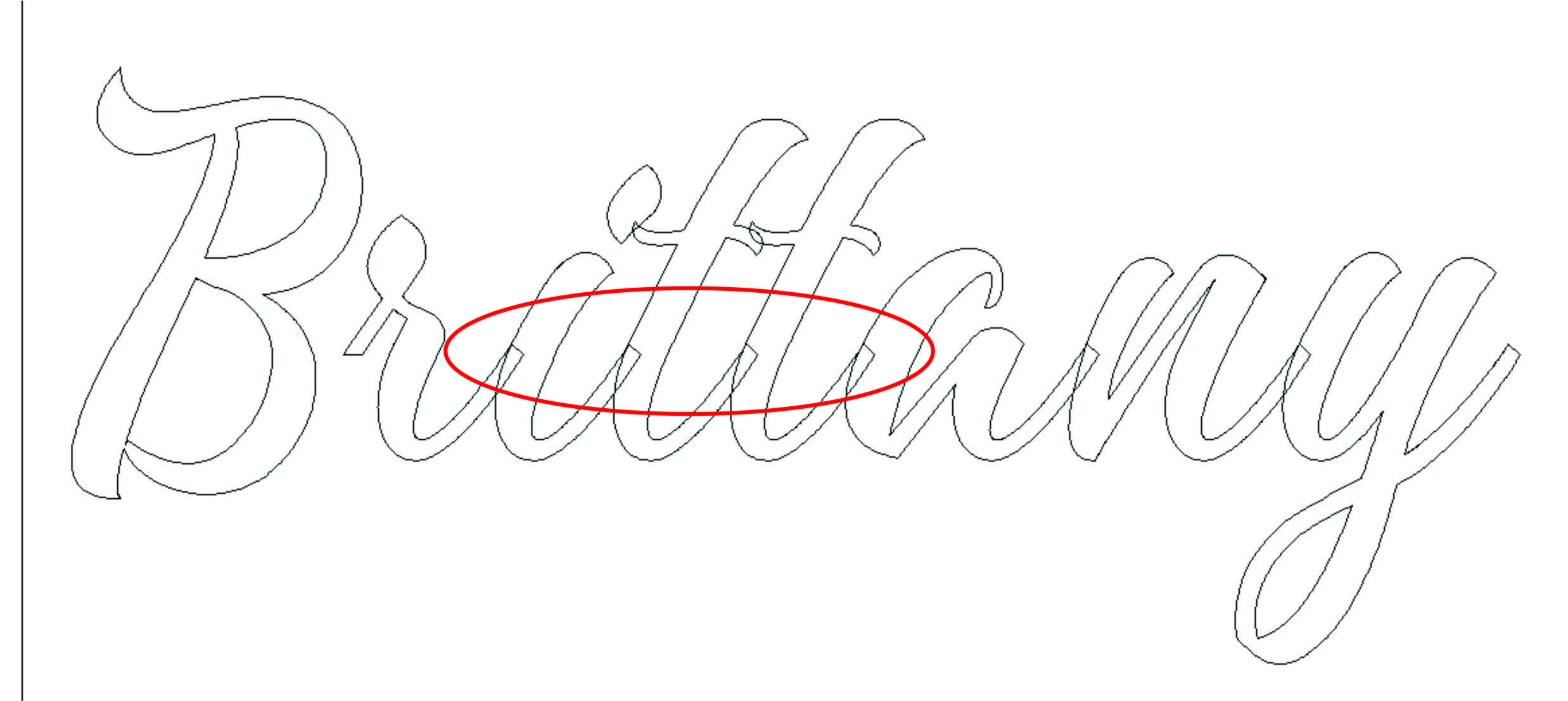

I tried them all and it didn't work. I tried Combine, Weld, Trim, Intersect, Simplify. I get the same result when I pull it up on the Summa Winplot window.
After typing out the name, I had to convert the font into curves. This allows me to get to the Combine, weld, trim, intersect functions. Am I doing this wrong?
After typing out the name, I had to convert the font into curves. This allows me to get to the Combine, weld, trim, intersect functions. Am I doing this wrong?
Black Star
Not A New Member
First you need to "Break Artistic Text" from the "Arrange" drop down menu. Grab all of the text using the Pick Took. Then you need to "Convert to Curves" which is also in the "Arrange" drop down menu. Grab all of the text again and then click weld.
In Corel 2020 (not sure which version you are using - I've been using Corel sign V3) it's under the Object menu, scroll down to shaping then use the "weld" command.
I apparently never uninstalled Corel X6 and its under the "arrange" menu then down to shaping and weld. I tried it both before and after converting to curves and it's fine. If you have an older version of Corel, it should be the same as X6.
Did you accidentally lock the object because that will keep it from being altered.
I apparently never uninstalled Corel X6 and its under the "arrange" menu then down to shaping and weld. I tried it both before and after converting to curves and it's fine. If you have an older version of Corel, it should be the same as X6.
Did you accidentally lock the object because that will keep it from being altered.
I'm using CoreDraw X8. It was under Object for me. However, the Weld feature did not work for me. I got the same result as before.
*Thanks everyone for the quick response. I figure this would be easy to figure out.
Boudica
Back to "educational purposes"
Are you selecting all of the artwork? Try the direct selection tool, and select just the areas that over lap, then combine (weld)
Notarealsignguy
Arial - it's almost helvetica
Select text > object menu > break artistic text
Select all of that > object menu > shaping flyout > weld
Select all of that > object menu > shaping flyout > weld
This worked! Thanks for everyones' help.
'Notarealsignguy' solution did not require that I convert the fonts to curves. When I tried it before, I had to convert the font to curves before I got the Weld option. Since I did not convert the fonts to curves, the welding option worked.
rvolkers
New Member
How exactly, is this advise different than something you JUST disagreed with?
