1638uh parts manual

J

jeffkics

Sign Says
Does anyone have a 1638 exploded view parts manual? The media lever on the right side of my machine seams to not be working after exploration it doesnt look right and the spring clip is disconnected but i cant figure out how it goes back together. does anyone have a picture of tis assembly or an exploded view diagram of how it is supposed to be?

thank you

H

henryp

New Member
jeffkics said:
Does anyone have a 1638 exploded view parts manual? The media lever on the right side of my machine seams to not be working after exploration it doesnt look right and the spring clip is disconnected but i cant figure out how it goes back together. does anyone have a picture of tis assembly or an exploded view diagram of how it is supposed to be?

thank you
Click to expand...

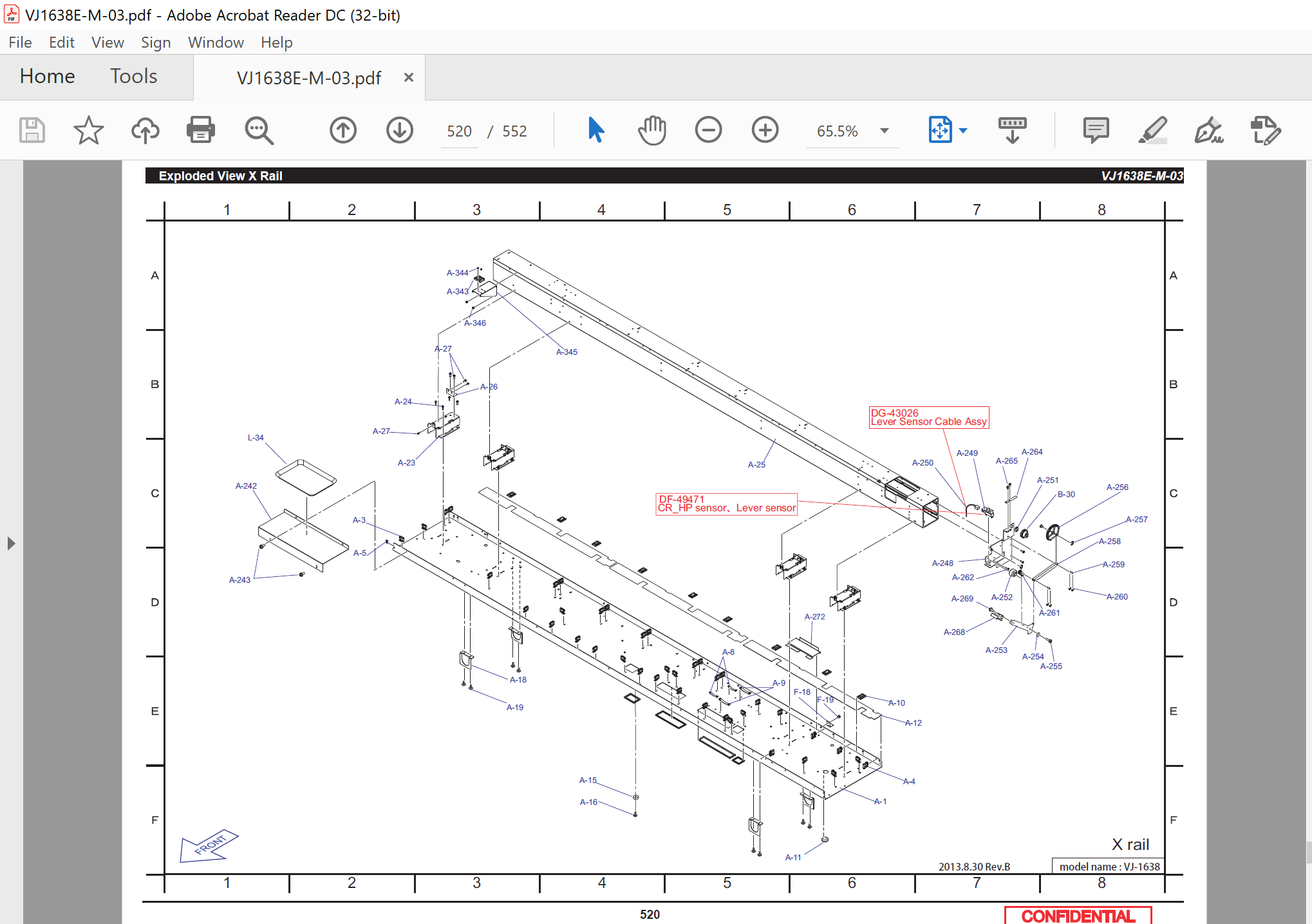

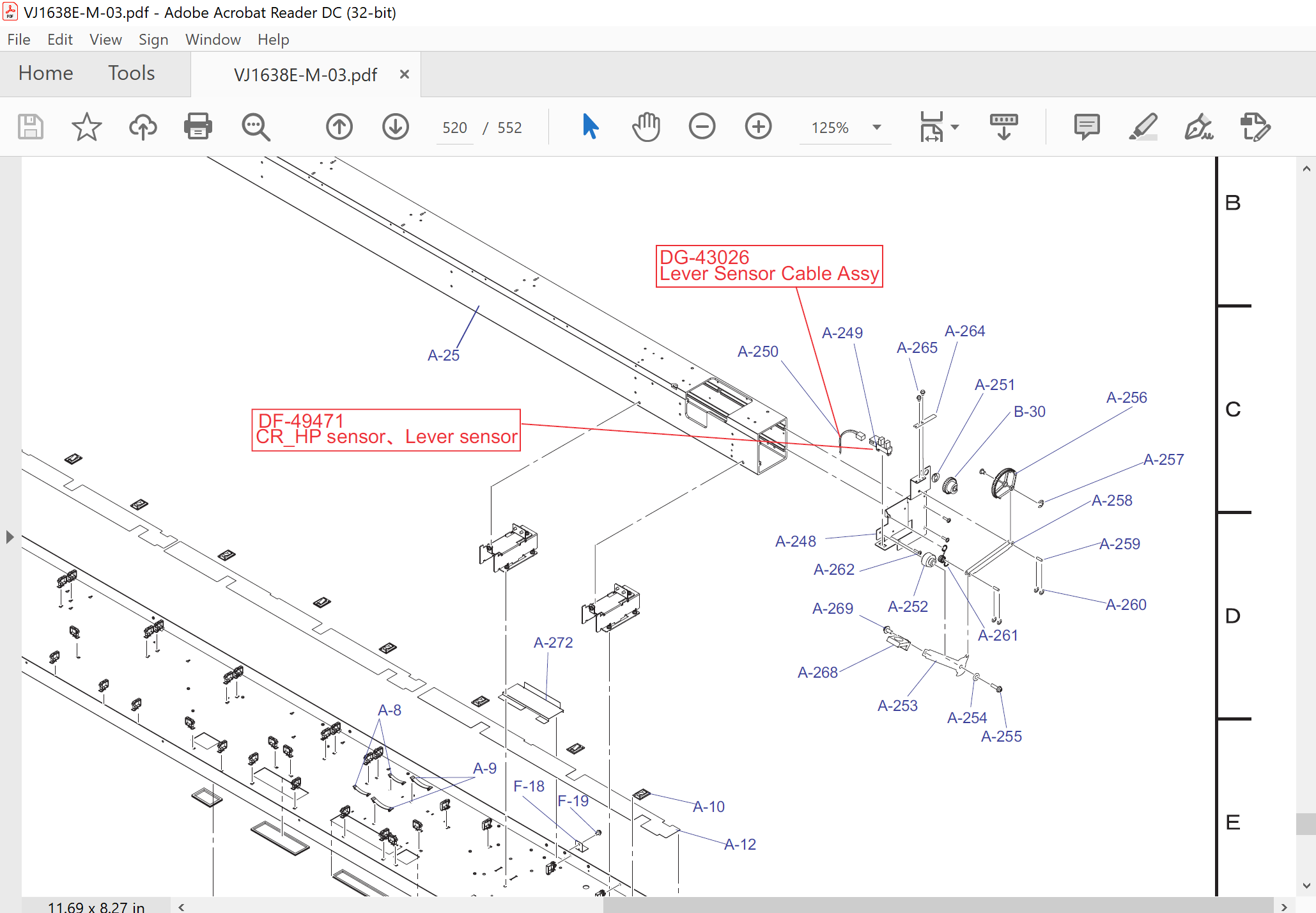

See attached screenshots
