Need Help Flexi + Mimaki CG160FXII help needed!

[facundo]

Hello everyone!
I'm running into some learning issues at the moment, hopefully someone can help!

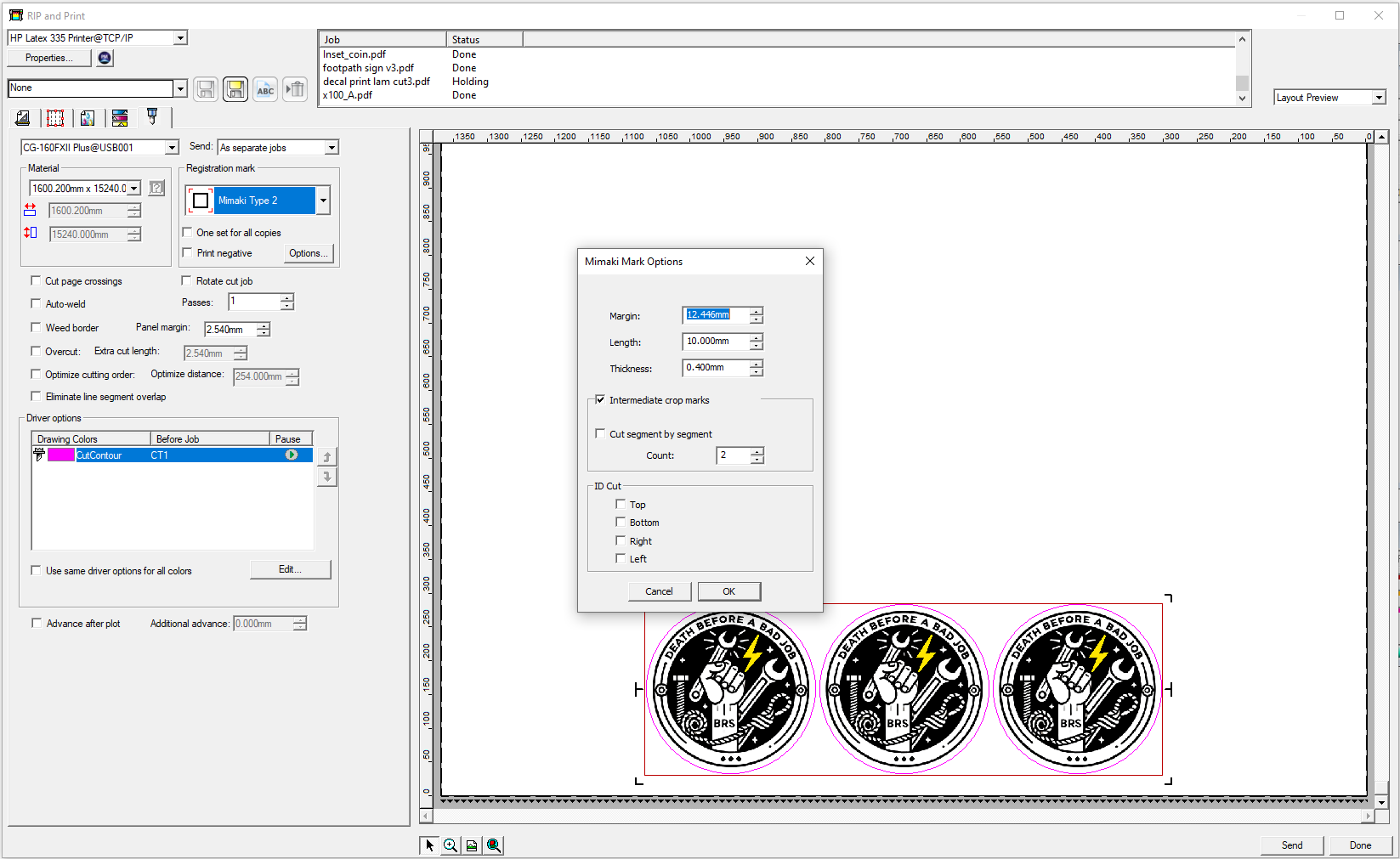

I'm using Flexi to print from an HP335 and cut on a Mimaki CG160FXII, I'll upload a screenshot of Flexi showing the cutting setup, using Crop marks Type 2.

Print goes all good, then i'm taking the print to the cutter and I think here is where i'm doing something wrong.
I load the print in and position the blade on the marks a per manual, hit remote, and then go back to Production Manager (Flexi)

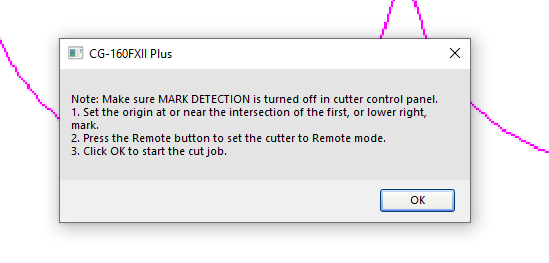

and hit Send, i've got a pop up showing the second pic attached, then I hit OK and nothing happens.

Reason i'm doing it this way is because i need the Intermediate crop marks, as i'm doing long print + cut files.

Any ideas how to get it going?
Thanks everyone!



[facundo]

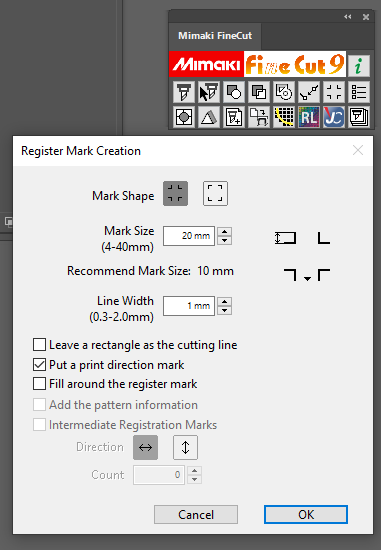

Also, anybody know why the "Intermediate Reg marks" is greyed out? This is FineCut9 plugin on Illustrator!
Thanks!



[Solventinkjet]

You need to set the origin on the bottom right crop mark using the mark detect LED and not the blade. Make sure your mark detect settings are turned on on the plotter itself. If you just got the cutter, it defaults to off. Once the mark detect settings are turned on, anytime you're in local mode on the main screen, hit the End key and the red LED will turn on for you to move it to the first crop mark and hit Enter. Also, make sure you put it in the corner of the crop mark but don't touch the mark itself with the red dot. It fails sometimes if you do that.

The continuous mark is grayed out because I believe that model doesn't support it.
