Mutoh Falcon Outdoor Jr.. Black head out of line HELP!!!

xray

New Member
Hi Everybody,

I replaced the heads in my mutoh falcon outdoor jr.

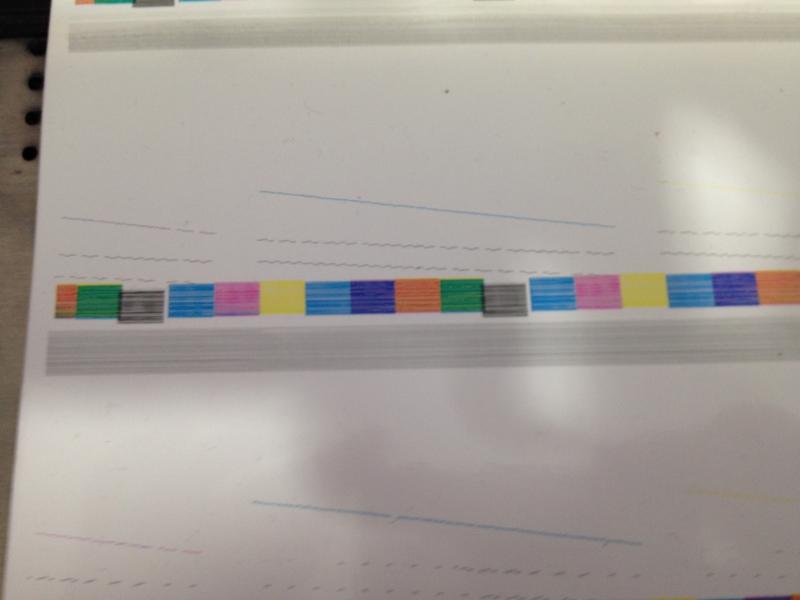

The black head is way off in the nozzle check. It looks like it needs to be pushed back but I don't see where to do it.

Any help you can offer would be great!



hapycmpr

New Member
Outdoor Jr

In the manual, start with section 7.2.3 and progress to Page 160. There are screws that hold down a graduated wedge that push the head left or right or forward and back once the head hold down screw is loose. Tedious time consuming process. I remember those days before I bought my Roland.
-James-
