My Cut On Decals is Off Graphtec 86-130

G

goodrum64

New Member
We have a Graphtec 86-130 plotter. When we print a sheet of decals that has maybe 50 decals on the sheet, as it plots it gets more and more off. These are square cut decals.

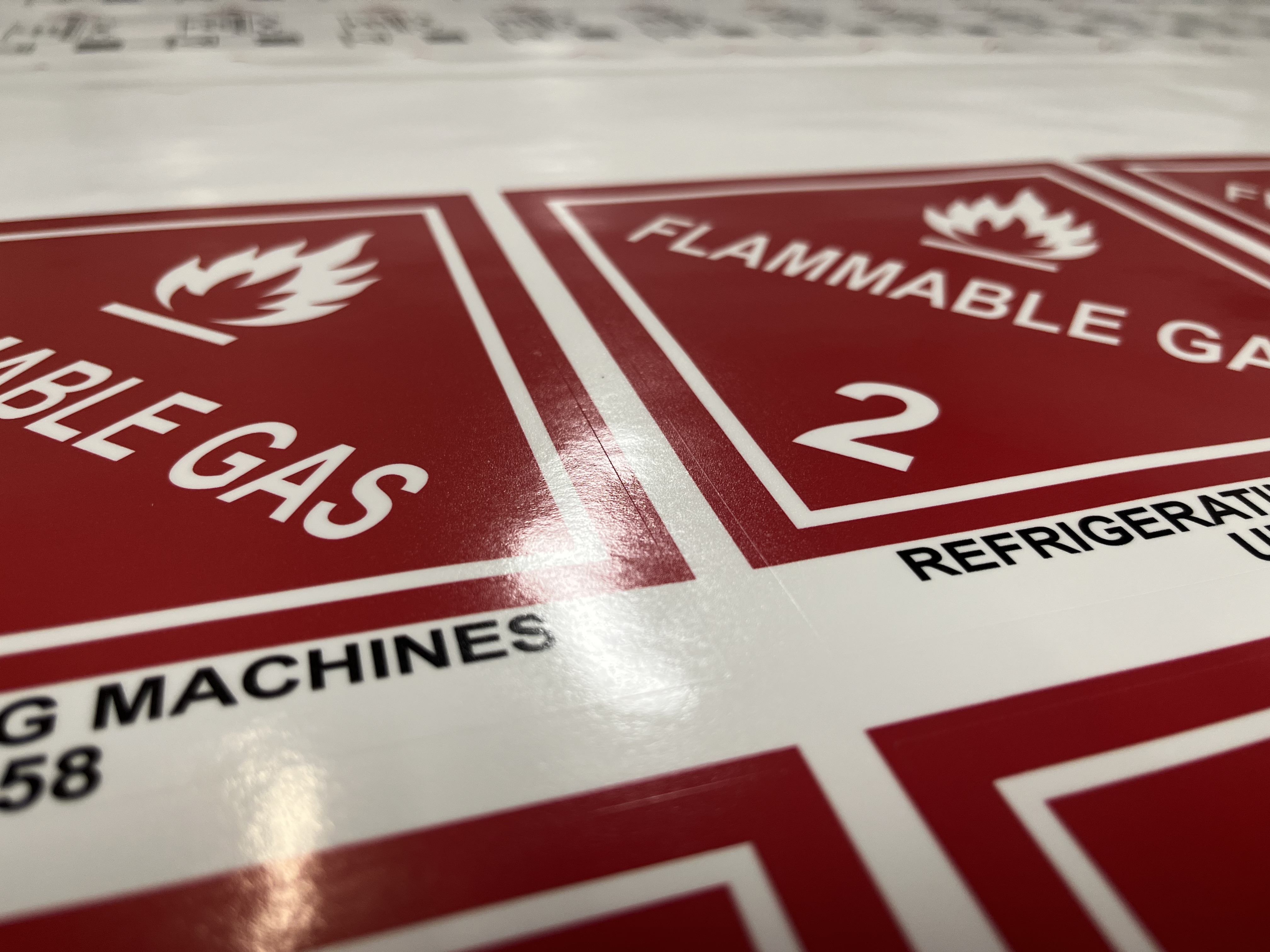

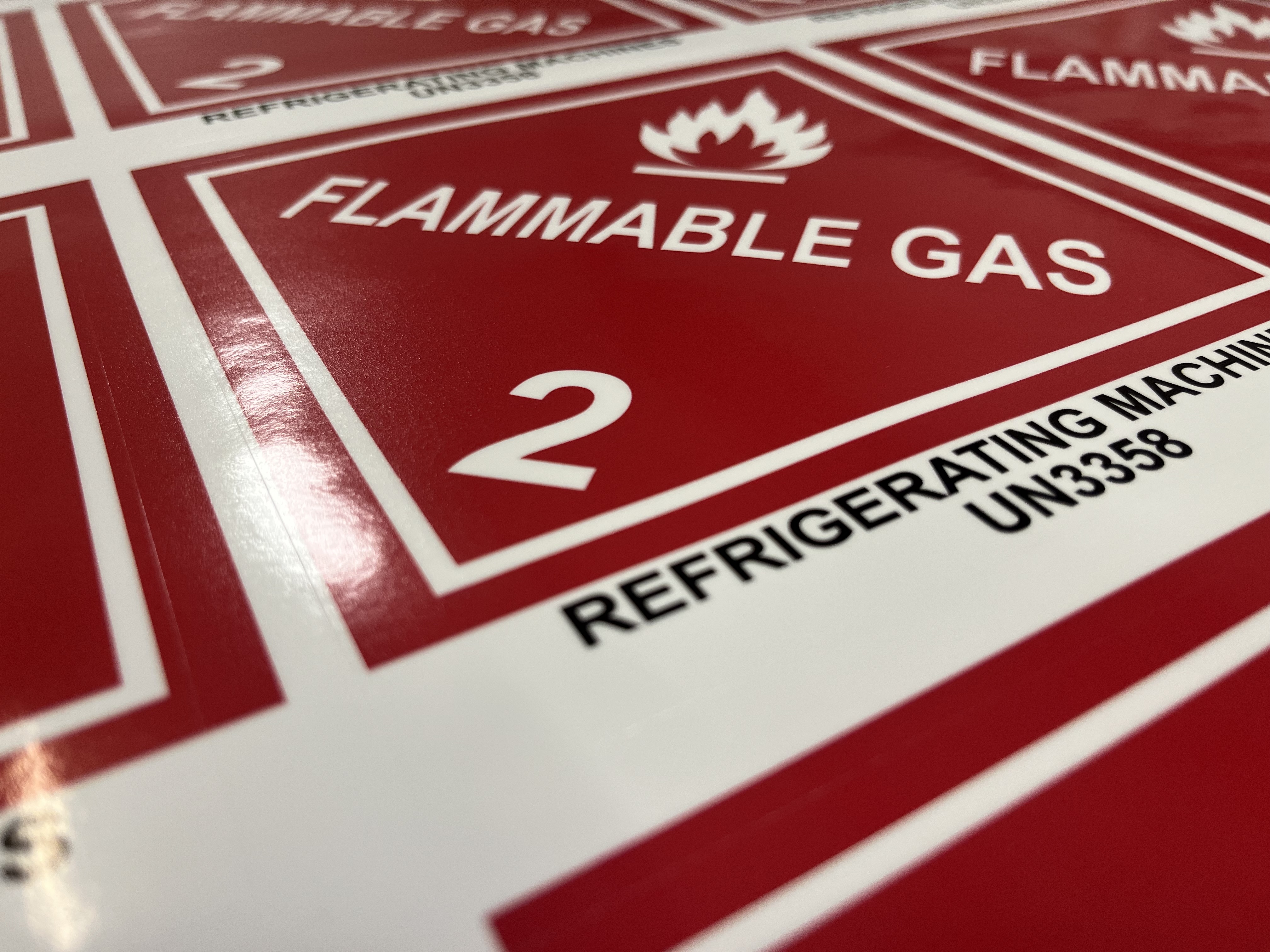

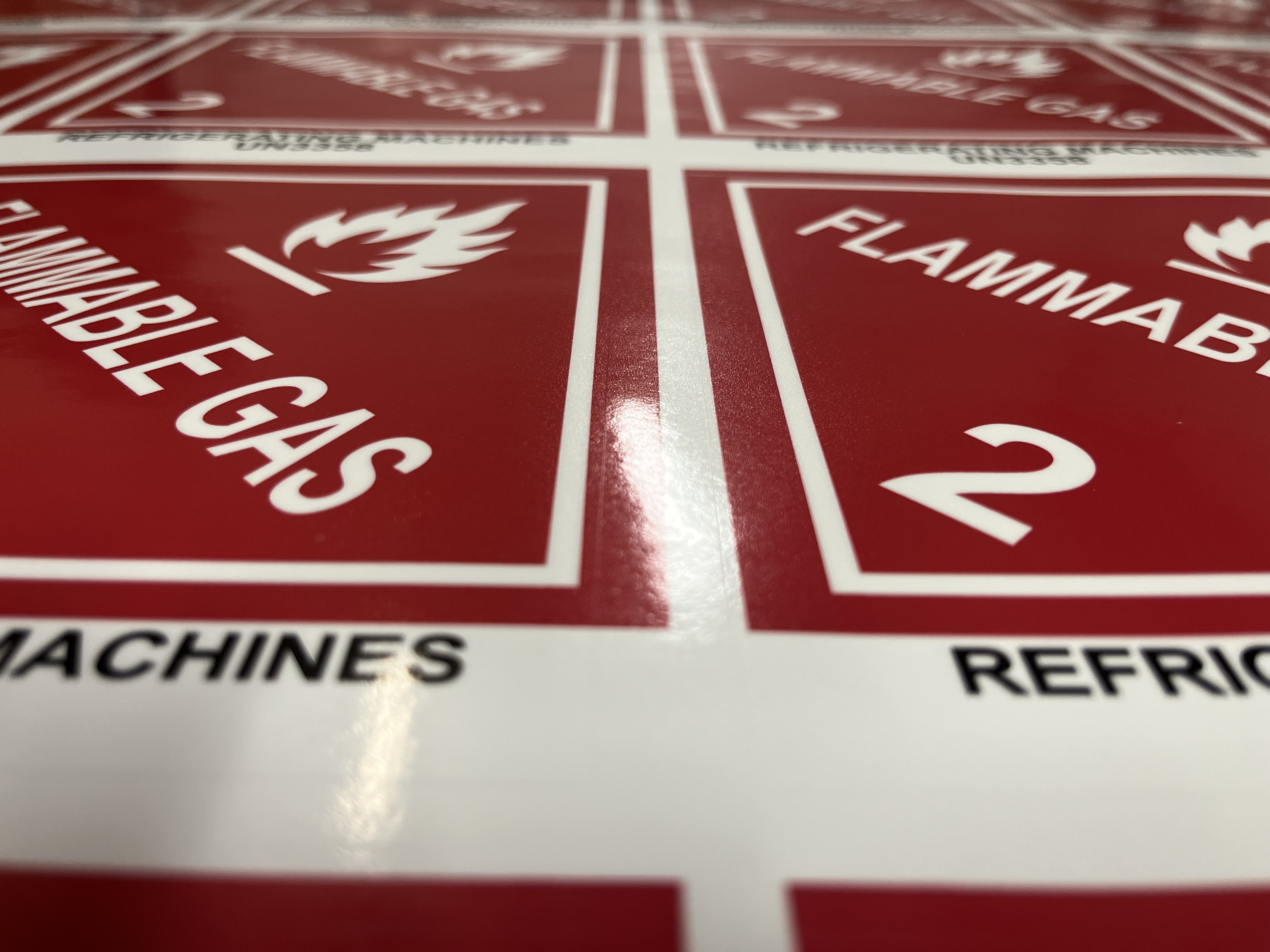

We have done a Sensor Offset Adjustment. Any Ideas would be appreciated. I have attached pictures but it is hard to see what I am talking about. The spacing around the decal
is not the same on all 4 sides. It changes as it continues to plot each row.


Attachments

  • IMG_2814.jpg
    2.7 MB · Views: 34
  • IMG_2815.jpg
    2.8 MB · Views: 24
  • IMG_2816.jpg
    2.7 MB · Views: 24
Precision

Precision

New Member
Check your pinch roller settings on the back of the cutting bar. Our graphtec has 4. The two outside should be set all the way down and the center ones halfway on a 54" sheet.

When our cuts start to wander this is the first thing we check.
