Seal image 6100 ultra laminator pneumatic air diagram

[Sawtooth]

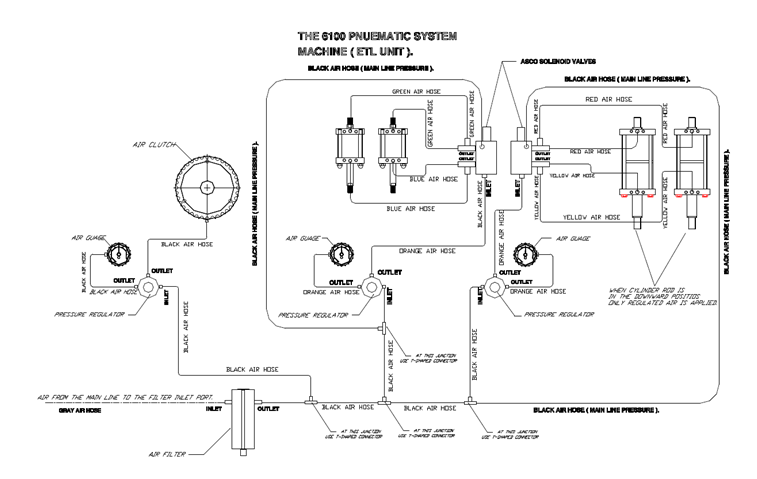

I was wondering if anybody had a schematic for the pneumatic air system on a seal image 6100 ultra laminator even a picture inside both end of the cabinets would help immensely. Thanks so much



[MarkSnelling]



[dypinc]

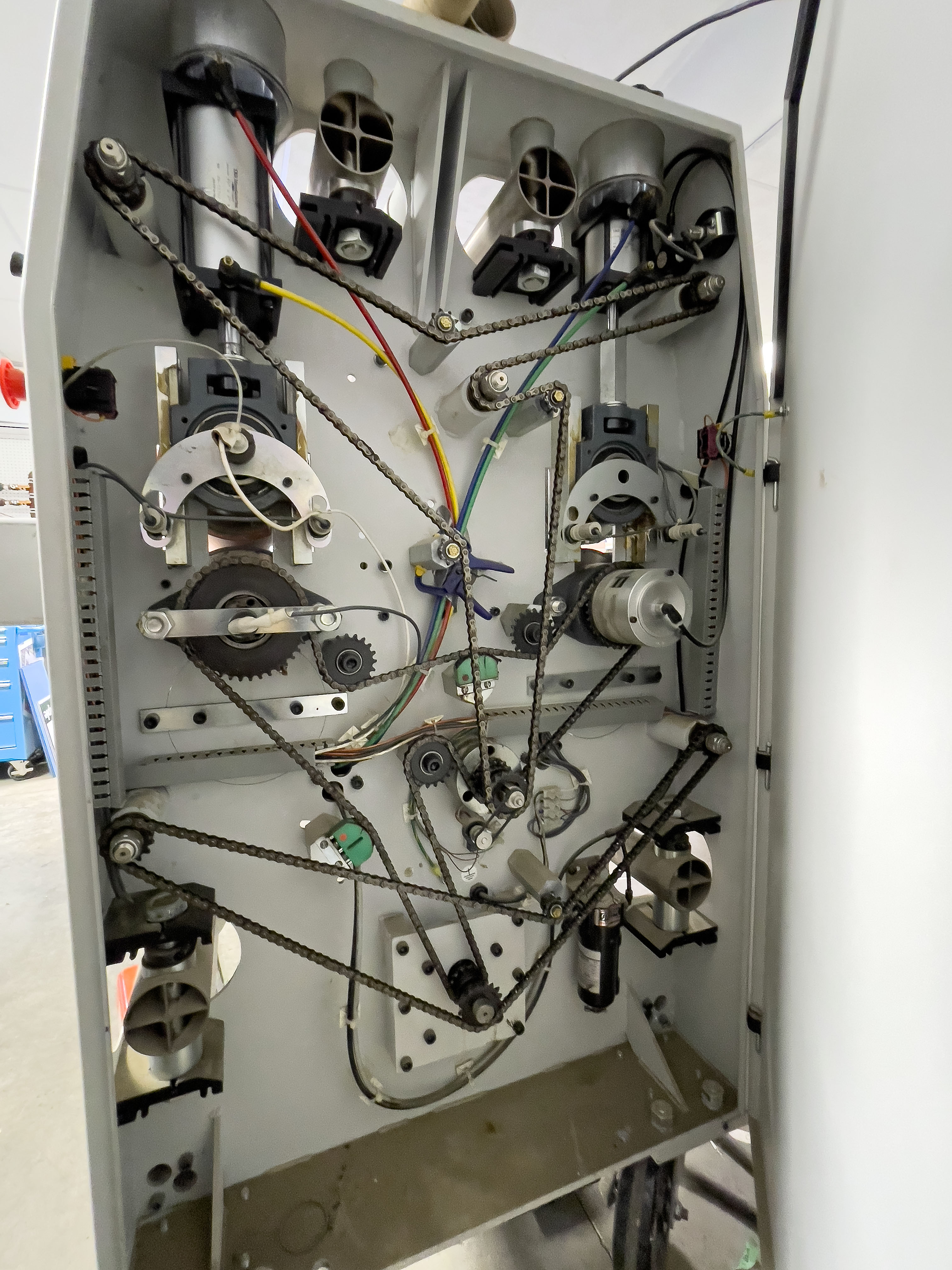

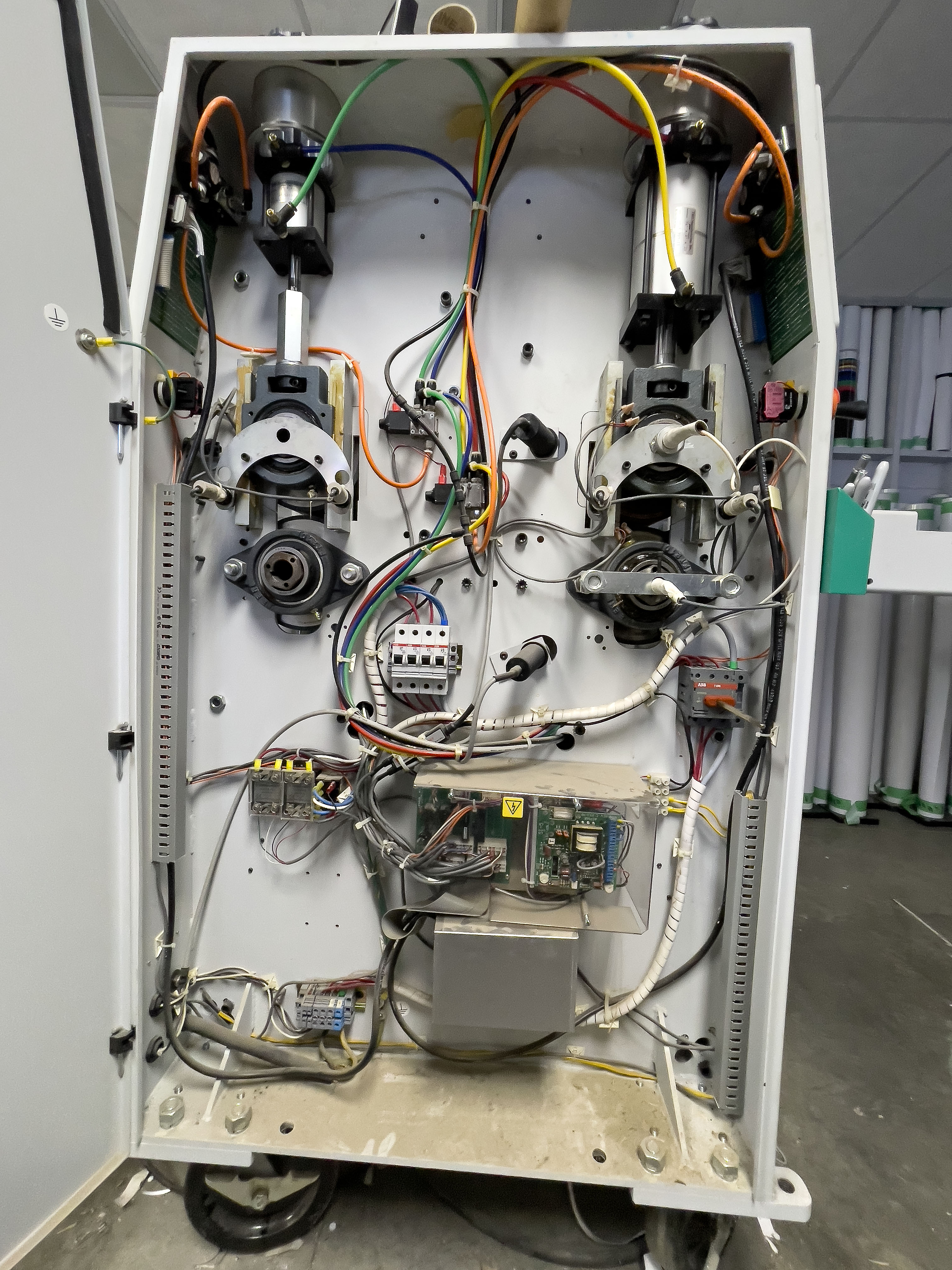

Here are photos of each end.



[Sawtooth]

Thank you so much. This is very helpful. I reallyappreciate such a quick and detailed response.
