2 Summa questions , size of crop mark and blade type ?

Discussion in 'Summa' started by autoexebat, Aug 23, 2020.

  1. autoexebat

    autoexebat Member

    480
    12
    18
    Apr 15, 2010
    USA
    As the title says , I'm just trying to find out what size the Summa cut marks should be ? Somewhere I thought I saw 3mm , but I also saw 10mm as well ?

    Also , will a ROLAND blade fit in the normal Summa drag knife setup ?

    Thanks

    Tags:
  2. Christian @ 2CT Media

    Christian @ 2CT Media Major Contributor

    4,583
    710
    113
    Jun 15, 2009
    Mesa, Arizona
    We use 3mm. No roland blade do not work without adaption.

  3. autoexebat

    autoexebat Member

    480
    12
    18
    Apr 15, 2010
    USA
    3mm ok ,

    Really sucks the Roland blade doesn't work .....I use special blades and now I may be screwed .

  4. Christian @ 2CT Media

    Christian @ 2CT Media Major Contributor

    4,583
    710
    113
    Jun 15, 2009
    Mesa, Arizona
    What special blades do you use?

    • Like Like x 1
  5. autoexebat

    autoexebat Member

    480
    12
    18
    Apr 15, 2010
    USA
    Roland USA-C160

  6. autoexebat

    autoexebat Member

    480
    12
    18
    Apr 15, 2010
    USA
  7. P Wagner

    P Wagner Very Active Member

    1,913
    80
    48
    Aug 16, 2006
    San Diego
  8. autoexebat

    autoexebat Member

    480
    12
    18
    Apr 15, 2010
    USA
    I have bought this as well ,

    Can anyone post what the crop marks should look like ? I made some in Corel , just need to make sure it's correct .

  9. ExpertWideformat

    ExpertWideformat New Member

    11
    3
    3
    Aug 22, 2020
    Colorado
    Hey autoexebat,

    What software are you using to print and cut?

    Usually the RIP will generate the mark for you. Or, you can use the free Summa Software Winplot to generate the marks and cut. You can download a program from Summa's website called Summa Cutter Tools that will install the the plugin for Corel/AI and, if needed, another program called Summa Cutter Control which will allow for updating settings to the plotter from the PC and also act as a barcode server if you're RIP doesn't already support it (this would also depend on which model Summa you have..)

    https://www.summa.com/en/support/software-firmware/

    • Agree Agree x 1
  10. autoexebat

    autoexebat Member

    480
    12
    18
    Apr 15, 2010
    USA
    I'm using Roland Versaworks , but I have a cool toll installed called ECUT . So that will make the 3mm sqares for me and I notice a small arrow as well . I'm hoping that is correct . I will post a picture .

  11. autoexebat

    autoexebat Member

    480
    12
    18
    Apr 15, 2010
    USA

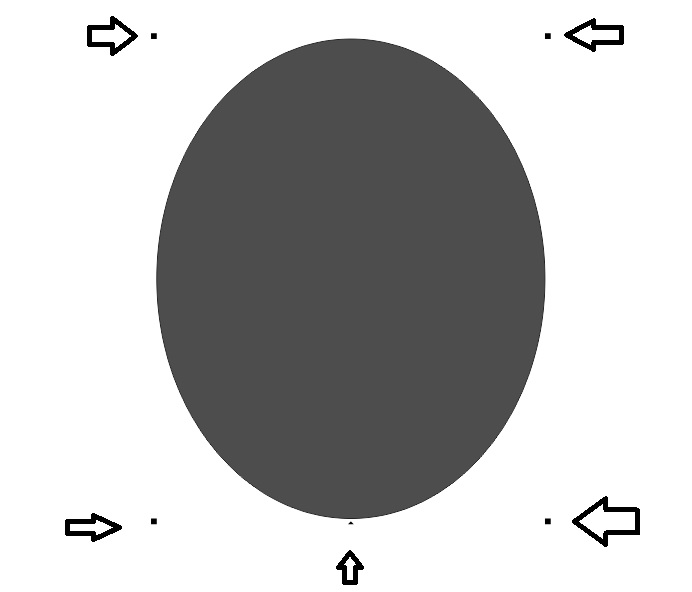

    Here is a picture with the arrows pointing to the crop marks I have made. cm.jpg

  12. autoexebat

    autoexebat Member

    480
    12
    18
    Apr 15, 2010
    USA
    Can anyone verify my picture ? I'm hoping to get a bunch of files setup today .


    Attached Files:

    • cm.jpg
      File size:
      22.1 KB
      Views:
      35
  13. Christian @ 2CT Media

    Christian @ 2CT Media Major Contributor

    4,583
    710
    113
    Jun 15, 2009
    Mesa, Arizona
    Yes that is correct if you are not using opos XY or XY2. Also the Arrow is just to show you the normal feed vs reverse feed.

  14. autoexebat

    autoexebat Member

    480
    12
    18
    Apr 15, 2010
    USA

    Thanks! so in Winplot I just select ( Send to cutter ) ??

    Last edited: Aug 24, 2020
  15. ExpertWideformat

    ExpertWideformat New Member

    11
    3
    3
    Aug 22, 2020
    Colorado
    Winplot would be "Send to Cutter" for normal Cut Vinyl jobs (with no marks). "Send to OPOS Cutter" would be for Print-to-Cut with reg marks. Although I'm not sure how ECUT works, your marks do look correct. The arrow is unnecessary, but would probably help with getting it loaded the proper direction.

  16. autoexebat

    autoexebat Member

    480
    12
    18
    Apr 15, 2010
    USA
    Thanks ! Yes I will be using only for my printed / contour cuts ! Thanks for answering my questions ! Now I just need to wait a few days for it to be delivered .

    ECUT is the best plugin by far for AI and Corel .. the summa plugin for corel doesn't work any longer so that is why I got ecut .

  17. Christian @ 2CT Media

    Christian @ 2CT Media Major Contributor

    4,583
    710
    113
    Jun 15, 2009
    Mesa, Arizona
    The Summa Plugin works perfect for corel? We use it every day.

    • Agree Agree x 1
  18. autoexebat

    autoexebat Member

    480
    12
    18
    Apr 15, 2010
    USA
    FIXED


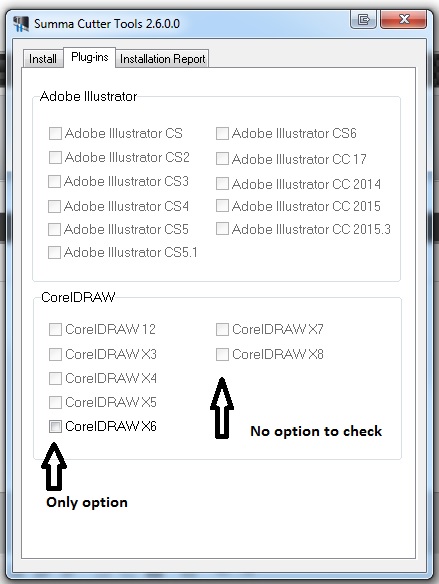

    Attached Files:

    Last edited: Aug 25, 2020
  19. autoexebat

    autoexebat Member

    480
    12
    18
    Apr 15, 2010
    USA
    Got it working , Thanks !
