Alignment Problem!

Discussion in 'Roland' started by pabacker66, Oct 9, 2012.

Tags:
  1. Oct 9, 2012 #1
    pabacker66

    pabacker66 Member

    30
    0
    6
    Oct 5, 2012
    Chapin, SC

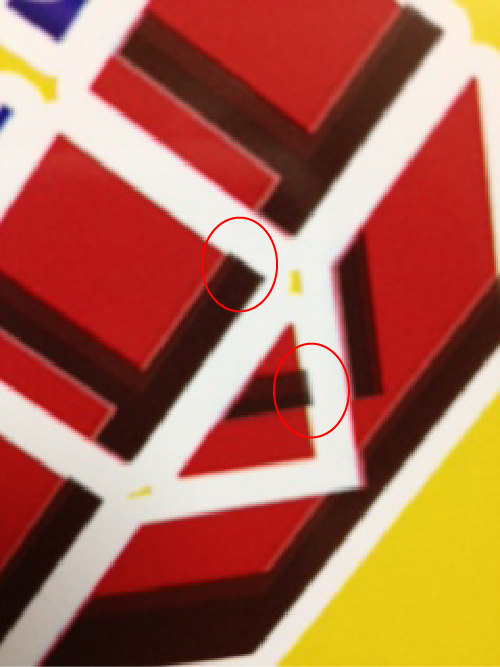

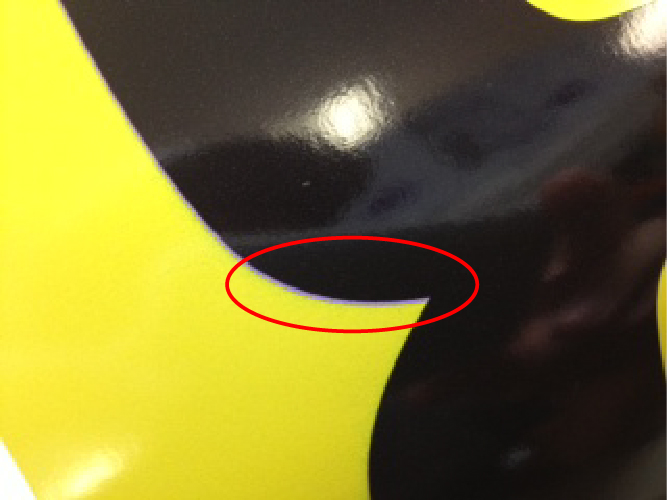

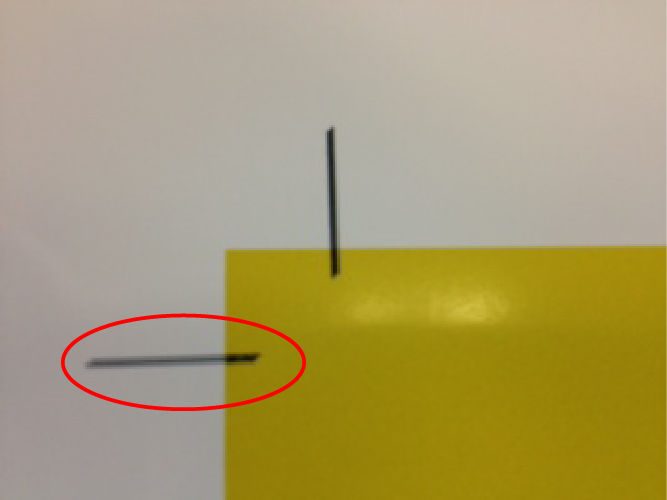

    Hey guys. I replaced my black print head monday and now I am having alignment problems. I have a service manual and I did the head replacement completely by the book. I have since done all the test and alignments I can find and they all show that everything is perfect. But then when I print, it is FAR from perfect. Check out the pics and let me know if you have any advice. PLEASE!


    Attached Files:

    Last edited by a moderator: Oct 9, 2012
    Tags:
  2. Oct 9, 2012 #2
    CS-SignSupply

    CS-SignSupply Very Active Member

    2,290
    3
    38
    Oct 15, 2008
    Lawrenceville GA 30043
    So you did the following head adjustments;

    BIAS - VERTICAL - HORIZONTAL - BIDIRECTIONAL

    ??

    Include a picture of the Test Print.

  3. Oct 9, 2012 #3
    pabacker66

    pabacker66 Member

    30
    0
    6
    Oct 5, 2012
    Chapin, SC
    Yes. I have done all of them and the results look fine

  4. Oct 9, 2012 #4
    CS-SignSupply-TT

    CS-SignSupply-TT Very Active Member

    1,541
    1
    0
    May 31, 2011
    HEY! from HOTlanta

  5. Oct 9, 2012 #5
    pabacker66

    pabacker66 Member

    30
    0
    6
    Oct 5, 2012
    Chapin, SC

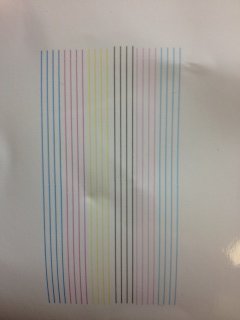

    Here is the result of my bias (after tweaking) Sorry for the quality. I had already thrown it away


    Attached Files:

  6. Oct 9, 2012 #6
    J Hill Designs

    J Hill Designs Major Contributor

    15,549
    15
    0
    Sep 24, 2004

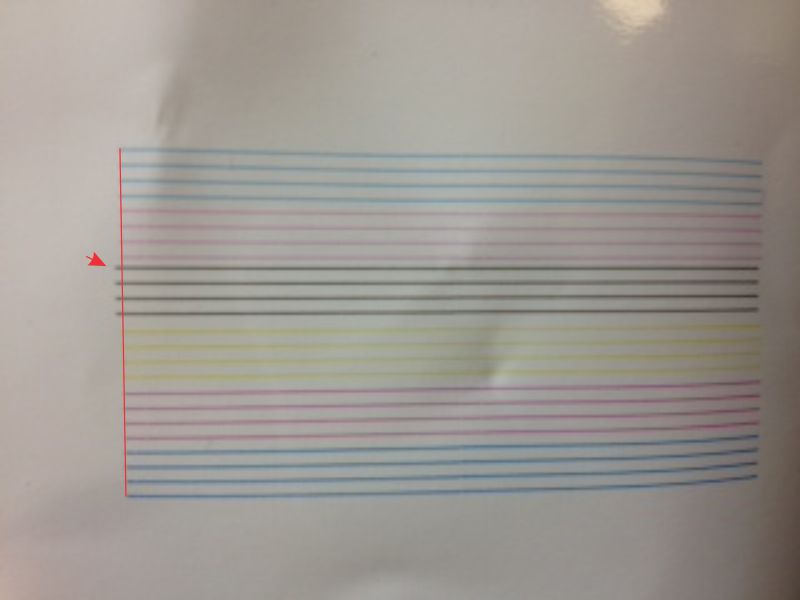

    um the black head is misaligned in that one too...


    Attached Files:

  7. Oct 9, 2012 #7
    J Hill Designs

    J Hill Designs Major Contributor

    15,549
    15
    0
    Sep 24, 2004
    probably need to physically pull the black head back a few mm's

  8. Oct 9, 2012 #8
    pabacker66

    pabacker66 Member

    30
    0
    6
    Oct 5, 2012
    Chapin, SC
    jhill I see what you mean. I can't believe I didn't notice that. I will give that a shot.

  9. Oct 9, 2012 #9
    CS-SignSupply

    CS-SignSupply Very Active Member

    2,290
    3
    38
    Oct 15, 2008
    Lawrenceville GA 30043
    Not only is it vertically off, it is horizontally off as well. Note how close the black is to the LM.

  10. Oct 9, 2012 #10
    pabacker66

    pabacker66 Member

    30
    0
    6
    Oct 5, 2012
    Chapin, SC
    That did the trick guys. Thanks for your help.
