Anyone know how to do this?

Discussion in 'Designs & Layouts' started by busypc, Oct 30, 2013.

  1. busypc

    busypc Member

    96
    0
    0
    Aug 12, 2009
    I'm trying to clean up and recreate this image (I've just put part of it)....Any ideas on how to do it in Illy, Flexi or Corel? I will be putting a black outline around the letters before the "extrude" lines. I've searched google and youtube and can't seem to find anything. Thanks for any help!


    Attached Files:

    Tags:
  2. HulkSmash

    HulkSmash Major Contributor

    8,159
    140
    63
    Sep 10, 2010
    Denver.

    you can easily just do it with a pen tool. Just make a Point and make sure they all converge on the same point to keep it accurate.

  3. Joe Diaz

    Joe Diaz Very Active Member

    You can use the extrude tool in Corel, then apply a thick yellow outline to that extrude. It looks like parts of that extrude aren't there though. So you will need to break it a part. Then delete what ever is not seen in the sample above.

  4. John Butto

    John Butto Very Active Member

    2,310
    3
    38
    Jan 9, 2007
    Like Colorado said, and Illustrator has a perspective tool that works well for that. Also the 3d tool has a perspective tool within it.

  5. SignProPlus-Chip

    SignProPlus-Chip Active Member

    603
    1
    16
    Feb 19, 2012
    Bluffton, SC
    The perspective lines in that image are all wonky.

    For me, the quickest way would be to redraw it in AI. Original image on bottom layer, use a tight snap to grid and the pen tool on a layer above that. 20 minutes worth of work.

  6. SignManiac

    SignManiac Major Contributor

    8,494
    37
    48
    Mar 25, 2006
    Mars Florida

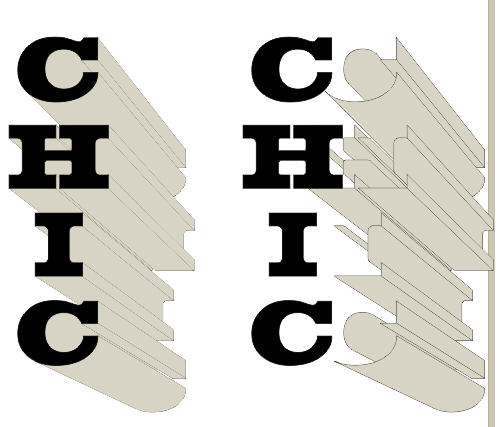

    In CorelDraw this is a 30 second task using the extrude tool.


    Attached Files:

  7. busypc

    busypc Member

    96
    0
    0
    Aug 12, 2009
    Will that give me just the lines, not a solid shadow?

  8. John Butto

    John Butto Very Active Member

    2,310
    3
    38
    Jan 9, 2007
    Did you have anything to do with the Affordable Care web site?

  9. busypc

    busypc Member

    96
    0
    0
    Aug 12, 2009
    Really, there's no need for that. Forget it.

  10. busypc

    busypc Member

    96
    0
    0
    Aug 12, 2009
    Thanks to the ones of you who gave positive feedback.

  11. John Butto

    John Butto Very Active Member

    2,310
    3
    38
    Jan 9, 2007
    There is a need for that. Everyone on here is a working person and they have taken the time to respond to your question. Then when you start asking questions after Signmaniac drew it out for you. You did not even take the time to try it. Nobody gets paid on here and a lot of people give good information, this is not a call center, 1.800.HELPME. Next time I will send my Leerjet and pick up Signmaniac and fly him to your place and have him hold your hand while he walks you through it.

  12. busypc

    busypc Member

    96
    0
    0
    Aug 12, 2009
    Chill out and get over it.

  13. busypc

    busypc Member

    96
    0
    0
    Aug 12, 2009
    The effect that signmaniac drew out is NOT what I'm looking for...so I simply asked a question. This forum was set up exactly for this reason.

  14. busypc

    busypc Member

    96
    0
    0
    Aug 12, 2009
    Go it. Thanks guys.

  15. HulkSmash

    HulkSmash Major Contributor

    8,159
    140
    63
    Sep 10, 2010
    Denver.
    wow.

  16. Joe Diaz

    Joe Diaz Very Active Member

    Yes. You can remove the fill from the extrude, then give it an outline.

    To remove the fill select the extrude then left click no fill (white box with black X) from your color palette. Then if you right click the color you want from the palette it will apply that color to the extrude outlines. If you want to to adjust the thickness of the outline you would go to outline pen tool to do that. Then if you like what you see and you want to convert those outlines to vector shapes go to "Arrange -> Convert outlines to Objects" That should do the trick. :thumb:
