Best Software or plugin for artwork nesting

Discussion in 'RIP Software & Color Management' started by whatsinaname, Jun 11, 2020.

Tags:
  1. whatsinaname

    whatsinaname Member

    108
    2
    18
    May 6, 2008
    HongKong
    What will be a suitable cutting plotter software for artwork nesting? We have hundreds of outline artworks for stickers/decals that we need to cut everyday and Obviously to save as much material as possible, we try to utilize every inch of the materials by arranging manually it in the best possible manner. But it takes a lot of man hours to arrange them and is slowing down our production.

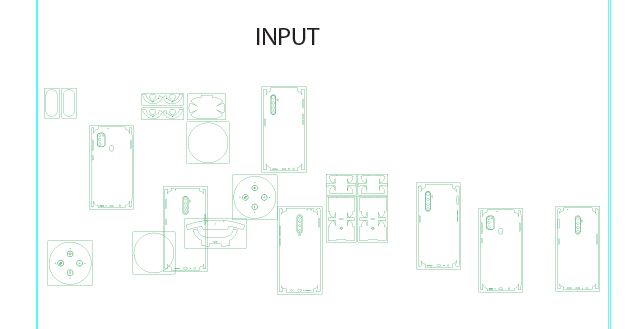

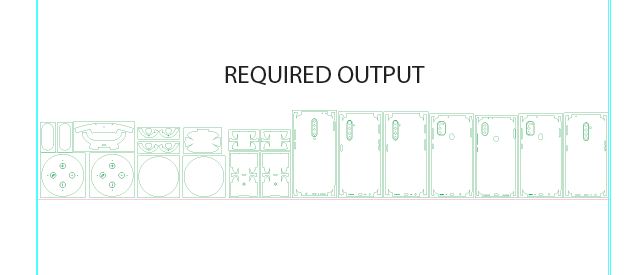

    We will have input like the attached image input.jpg and want all artworks to ideally be arranged like shown in the output image.

    Input_for_nesting.JPG Output_after_nesting.JPG

    We use illustrator CS5 with cutting master 3 for cutting but illustrator has no option for nesting. Tried the e-cut plugin for illustrator but doesn't work. Is there any other plugin/tool or any other cutting software that is the best for nesting?

    Tags:
  2. Raum Divarco

    Raum Divarco Application Specialist CWT / Amcad & Graphics

    57
    15
    8
    Feb 23, 2017
    US
    are you looking for true shape nesting or just boxing. there are several nice options out there. some are subscription-based.

  3. CanuckSigns

    CanuckSigns Very Active Member

    3,297
    348
    83
    Nov 11, 2008
    Ontario
    In what way is ecut not working, I use ecut for coreldraw and it does exactly what you are looking for.

  4. jwlllpl

    jwlllpl Member

    170
    34
    28
    May 6, 2016
    Florida
    I have been using SignTools out of Australia for the better part of 20 years for this exact reason. I also like that I can cut directly from Coreldraw and Illustrator. Not sure what it costs because I just upgrade when I need to. I have version 4 at this time. They used to offer a demo version. There are programs I have tried thru the years but this one is tried and true. Customer service is fantastic. Remember they are in Australia so time change may effect immediate answers to questions but they have always got back to me in a timely fashion. QUICK TIP if you decide to try...group items you want kept together before using the vinyl saver feature.

    • Like Like x 1
  5. FrankW

    FrankW Very Active Member

    1,290
    124
    63
    Oct 19, 2008
    Germany
    Flexi can do that. Boxing and Trueshape-Nesting (Flexidesigner, Flexisign, FlexiSign & Print).

    And Onyx has published a software „Trufit“ recently for trueshape-Nesting, but mainly for printing (havent tested until now if it would work with cutting data too).

    • Like Like x 2
  6. greysquirrel

    greysquirrel Active Member

    571
    73
    28
    Aug 13, 2015
    West Berlin, NJ
    TruFit is awesome...they have 30 day free demos available....I bought it after the third use...shape nesting, will put cut lines on raster images, two sided workflow if you have a latex...

  7. whatsinaname

    whatsinaname Member

    108
    2
    18
    May 6, 2008
    HongKong
    We need just box nesting. All the true shape artworks will be under their individual weed boxes as you can see in the attached images. So it will be just 100% rectangular boxes.

  8. whatsinaname

    whatsinaname Member

    108
    2
    18
    May 6, 2008
    HongKong
    I tried, first thing it doesn't recognize the artworks inside the box may be due the way those compound paths are. But other softwares are perfectly recognizing it. But still as a trial I tried nesting but its not nesting them correctly and seems to be taking them to the 2nd sheet when its perfectly possible to do it in 1 sheet. I might be wrong but their trial version is very cumbersome to test. I am using illustrator though. Is it working fine for you in coreldraw? Can it perform nesting like in the example images that I have attached? I am willing to send you an demo file.

  9. jimdtg

    jimdtg Member

    273
    20
    18
    Jun 18, 2017
    Some places in earth
  10. whatsinaname

    whatsinaname Member

    108
    2
    18
    May 6, 2008
    HongKong
    Pronest is only for CAD/CAM machines I guess. Will it work with illustrator and cutting master 4?

  11. jimdtg

    jimdtg Member

    273
    20
    18
    Jun 18, 2017
    Some places in earth
    I think we must import artworks into Pronest and export file to CM4 for cutting.

  12. JBurton

    JBurton Signtologist

    1,586
    316
    83
    Sep 28, 2017
    Arkansas
    Step 1: Draw a rectangle representing machineable area.
    Step 2: Search youtube for "10 hours of tetris music"
    Step 3: Crank up the volume and go!
