Best way to send file for CAD

Discussion in 'CNC Routing & Laser Cutting' started by Stacey K, Mar 11, 2020.

  1. Stacey K

    Stacey K Getting Back in the Game

    460
    194
    43
    Jun 20, 2018
    Wisconsin

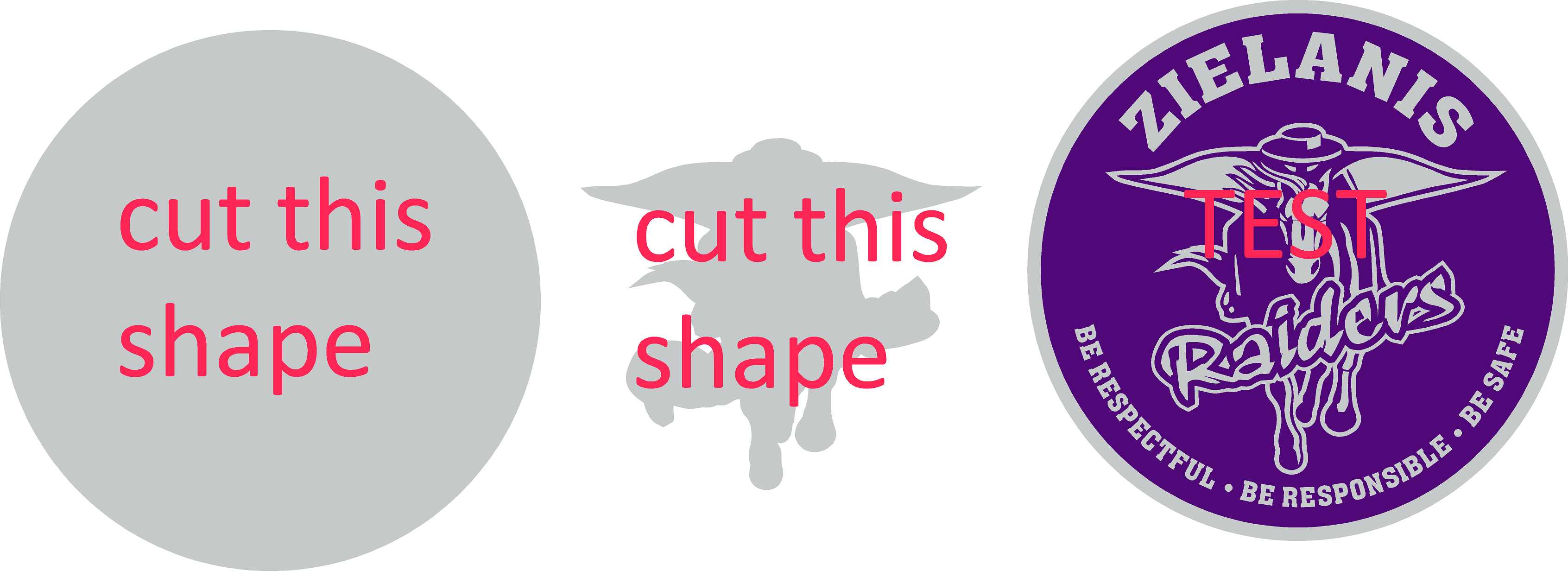

    Helping out the school with some artwork. A local company is cutting a circle and the outline of our team mascot. If I save it in Corel as an Auto Cad file, is that correct? I've attached just the rough file, not finished yet. The gray is metal, the purple will be vinyl. One big circle for the back. The mascot will be a separate piece that will be raised on pegs abut 1/2". They just need the outline of the mascot and the dimensions of the circle...so...if I send a file like this, is this correct? I don't want to look like an idiot. Thanks!


    Attached Files:

    Tags:
  2. Mosh

    Mosh Major Contributor

    5,807
    41
    48
    Oct 19, 2009
    Nerbaska
    If it is just a flat cut export it as a SVG file. That is how I cut stuff on our cnc designed in corel.

    • Informative Informative x 1
  3. Greg Kelm

    Greg Kelm Member

    74
    10
    8
    Aug 20, 2019
    Rancho Cucamonga
    Best bet is to ask the fab shop cutting the metal, which file format they prefer. Most likely it'll be a dxf file of just a cutting path, leave all the graphics out of the cut file. If you need precision, make sure you give them dimensions, because they should be able to compensate for cutting kerf.

    • Like Like x 1
  4. James Burke

    James Burke Being a grandpa is more fun than working

    3,264
    363
    83
    Jan 2, 2010
    Mitten State
    I've found AutoCAD filters to be a bit iffy. I'd prefer exporting it as a .dxf


    JB

  5. Martin Denton

    Martin Denton Member

    108
    16
    18
    Aug 17, 2017
    Manchester, UK
    DXF all the way, autocad tends to treat circles as very small straight lines connected together to form a circle which makes routing a pain and not always very smooth

    • Agree Agree x 1
  6. PMDLLC

    PMDLLC New Member

    18
    3
    3
    Jan 13, 2020
    Jacksonville
    DXF for sure. SvG works as well. Some shape files (SHP), too. But soley depends on the CNC. Always ask fabricator their preferred file format.

  7. rjssigns

    rjssigns Major Contributor

    5,073
    487
    83
    Jun 4, 2007
    Home Office
    I send files to a local shop for laser cuts in DXF. Best bet is to call the shop and ask what they prefer.
