Black Vinyl Grid - Help Please

Discussion in 'General Signmaking Topics' started by jkdbjj, Sep 12, 2012.

  1. jkdbjj

    jkdbjj Active Member

    904
    7
    18
    Jan 24, 2012
    Virginia
    What would be the best way to do this black vinyl project?

    I thought this would be an easy one, but upon getting the job, I am stumped as to the path of least resistance.

    How would you do this job?

    I don't have the option of printing onto clear.

    Tags:
  2. Pro Image

    Pro Image Major Contributor

    4,550
    0
    36
    Nov 28, 2005
    Copy and past your lines at equal distance both horizontal and vertical weld and cut.....pull out the boxes......done....

  3. J Hill Designs

    J Hill Designs Major Contributor

    15,549
    15
    0
    Sep 24, 2004
    cut vinyl onto a mirror? cant you just cut/weed/mask/apply?

  4. Coloradosigns

    Coloradosigns Major Contributor

    7,894
    34
    48
    Sep 10, 2010
    Denver.
    punch your self in the face, it'll be just as painful as this job.

  5. Billct2

    Billct2 Major Contributor

    6,748
    374
    83
    Mar 12, 2005
    New England
    In Gerber it's an easy job, just repeat the lines at the distance you want, contour (weld), cut/weed/apply

  6. jkdbjj

    jkdbjj Active Member

    904
    7
    18
    Jan 24, 2012
    Virginia
    So using those ideas, what I am doing is this.
    I created a background grid in ILLY.

    Then I created a set of boxes for the top row and to left most column to fill just the inside areas of the grid.
    I then copied and pasted the squares over and down to fill up the grid background.

    I am then guessing, I will delete the grid, save as EPS and sent to cutter, and get an employee to weed 800 squares.

    Oh my, I am glad I charged accordingly for this one.

    Seems like I am on the right path from what you all are suggesting. Even you Colorado. One of those jobs I almost regret, but hope it leads to more work with these folks. First time job, eeek.

  7. jkdbjj

    jkdbjj Active Member

    904
    7
    18
    Jan 24, 2012
    Virginia
    that sounds nice actually.

  8. Coloradosigns

    Coloradosigns Major Contributor

    7,894
    34
    48
    Sep 10, 2010
    Denver.
    that'd be a nightmare on my plotter only because after about 11 feet it starts drifting so i have to do it in pieces.

  9. ColoPrinthead

    ColoPrinthead Swollen Member

    738
    67
    28
    Dec 17, 2009
    Donkeytown, Colorado
    Object>Transform>Move, select the option to copy then Ctrl-D for each occurrence needed.
    edit: I see you mentioned the same thing.

  10. jkdbjj

    jkdbjj Active Member

    904
    7
    18
    Jan 24, 2012
    Virginia

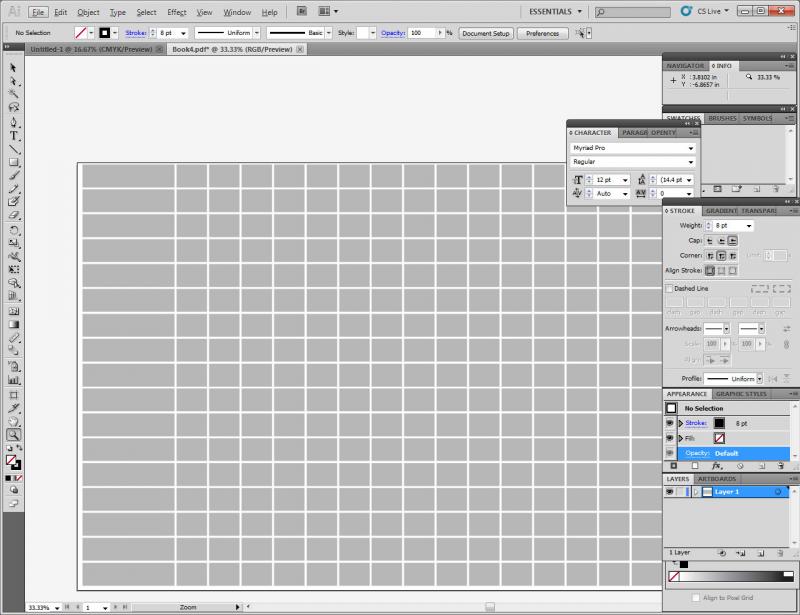

    So here is what my meddling around with the grid function in ILLY produced.

    If I send this to the cutter it will simply cut the squares out.

    Not the funnest job, but at least I see light down the tunnel now.


  11. jkdbjj

    jkdbjj Active Member

    904
    7
    18
    Jan 24, 2012
    Virginia

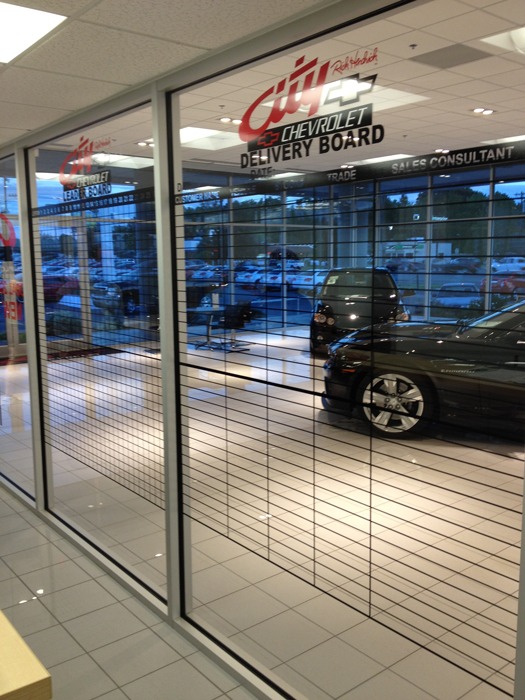

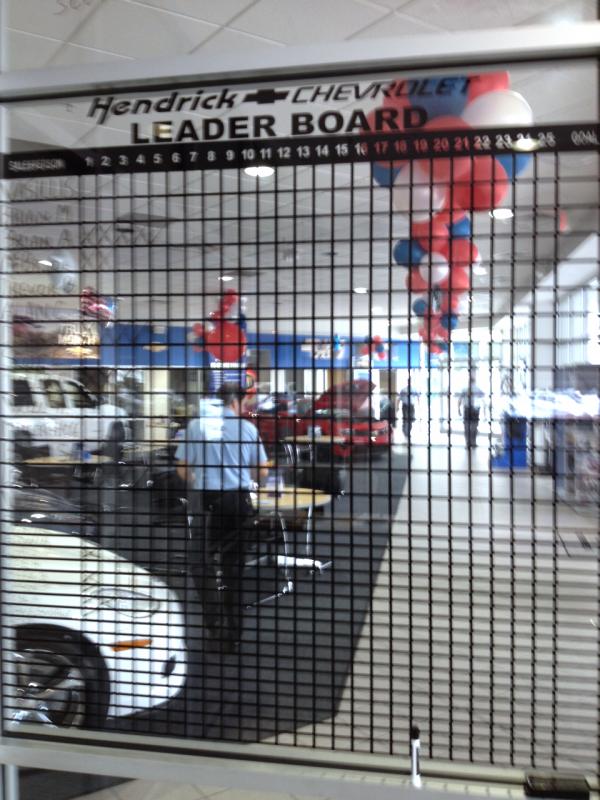

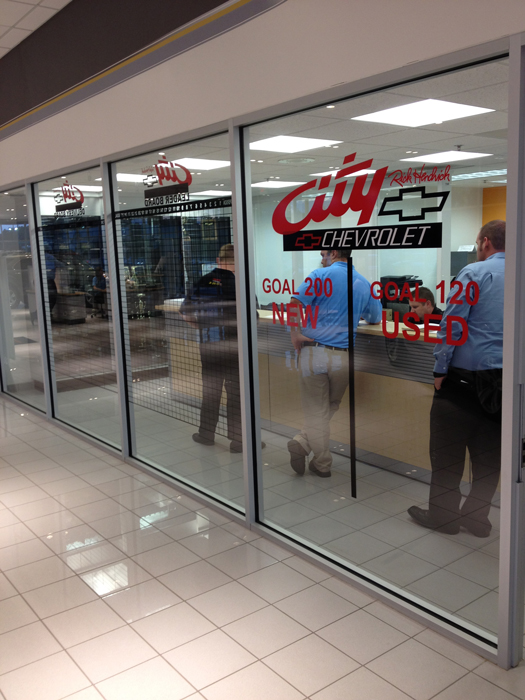

    So this job sucked. Turned out well enough, but it has led to some other good work with them.

    All the sales guys there didn't want it up, cause they said it made the customers feel like numbers, however the bosses want it up there to keep them motivated.
    Wonder how long it will stay up?



  12. Moze

    Moze Very Active Member

    1,811
    68
    48
    Feb 27, 2012
    Dallas, TX
    Came out nice. Did you have to do the weeding?

  13. sfr table hockey

    sfr table hockey Very Active Member

    1,212
    0
    36
    Jan 24, 2009
    Alberta
    A few days late but I think what you are after is in the blend mode. Make two lines or shapes, then Object>Blend>Blend options and set either # of steps or distance or color etc, then once set go back into (object>make) or use the short cuts (alt-ctrl-B).

    Once you made your set lines you can exspand them and ungroup to be able to edit each line if needed. If you don't exspand they stay linked.

  14. jkdbjj

    jkdbjj Active Member

    904
    7
    18
    Jan 24, 2012
    Virginia
    I did, all honesty it took about 20 minutes to weed. I just assumed it would have been longer.
    Installation was trickier than I thought it would be. Mainly, the windows had a waxy film that even alcohol had trouble getting rid of, so naturally the strips like that were trouble if I missed a spot of wax.

    Unusual project for me, so love/hate kind of thing. Hate the tedious parts of it, but love the challenge.

  15. g&eprinting

    g&eprinting Member

    360
    0
    16
    Jul 21, 2011
    Everett MA
    Came out good.

  16. CanuckSigns

    CanuckSigns Very Active Member

    2,886
    204
    63
    Nov 11, 2008
    Ontario
    Yeah if I walked into a car dealer and they had that on display, I would feel like a number too!

    That aside, good job
