calibration test print-wtf?

Discussion in 'Roland' started by mark in tx, Apr 6, 2011.

  1. mark in tx

    mark in tx Very Active Member

    2,081
    0
    36
    Oct 25, 2005
    Harker Heights, Texas
    Roland SC-540V,
    I was getting some banding, none of the usual fixes are working.

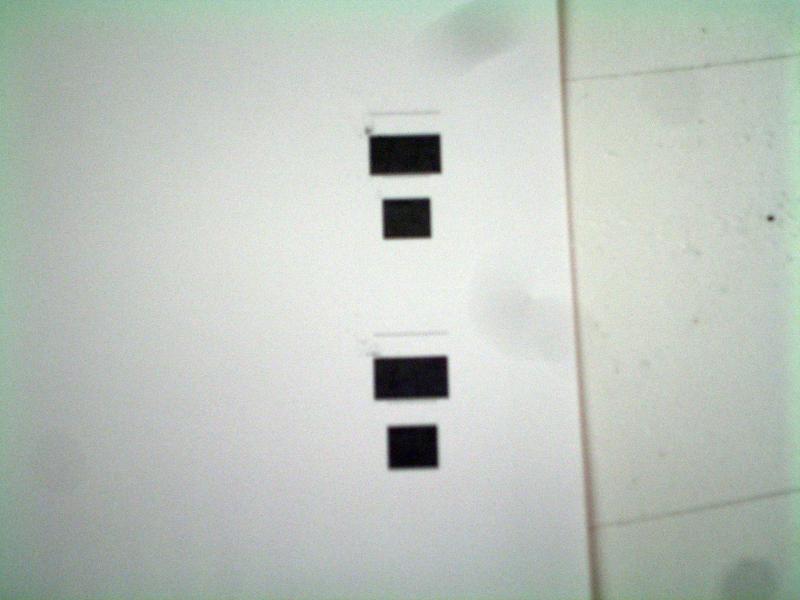

    So I do a Calibration test print and get what you see in the picture.

    Normally those boxes should be within millimeters of each other,
    I'm really at a loss here, what am I missing?


    Attached Files:

    Tags:
  2. houseofgrafix

    houseofgrafix none

    1,737
    0
    36
    Dec 27, 2007
    cw

    holy junnk!

  3. dtdm

    dtdm Member

    132
    0
    0
    Mar 7, 2011
    I don't have the same printer as you. However I have had similar oddities with mine.
    My problem was the head height. It was too far from the media. My printer has a few different head positioning heights for varied media thickness... if yours does, check that... could be simple.

  4. Sticky Signs

    Sticky Signs Very Active Member

    1,154
    0
    36
    Nov 9, 2009
    Vancouver
    Wow. When all else fails, try a full system reboot. If that doesn't work, try kicking it.

  5. mark in tx

    mark in tx Very Active Member

    2,081
    0
    36
    Oct 25, 2005
    Harker Heights, Texas
    Head height is on low.
    Did the turn off and reboot.
    Opened the machine up and made sure all cables and connections are tight, made sure the heads are not loose.

    regular test print is OK, all colors firing, everything aligned.

    ?

  6. mark in tx

    mark in tx Very Active Member

    2,081
    0
    36
    Oct 25, 2005
    Harker Heights, Texas
    Calibration test print was a red herring.

    Regular old test print showed the black head has major issues, did the cleaning, drawing ink with syringe, swapping the cables, etc...

    Need a new head.

  7. Gabriel

    Gabriel Member

    275
    0
    0
    Apr 7, 2011
    I think..

    You miss one step. Those two squares are made from 2 passes each. But you miss one step. Check out the dampers and the cap top.

  8. Gabriel

    Gabriel Member

    275
    0
    0
    Apr 7, 2011
    ...

    Check out the cap-top and the damper on Black.
