Can't get take-up reel to keep printed vinyl tight after 65ft, we print 150ft at once

Discussion in 'Newbie Forum' started by JustinKaise, Sep 28, 2014.

  1. JustinKaise

    JustinKaise New Member

    12
    0
    0
    Jul 16, 2006
    Hey folks, I've tried and tried but can't get an oem ROLAND take-up reel to handle more than about 65 ft. of printed vinyl on the take up before it gets sloppy to the point the image starts to move all over the place. We routinly print 1000's of decals all day and all night and really need this machine to handle full rolls - which also match the full rolls of laminate we use in step 2 - so its REALLY handy when the whole roll prints and winds up. We've tried 2 pieces of tape - 1 in center - tried stopping half-way and re-tightening it - anyone else have these issues? Any suggestions would help. We also make sure tube is thick-walled and straight - make sure both ends are secure and square whne putting take-up tube on reel ends, etc.

  2. AF

    AF Active Member

    786
    36
    28
    Dec 8, 2013
    USA
    What material are you printing on? I have seen some materials come off the factory roll with a ton of drift while others drift less than 1mm.

    Regardless, I prefer to use three pieces of tape so there is maximum tension on the take up roll.

  3. JustinKaise

    JustinKaise New Member

    12
    0
    0
    Jul 16, 2006
    The main material we print long run is Briteline 3mil gloss white printable, or same brand matte white - banner material we generally don't print entire rolls.
    What kills me is that its perfectly tight on the roll and we make sure its square and tight thru the printer and then pulled down tight and taped on take-up.
    Its maddening! lol

  4. 97GTB

    97GTB Member

    33
    1
    8
    Feb 13, 2011
    On the road
    Not 100% sure on the Roland Take up, but the mimaki's have an adjustable clutch on the drive end
    usually set at 50% initially, if the roland has one may need to be tightened, or if its old may need
    replacing.

  5. CS-SignSupply

    CS-SignSupply Very Active Member

    Check the core and the black plastic core guide... the drive side is probably slipping due to worn out plastic core guide or inside of core too slick for it to grab with the weight on it.

  6. Bly

    Bly Very Active Member

    2,559
    192
    63
    Mar 9, 2004
    Sydney
    Sometimes the takeup on our XJ740 slips when it gets a bit of weight on it.
    We just loosen the clamp on the left and push the core in a bit tighter until it grips again.

  7. AF

    AF Active Member

    786
    36
    28
    Dec 8, 2013
    USA
    Have you tried taping the takeup core to to the takeup shaft to prevent it from sliding?

  8. qmr55

    qmr55 Very Active Member

    1,754
    12
    38
    Jun 3, 2010
    Yardville NJ

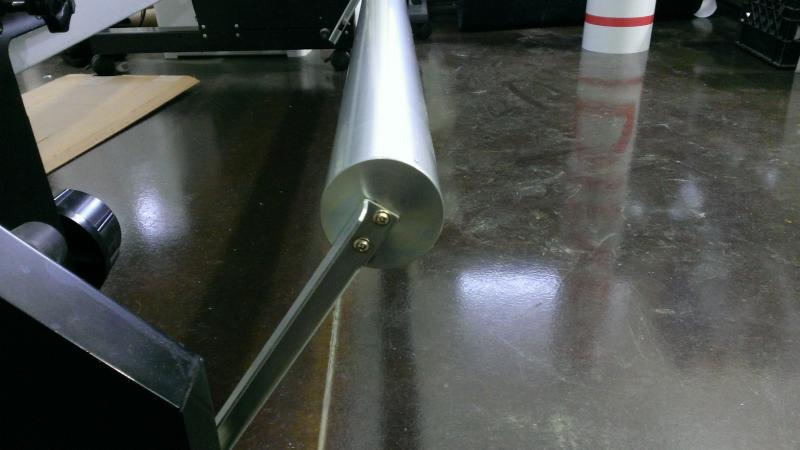

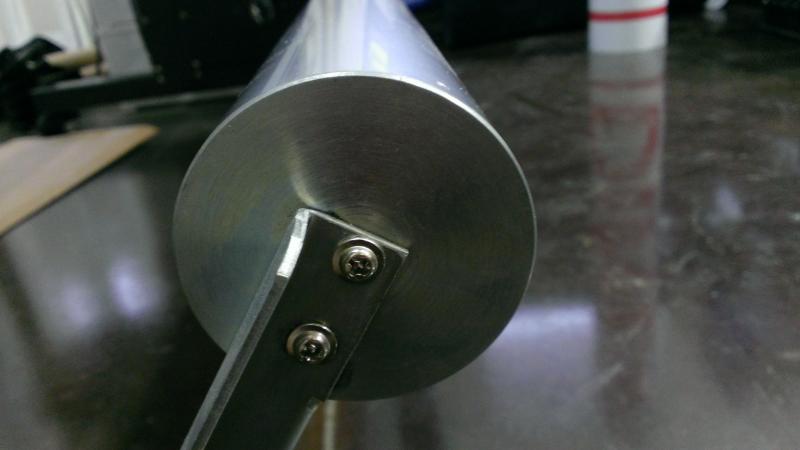

    Long shot, but check these screws on the ends of the tensioner. We had problems with them loosening, and it would throw everything off. Loc-tite them and problem solved.


    Attached Files:

  9. player

    player Major Contributor

    4,429
    68
    48
    Apr 24, 2006
    Toronto
    Supply 55 reels are OK, but cannot do full rolls.

  10. SightLine

    SightLine Very Active Member

    When the core guide on a Mimaki takeup on the drive side gets those ridges worn out, you can use some snap ring pliers to remove it and swap it with the one from the other side and you essentially have a brand new core guide again. :smile: Also - the front core guides are not interchangeable with the rear ones but the rear ones should never really wear out since they are not driven or anything.

    Speaking of that - can your get replacement for those for a Mimaki Bobby? If so email me a quote on at least one. Nice to have a spare so I might want to replace the worn out one.

    Regardless of the brand - if you happen to be seeing little piles of dust building up under the drive end of your takeup then the core is slipping on it meaning one of three things. 1 - the core is not pushed onto the core guide far/tight enough, 2 - the core guide is worn down and its no longer possible for it to be on the guide without slipping, 3 - the tube you are using is deformed, slightly too large, etc - I've seen a lot of variation in core tubes from rolls of vinyl.

  11. player

    player Major Contributor

    4,429
    68
    48
    Apr 24, 2006
    Toronto
    They work on a simple slip clutch. The unit spins all the time, but the clutch gets adjusted to wind, but slip when the vinyl pulls tight.

    There is a very small motor. When you get too much weight, you have to tighten the clutch, which puts strain on the very very small motor, causing it to burn out.

    It seems to track OK though. If it is set up correctly.

    It is not useable when cutting.

    There are cheap Chinese versions available in the US from a couple of venders for around $300. Phototec has had great success with his knock off version.

    I have the S55 version.
