Carriage bearing replacement on Valuejet 1604

Discussion in 'Mutoh' started by heyskull, Jul 20, 2020.

  1. heyskull

    heyskull Very Active Member

    1,668
    15
    38
    Sep 2, 2007
    UK
    Well after fitting yet another maintenance station into our 1604 the test print is showing no blocked nozzles and prints as good as the day it was installed.
    It is now Seven and Half Years since I had a new print head installed and firmly believe that if blocked nozzles are attended to when they happen you can get unbelieveable life out of a printhead.

    The main issue is the carriage bearings are failing and have began to sound rather noisy and the head height has to be constantly set high.

    Has anyone replaced the bearings as I have found a chinese supplier and they are for peanuts to buy?

    Thanks
    SC

    Tags:
  2. Solventinkjet

    Solventinkjet DIY Printer Fixing Guide

    4,231
    796
    113
    Aug 2, 2011
    Denver, CO
    You can only buy the bottom bearings separately. To get the other ones you need to buy the entire carriage. That being said, if you can find the proper bearings I'm sure there's a way to install them but from the looks of it, it's not an easy job.

  3. Umca

    Umca Member

    148
    9
    18
    Sep 4, 2015
    UA
    For 1604/1614 it was possible to buy complete set of bearings.
    The article for order was KY-14620. I am not sure if it available for order now. For new models is possible to buy complete carriage or bottom arm with bearings.

  4. Solventinkjet

    Solventinkjet DIY Printer Fixing Guide

    4,231
    796
    113
    Aug 2, 2011
    Denver, CO
    I looked that part number up in my price list from Mutoh and it doesn't show up which usually means they don't sell it. It would be interesting to know where you bought yours from. Was it a dealer or after market? I get people asking every now and then.

  5. Umca

    Umca Member

    148
    9
    18
    Sep 4, 2015
    UA
    It was bought from a dealer. It is in pricelist of 2016 year. As I told, it not available anymore. Laast years I bougnt generic bearings from SKF, NSK or EZO.
    Actually, Mutoh told they bearings was polished outside for prevent to damage roller strip.

  6. henryp

    henryp Member

    318
    9
    18
    Sep 25, 2006
    Sydney Australia

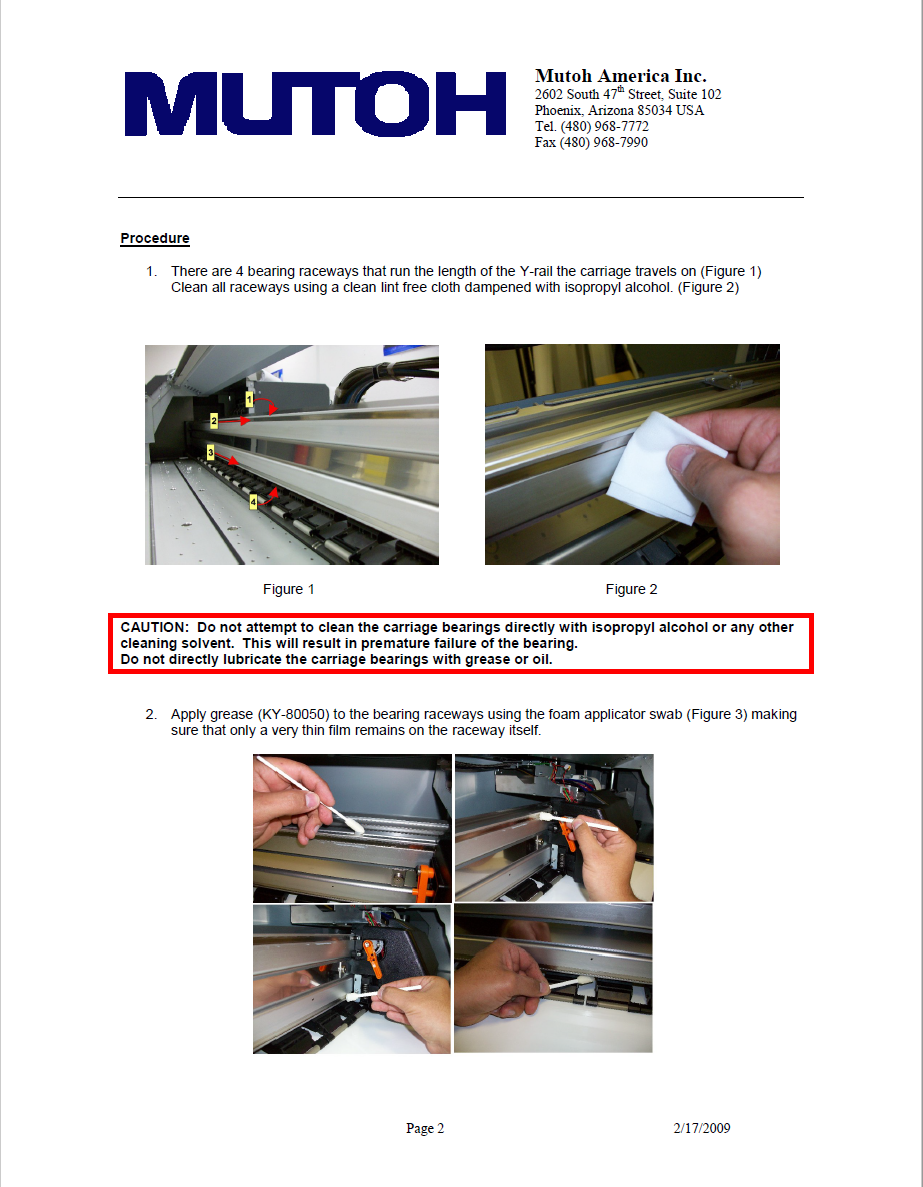

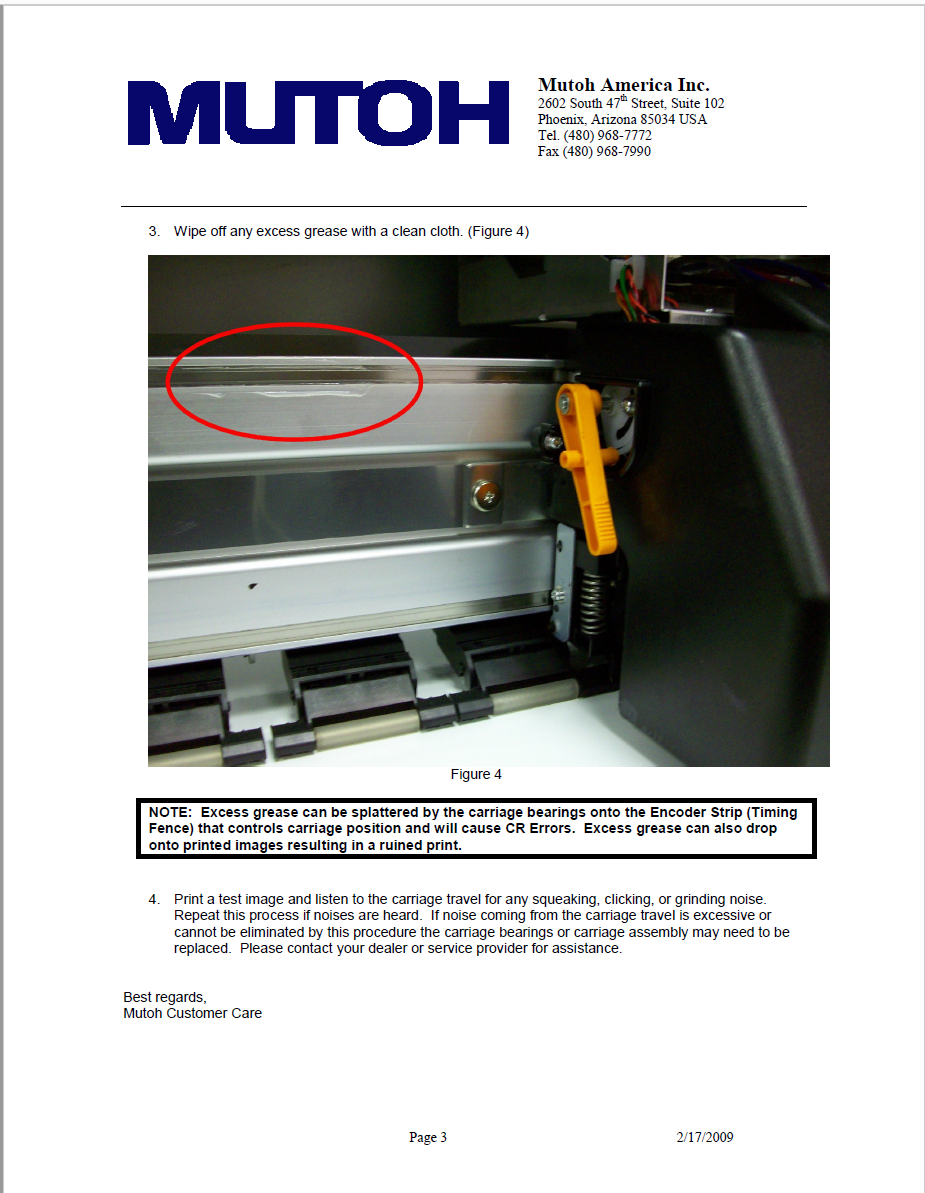

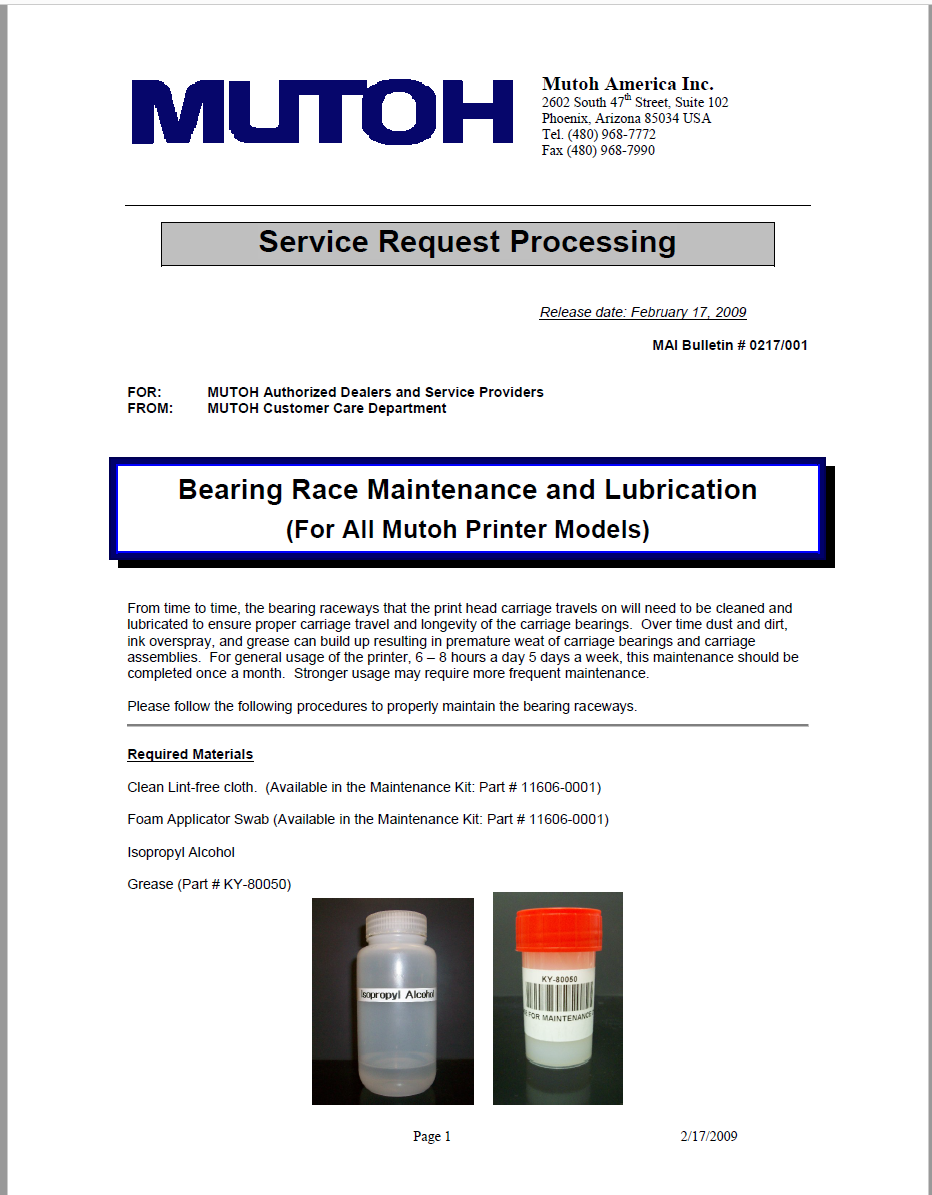

    ice_screenshot_20200722-102722.png This is why bearing raceways maintenance is very important, once the bearings and the raceways become pitted, it becomes big job to fix.


    Attached Files:

    Last edited: Jul 21, 2020
  7. heyskull

    heyskull Very Active Member

    1,668
    15
    38
    Sep 2, 2007
    UK
    This is a 2007 machine and has printed Thousands of Metres of print matial and banner.
    So it hasn't done to bad has it?

    The way Mutoh instruct you to lubricate the carriage bearings is not correct (This has been discussed on this forum before) as they are sealed and adding anying lubrication is going to cause wear caused by picking up dust.

    SC

  8. Umca

    Umca Member

    148
    9
    18
    Sep 4, 2015
    UA
    What’s the problem? Just replace bearings for new set. Any what you want. Chinese or other. Lifetime will depends on bearings quality. All 8 pcs are same.

  9. heyskull

    heyskull Very Active Member

    1,668
    15
    38
    Sep 2, 2007
    UK
    The question was "How do I replace them?"
    This looks quiet an intense job and due to never have done anything like this I need guidance.

    Cheers
    SC

  10. Umca

    Umca Member

    148
    9
    18
    Sep 4, 2015
    UA
    For first time it will be scary a little. Because many possibilities to damage some parts.
    So, my steps...
    Remove top cover and top plastic covers on sides.
    Release the tension of steel belt on left pulley
    Open steel belt on both sides of carriage. Move left opened edge of steel belt to left outside.
    Remove T-fence.
    Move carriage left to end. To maintenance area.
    Press by fingers to bottom bearing arms and release carriage from the rail.
    Now you have access to bearings. Maybe one more person will need you for help.
    Side bearings mounted on shaft and placed into a plastic frame of carriage. Sometimes with a glue. Carefully remove them, replace bearing and install back.
    Top and bottom bearings you will need to free from shafts by removing fixing ring. You can see them on bearings set picture.
    It is a short way.

    Last edited: Jul 22, 2020
  11. henryp

    henryp Member

    318
    9
    18
    Sep 25, 2006
    Sydney Australia
    That procedure is not to lubricate the bearings themselves (as you have said, these bearings are sealed). The instruction is for for the maintenance of the bearing raceways so they do not get pitted because once they do, the rolling surface of the bearings will get pitted as well and this is what usually causes the noise and vibration.
