Corel gurus - I need you! Gradiants on edges

Discussion in 'Corel' started by letterman7, Oct 21, 2020.

  1. letterman7

    letterman7 Very Active Member

    1,273
    86
    48
    Nov 10, 2008
    Pennsylvania
    Ok, here's what I have. I'm trying to replicate a hand painted Maltese Cross for a company to be used on other vehicles (and to have it for posterity). The original hand painted cross has multiple fades on it that I just cannot for the life of me replicate by any of the traditional Corel methods (blend, mesh fill - which I despise). Is there a way to do this? The effect I'm looking for is the inner edges of the portions in grey to match the center circle. Any I making sense?

    Rick

    Tags:
    • Like Like x 1
  2. jwlllpl

    jwlllpl Member

    204
    46
    28
    May 6, 2016
    Florida

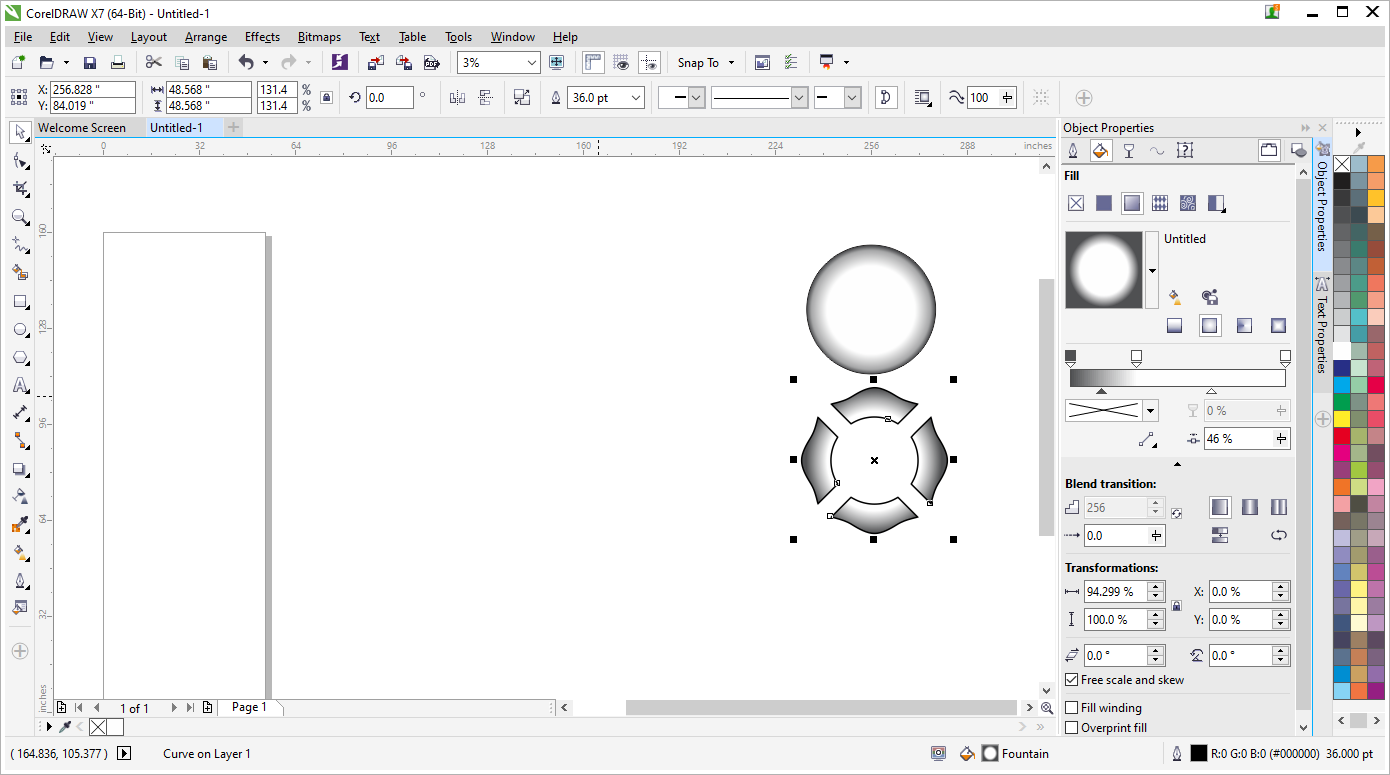

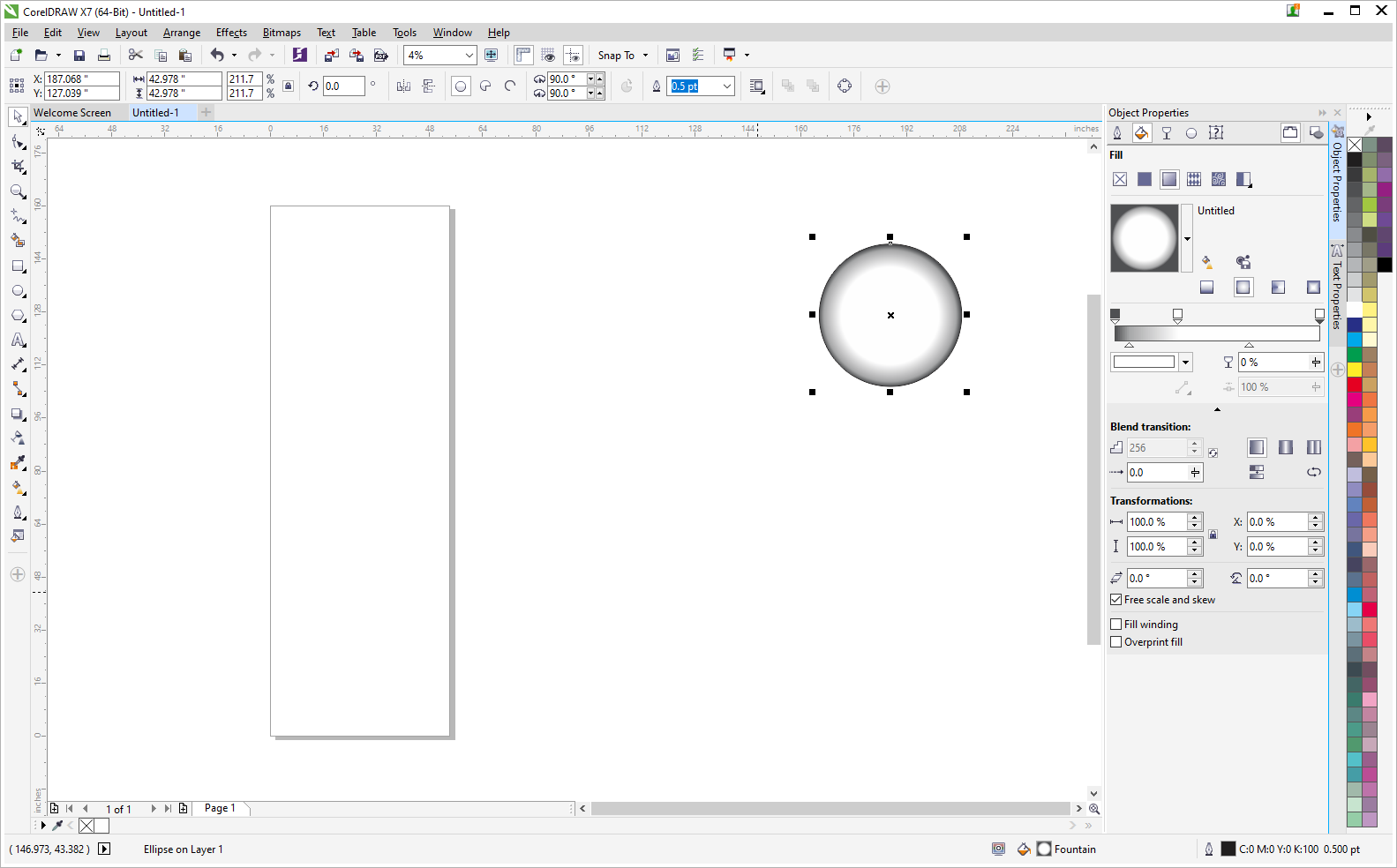

    Easiest would be to vector image. Combine the grey areas. Under object properties use your fountain fill with elliptical checked. Use grey at 0% white at 30% and another white on end at 0%. should get you pretty close. Then outline in black. Posted a screenshot below.

    • Like Like x 1
  3. jwlllpl

    jwlllpl Member

    204
    46
    28
    May 6, 2016
    Florida

    • Like Like x 1
    • Agree Agree x 1
    • Informative Informative x 1
  4. letterman7

    letterman7 Very Active Member

    1,273
    86
    48
    Nov 10, 2008
    Pennsylvania
    No, not the look I need. I need each "lobe" to be "inlined" with the gradient, not the entire thing as a gradient. The gradient needs to follow the contour - a simple fill gradient won't do that.


    Attached Files:

  5. jwlllpl

    jwlllpl Member

    204
    46
    28
    May 6, 2016
    Florida

  6. letterman7

    letterman7 Very Active Member

    1,273
    86
    48
    Nov 10, 2008
    Pennsylvania
    jw - you're not seeing the photo I posted. Gradient has to follow the contour, not just fill them.

  7. jwlllpl

    jwlllpl Member

    204
    46
    28
    May 6, 2016
    Florida
    Gotcha...in that case break each section apart and use the interactive fill tool right above the elliptical box still using the elliptical checked. You can use it to fill one section and then just copy the fill properties the other sections.

  8. letterman7

    letterman7 Very Active Member

    1,273
    86
    48
    Nov 10, 2008
    Pennsylvania
    Tried that - won't work as the fill won't follow the contour. I've even tried a "contour to center" mimicing how Corel blends and it still won't do it.

  9. jwlllpl

    jwlllpl Member

    204
    46
    28
    May 6, 2016
    Florida
    The blend tool using just one row maybe. That's the only other way I can think of without going into a paint/photo program to do it. Hopefully someone else will have the answer for you.:(

  10. letterman7

    letterman7 Very Active Member

    1,273
    86
    48
    Nov 10, 2008
    Pennsylvania
    :) Appreciate the effort! I'm trying a sideways method of bringing those pieces into CPaint and "hand painting" those areas. We'll see..

  11. Bobby H

    Bobby H Very Active Member

    2,178
    187
    63
    Feb 4, 2005
    Lawton, OK
    It looks like a Photoshop effect, done either within Photoshop or a live raster-based effect (like inner glow) within Adobe Illustrator. As far as gradients on line strokes goes, Adobe Illustrator does support that. However, I don't think a gradient on a line stroke is going to achieve the right look.

    • Like Like x 1
  12. Notarealsignguy

    Notarealsignguy Very Active Member

    1,023
    262
    83
    Feb 20, 2020
    Florida
    I'm sure this is the wrong way but it will work. Copy your outline and stick it under the first outline. Give it a larger stroke, convert to bitmap, blur > gaussian blur and adjust the slider. You may have to fiddle with the size of the stroke. Then cover up the side you don't want the effect in.

    • Like Like x 1
  13. Jester1167

    Jester1167 Premium Subscriber

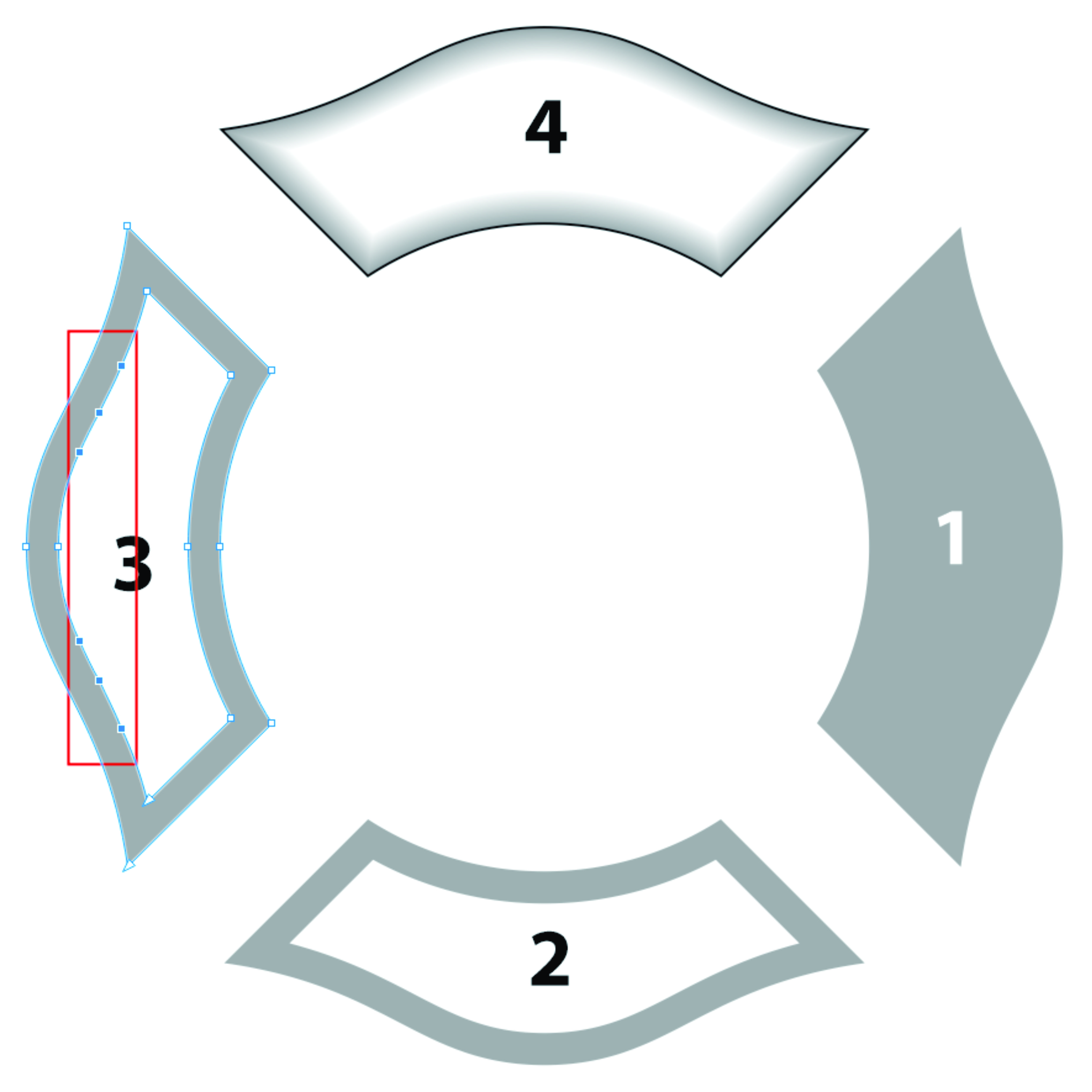

    I think I have what you are looking for.

    1. Create your vector shape
    2. Create a contour where you want the final color and assign the interior and exterior shape target colors.
    3. Simplify the nodes in the contour so they match your original shape. If you don't the blend tool gets out of wack
    4. Apply a blend. the more steps the smoother the gradient. If you want it really smooth you can convert it to a bitmap and blur it then use outlines to cover the blur.


    Attached Files:

    Last edited: Oct 21, 2020
    • Like Like x 1
  14. unclebun

    unclebun Very Active Member

    I do that effect by copying the shape to the clipboard, pasting it back, making a larger contour of it and combining the contour with the object. Then powerclip it inside the original object and make a glow shadow of it in the color you need.

    • Agree Agree x 1
  15. Jester1167

    Jester1167 Premium Subscriber

    Nice simple solution, just like a drop shadow on a negative shape.

  16. letterman7

    letterman7 Very Active Member

    1,273
    86
    48
    Nov 10, 2008
    Pennsylvania
    Excellent solutions - will giv them a go in the morning!

  17. Schwabby

    Schwabby Graphic Designer/Project Manager

    6
    0
    1
    Sep 24, 2020
    46825
    Easy Peasy.....Get Illustrator! Trying to be funny! Couldn't resist that answer!

  18. letterman7

    letterman7 Very Active Member

    1,273
    86
    48
    Nov 10, 2008
    Pennsylvania
    That's pretty much the effect I'm looking for but am failing spectacularly in obtaining it. When I do that blend as you illustrate, even with minimal nodes, the blend is going in all directions. It's weird. But if I do a "contour to center" I get the same effect.

  19. McDonald Signs

    McDonald Signs McDonald Signs & Graphics

    83
    10
    8
    Feb 11, 2013
    Guin, Alabama
    In Corel try taking each section of the Maltese Cross apart that you want to add the shadow to and make it "Shape" with a small outline, where it's just a shape with an outline combined
    and not a solid Shape. Add a drop shadow to the shape, I think you can change the shadow to brown instead of black.
    Then Break the shadow and shape apart....
    Then Reduce the size of the shadow and move it to fit inside the Shape so its the same on all 4 sides.
    Attached is a crude example but should give you an idea....


    Attached Files:

  20. letterman7

    letterman7 Very Active Member

    1,273
    86
    48
    Nov 10, 2008
    Pennsylvania

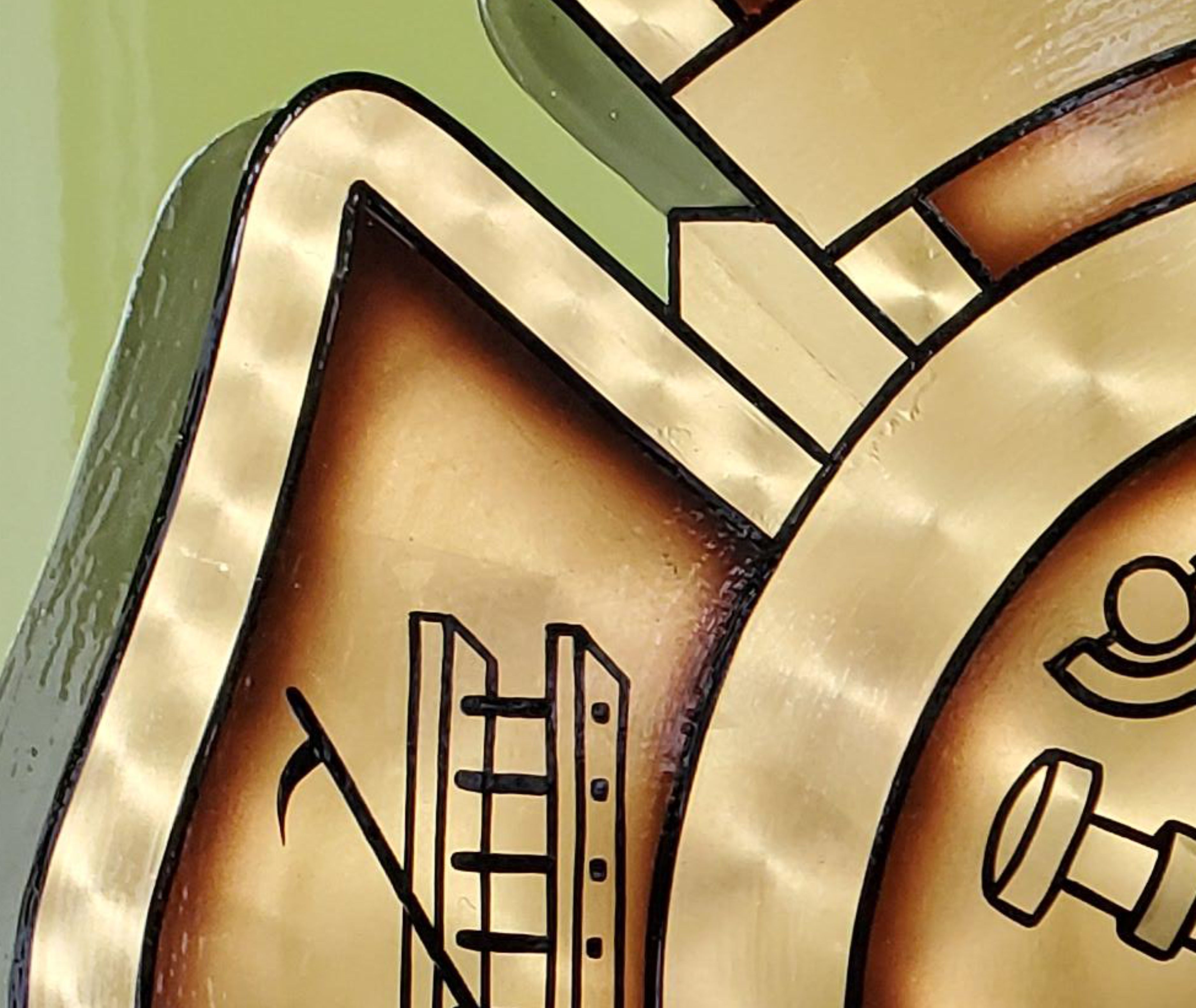

    I think I got it. I used a combination of the suggested ideas and came up with basically layering blends (or, more specifically, blend wanna-be's using the contour-to-center option) and overlays. It's not totally perfect, but I think it'll work fine for printed on RealGold. Thanks to all who contributed!
