Curve on Front Window

Discussion in 'Vehicle Wraps' started by SDSignGuy, Jun 28, 2011.

  1. SDSignGuy

    SDSignGuy New Member

    18
    0
    0
    Jan 20, 2011
    Okay, I've been doing this for some time and its funny I've never had to actually do one of these. I have a customer that wants his website across the top of the windshield. I thought it would be a pretty simple install, but in either direction if you want it straight, it goes completely off. So I figured there has to be a template or a way to get this right. So how is it done?

    Tags:
  2. Jillbeans

    Jillbeans Major Contributor

    14,457
    20
    38
    Dec 24, 2003
    Butler, PA
    I just eyeball it when doing the layout.
    I make it have a slight "smile" distortion so it lays straight on the window.
    You can also start your application from the center, and slit your app tape and backing paper up from the bottom of the decal, easing it into the curve.
    But that sucks.
    Love....Jill

  3. ucmj22

    ucmj22 Very Active Member

    1,509
    1
    0
    Dec 10, 2009
    whenever I have to fit a curve, I take a piece of scrap backing paper, lay it on the object and trim it until its right, then I take some measurements from the flat paper, and make a template in illustrator

  4. john1

    john1 Guest

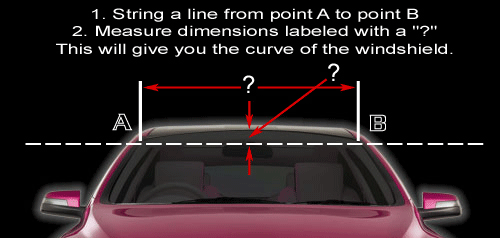

    Hope this helps :thumb:


    Attached Files:

  5. SDSignGuy

    SDSignGuy New Member

    18
    0
    0
    Jan 20, 2011
    So either eyeball it or create your own template. Well I tried eyeballing and it looks like crap, but I didn't start from center, and I am also not climbing on this customers car to get to center. Any other suggestions? My client will come back later on, but I need a better solution or no dice the next time this rolls around.

  6. Craig Sjoquist

    Craig Sjoquist Major Contributor

    6,746
    4
    38
    Jun 18, 2004
    Orlando
    Doing what Ucmj22 is the way to do it if you get to plan ahead .

    If it just shows up letters are cut.. take a straight edge using one hand as guide on windshield other hold china marker make line for copy to follow and do what Jill said cut between letters start in middle and install one at a time

  7. Dzrt1st

    Dzrt1st Member

    204
    0
    16
    Jan 22, 2008
  8. thewvsignguy

    thewvsignguy Active Member

    657
    0
    16
    Feb 21, 2008
    Grantsville, MD

    +1

    this is the best way to do it. All windshields are different and this has worked 100% everytime!:rock-n-roll:

  9. Dennis @ Sign FX

    Dennis @ Sign FX Member

    141
    2
    18
    Nov 18, 2007
    Southern California

    There you have it! It's actually very easy. Then design to the arc.

  10. SDSignGuy

    SDSignGuy New Member

    18
    0
    0
    Jan 20, 2011
    ok, I am using the formula, and its not a smile but a frown, is that correct?

  11. Jillbeans

    Jillbeans Major Contributor

    14,457
    20
    38
    Dec 24, 2003
    Butler, PA
    No I make it smile because it frowns as you lay it down, depending on the curve.
    And I usually do too.

  12. SDSignGuy

    SDSignGuy New Member

    18
    0
    0
    Jan 20, 2011
    Ok Jill I am turning that frown upside down. I'll let you know how it installs. Thanks.

  13. SDSignGuy

    SDSignGuy New Member

    18
    0
    0
    Jan 20, 2011
    Jill, your my new best friend. and thanks to everyone else with you input as well. Worked like a charm.

  14. Jillbeans

    Jillbeans Major Contributor

    14,457
    20
    38
    Dec 24, 2003
    Butler, PA
    Cool. I am the most untechnical poster on here, I'm glad to know that my idiocy made sense to someone!
    :)
