Digital Tool CNC Router

ridefst

New Member

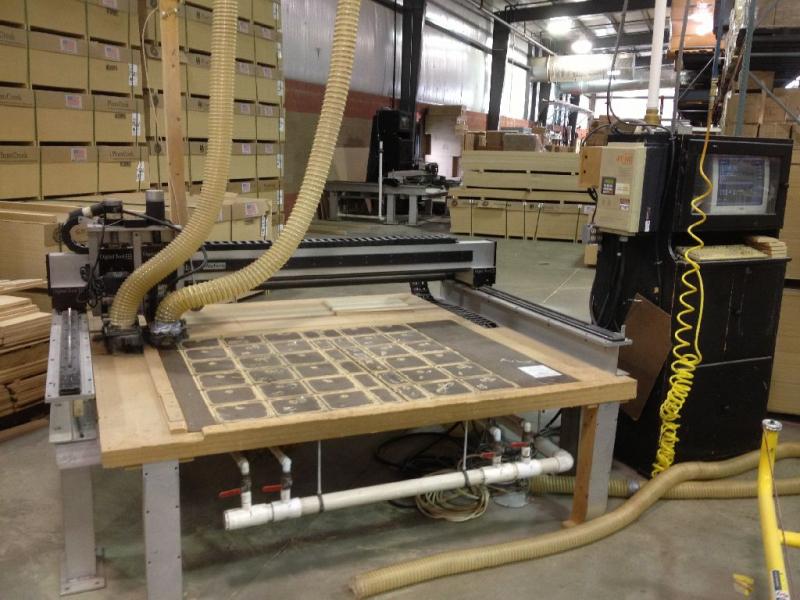

Digital Tool brand CNC router
Currently powered and in full working condition - can be demoed.
63" x 52" working area
Two heads, one 15 Amp Porter Cable router, and one 7.5HP Perske high speed spindle with variable speed drive and line reactor
Independent lead screw W and Z heads

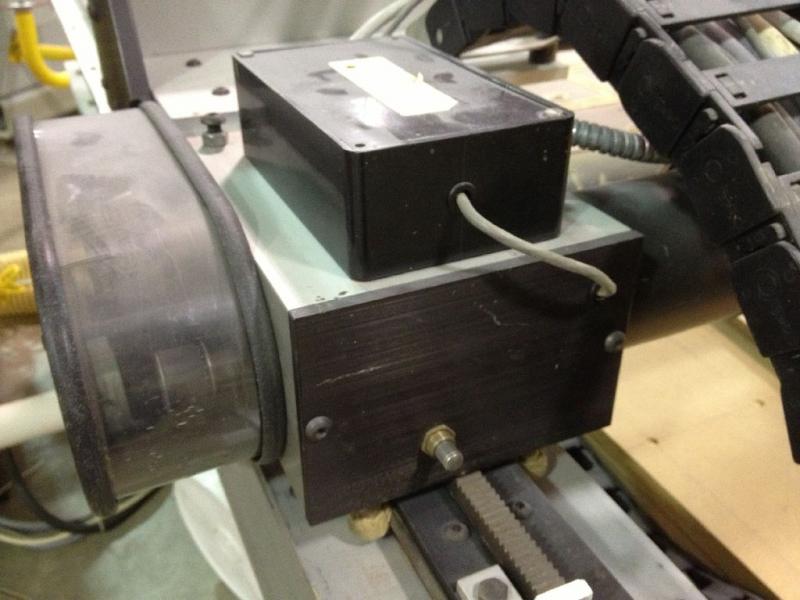

X and Y axis are rack and pinion drive.

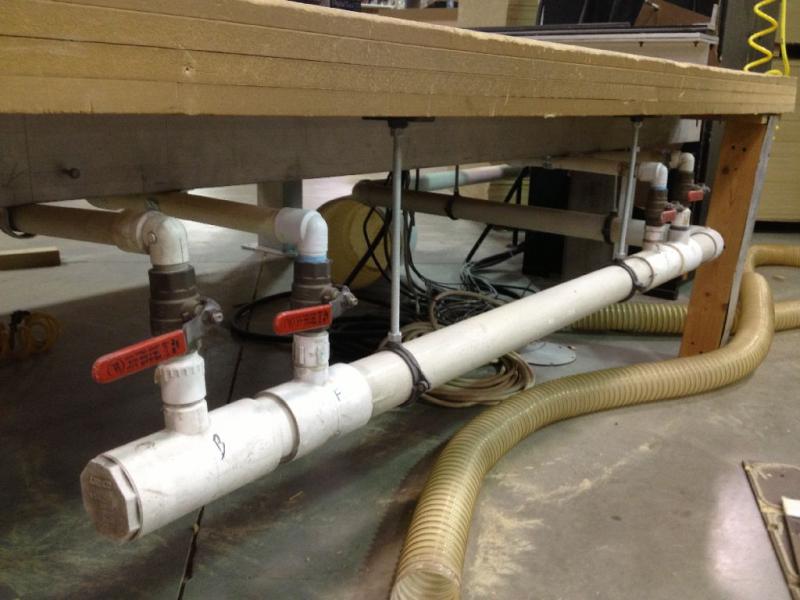

All aluminum construction, except the table is MDF, currently plumbed for vacuum system.
Anaheim Automation NEMA 34 frame steppers throughout, with four axis drive via parallel ports on included PC

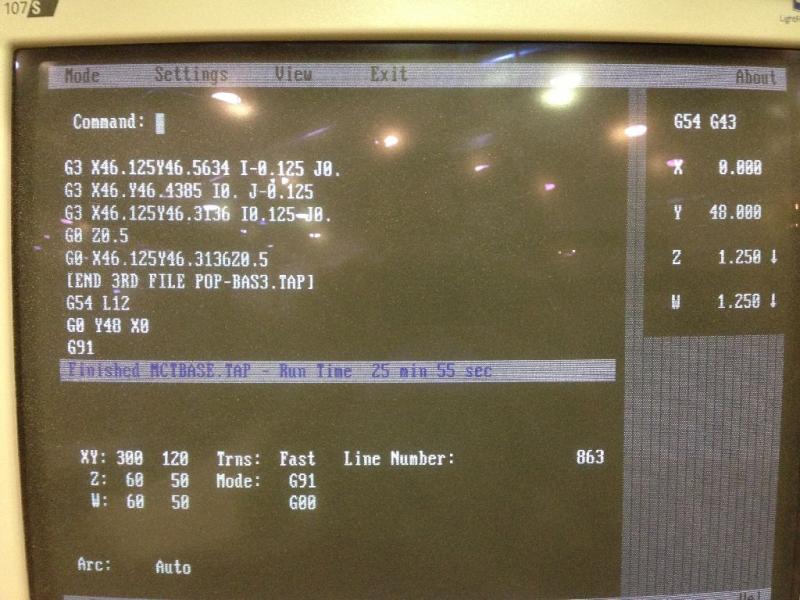

DOS based CNC Controller software is included, all you need to provide are G-code files and it's ready to go.
110/220v power is all that's needed, doesn't require industrial 3-phase or high voltage.

Works great for wood carving and milling - could possibly do some light aluminum milling with a different hold down system.
We are currently cutting 3/4" MDF at 100ipm using a 1/4" carbide bit with great results.

Only reason for selling is that we've outgrown this machine, the big ones are getting all the run time and this one just ends up sitting idle most of the time.

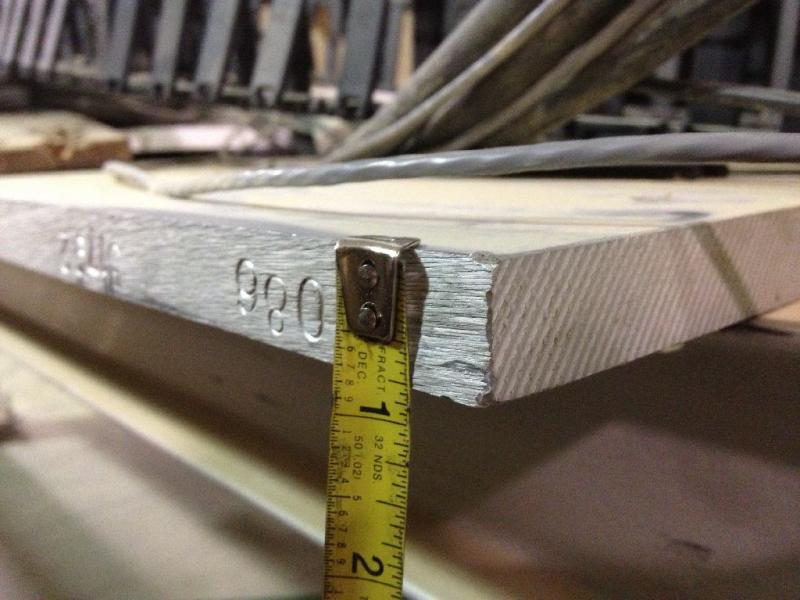

Also have a 3/4" aluminum bed from a different machine that is not installed, might be able to work something out with that depending on price.

Asking $4,000obo
Located in Dalton, Ohio
PM for more info
