Question Does this happen to you?

Discussion in 'Mutoh' started by Darion Judd, Sep 17, 2018.

  1. Darion Judd

    Darion Judd Member

    45
    4
    8
    Feb 13, 2017
    Attica, Mi

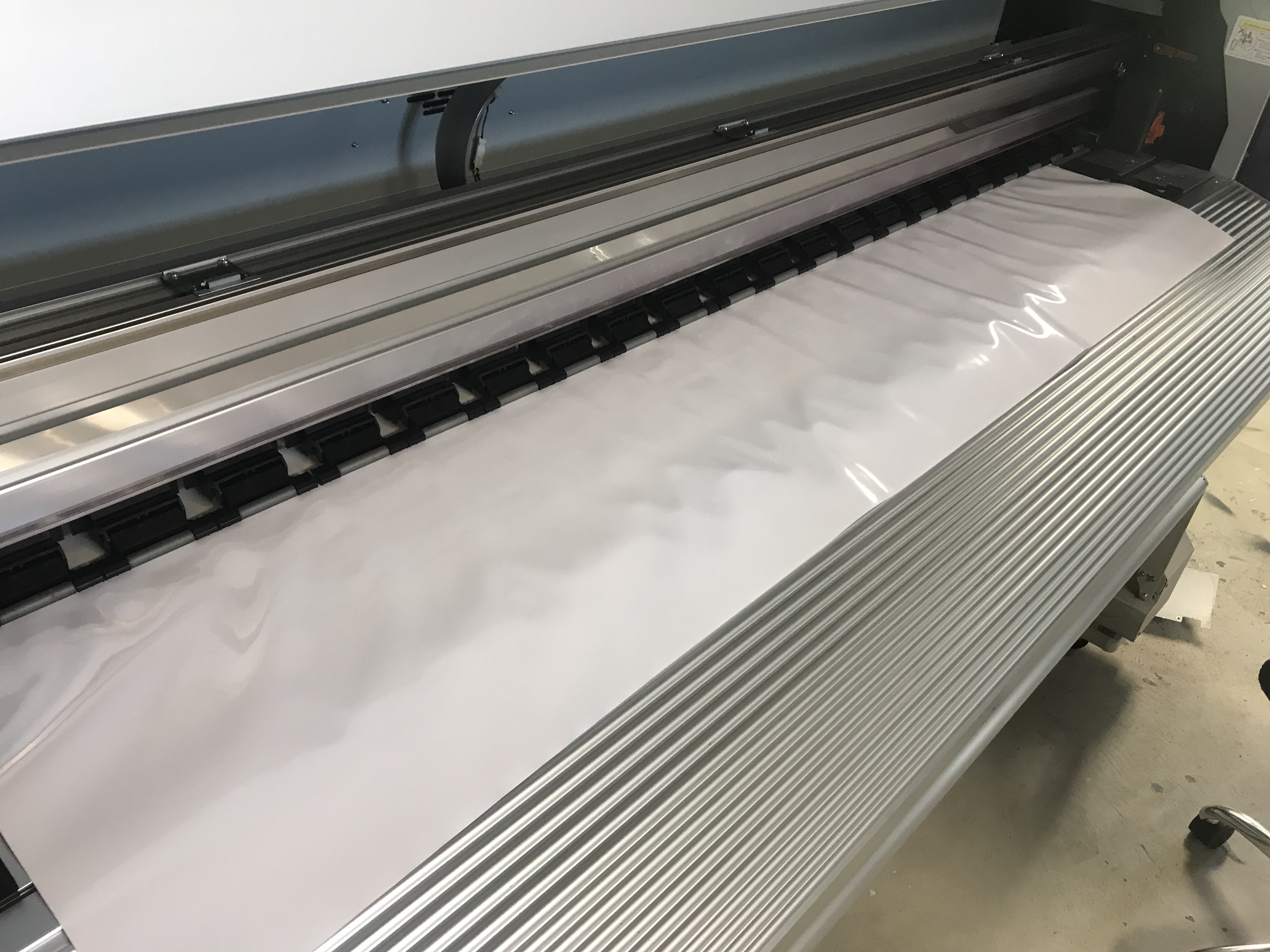

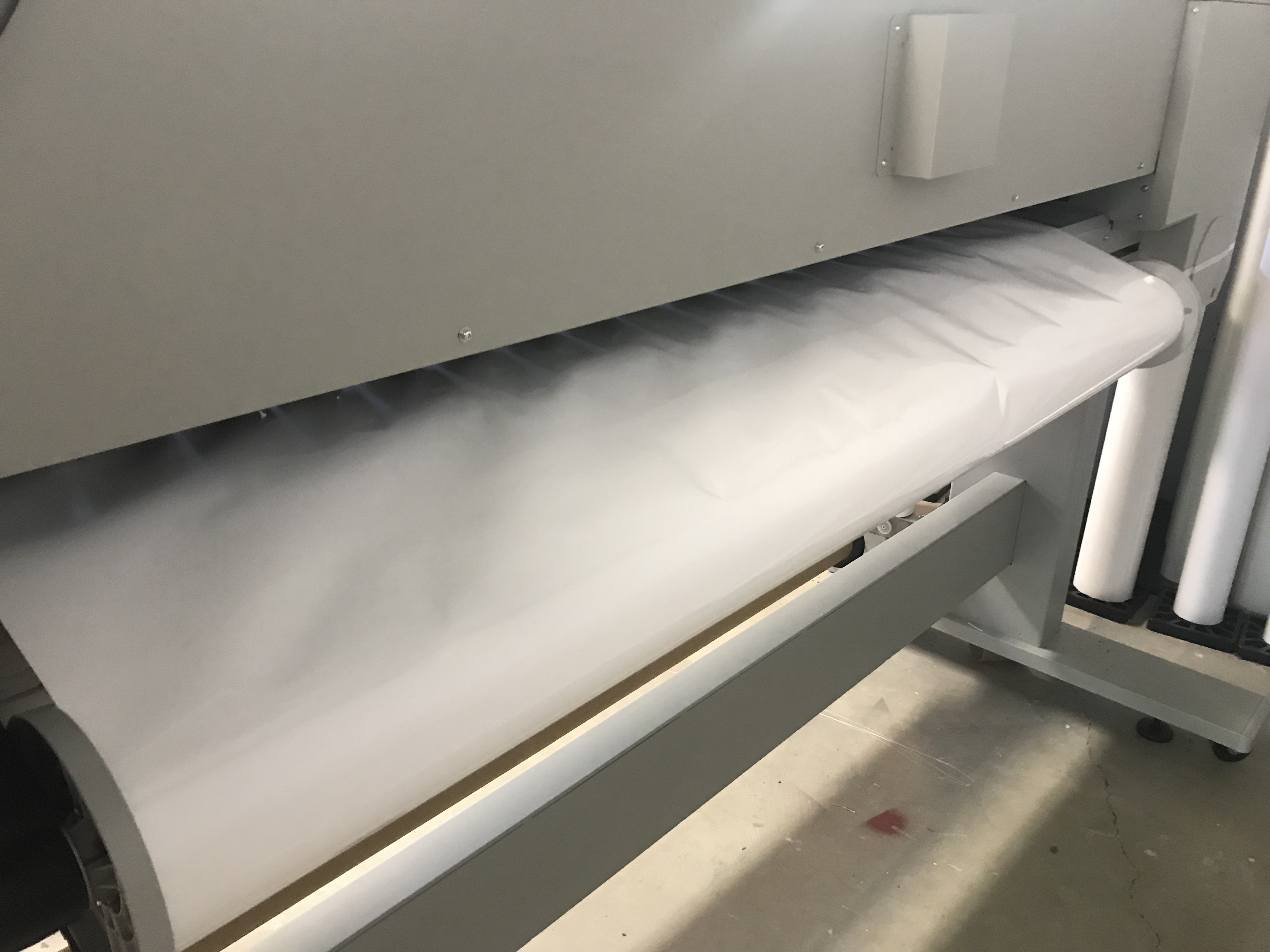

    This summer has been terrible for material shriveling up like this. Any advice on how to make this stop? Our humidity is around 50%


    Attached Files:

    Tags:
  2. DerbyCitySignGuy

    DerbyCitySignGuy Very Active Member

    1,033
    296
    83
    Dec 12, 2013
    Kentucky
    Only happens to us when we leave the media loaded for extended periods (more than a couple hours) without printing. Unloading the media is the only thing that we've found to prevent it. =/

    • Agree Agree x 1
  3. Darion Judd

    Darion Judd Member

    45
    4
    8
    Feb 13, 2017
    Attica, Mi
    Good info. Unfortunately this happens to us while its printing. Never quite as bad, usually only one little finger causing head strikes.

  4. Joe House

    Joe House Active Member

    972
    217
    43
    Feb 5, 2004
    WA
    That's pretty typical of vinyls that have a thin liner. Moisture gets into the liner and it will swell. It can also happen when putting a roll of cold media (like it just came off the truck in the winter) on the printer without allowing it to acclimate to the print room conditions - but obviously this is more of a winter time phenomenon.

    • Like Like x 1
  5. Solventinkjet

    Solventinkjet DIY Printer Fixing Guide

    4,295
    808
    113
    Aug 2, 2011
    Denver, CO
    That is not just your every day buckling. Either you left the material on there for a long time while the heaters were on and/or you have your heater settings set too high. Your pinch rollers look good from the picture but take a close look at them and see if any are eroding on the edges. Also, the humidity range for the machine is 40% to 60% which is mostly pertaining to the print head but maybe your material is especially sensitive to humidity? Might just call the manufacturer on to ask about that. Also, make sure you are loading the material in perfectly straight. If it's off by a lot it can cause this type of issue as well.

  6. Gino

    Gino Premium Subscriber

    33,939
    2,500
    113
    Jun 7, 2006
    PA
    Just loaded a roll of material in and started printing. Rolled off the slack and somehow, it caught up faster than anyone had seen. With a little too much pressure/weight pulling, it buckled a little bit. Didn't cause any harm, but it looked similar to your problem, just a different machine.

  7. unmateria

    unmateria Member

    65
    2
    8
    Nov 30, 2017
    zaragoza
    Reduce Heat and vacuum

  8. mmblarg

    mmblarg Member

    144
    32
    28
    Dec 1, 2015
    Rapid City, SD
    We never have it to that extent and so quickly, but for us it's a combination of heater setting and humidity. Try turning down your heat settings and possibly check out a dehumidifier.

  9. asd

    asd Member

    303
    20
    18
    Aug 13, 2007
    colorado
    it happens in our shop sometimes with intermediate grade vinyl when we leave it in the printer overnight, but only the section that is sitting on the heater part of the printer,

  10. clarizeyale

    clarizeyale Member

    176
    42
    28
    Aug 25, 2016
    SF Bay Area
    ALWAYS unload your media (you can keep it on there, just not loaded up ready to print like in your photo). that and humidity I've learned can cause issues. Our humidity can range between 40-60%
