Dot Pattern with EDGE

Discussion in 'Gerber' started by David Snider, Jan 12, 2007.

  1. Not sure if this is possible or not.

    I have 96 inches of a 7 inch stripe that needs to fade from say 5% to 100%.

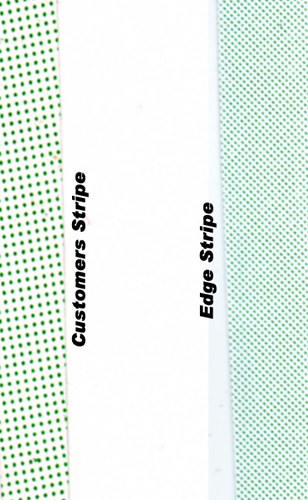

    In the attached picture you can see the dot pattern of the original stripe and the pattern the Edge is currently putting out. I know I can switch to classical dot but with the fade it breaks it down to wide bands of gradients. I need the stripe to start out like the original sample and gradiate to solid but with the starting pattern to look like it does in the pic.

    Any suggestions or input.


    Attached Files:

    Tags:
  2. Billct2

    Billct2 Major Contributor

    7,438
    632
    113
    Mar 12, 2005
    New England
    Try some samples with the different dot patterns available.
    try 4edgetalk.com for more advice

  3. Mike Paul

    Mike Paul Major Contributor

    5,438
    8
    38
    Dec 30, 2003
    NJ
    Lowering the LPI will make your halftone dots larger and help eliminate banding in the fade. Try GerberTone Long for the halftone setting.

  4. _SAi_

    _SAi_ Member

    39
    0
    0
    Jan 3, 2007
    I am pretty sure there is no way to control the EDGE's dot pattern like that. From what I remember, the dots and spaces are always equal. It look like your customer's dot pattern has small dots and larger spaces in between.

    If you choose Classical Dot, use something lower than 65 LPI to omit the banding in the fade. I find 70 LPI is good for halftones in small logos but not for any kind of fade.

  5. a2p geoz

    a2p geoz New Member

    8
    0
    0
    Nov 6, 2006
    David,

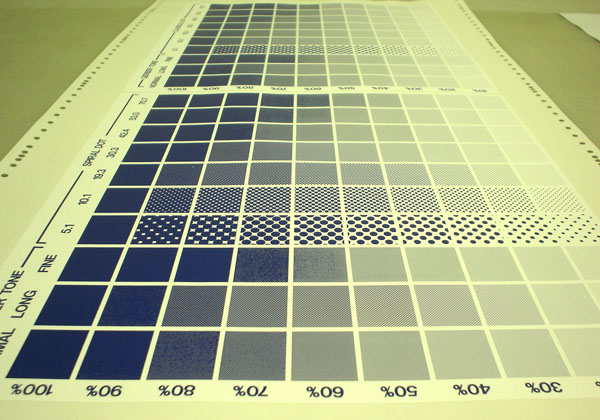

    It might be of help to print out this chart I made years ago. This should allow you to clearly see the various dot sizes & relative colour percentages.

    Rename & remove the ".txt" extension (couldn't attach the file otherwise).

    Regards,

    George Zerbino


    Attached Files:

  6. Skeezix

    Skeezix Member

    26
    1
    3
    Oct 25, 2006
    Playa Del Rey, California
    can't seem to open but really want to


  7. Lindsay

    Lindsay Member

    39
    0
    0
    May 20, 2003
    Try this Rob
    Download and save the file. Don't change the file name.
    Open My Computer go to Tools/Folder options/ click on view tab.
    Untick " Hide extensions for known file types"
    Click apply/ok.
    Go to the file and remove the .txt from the name.
    Click yes on the "rename" warning.

    The file is now a plt file instead of a text file.

    I just imported in to Flexi but I think you may be able to open in Omega.Don't have Omega so I'm not sure there.

    Lindsay

  8. iSign

    iSign Major Contributor

    13,027
    31
    48
    Nov 29, 2003
    Kahului, Maui
    Thanks George.
    DL'd it last week... finally printed it tonight!


    Attached Files:
