Edge FX Fatal Error 633

Discussion in 'Gerber Omega, Graphix Advantage & MacImprint' started by romain, Dec 17, 2019.

  1. romain

    romain New Member

    6
    0
    1
    Oct 17, 2019
    Europe
    Hi,

    Someone as already the fatal error 633 on his gerber edge FX ?

    Thanks in advance for reply.

    Tags:
  2. Jburns

    Jburns Active Member

    797
    157
    43
    Jan 19, 2009
    Denver
    Here - check voltage ( ONLY if you can safely) off power supply wires to head. and cable connections


    Depending on your printhead resistance range- voltage to head should be between 17.9 to 21.2. This level is critical depending on resistance printed on the head.

    Last edited: Dec 17, 2019
  3. romain

    romain New Member

    6
    0
    1
    Oct 17, 2019
    Europe
    thanks a lot for your quick answer

  4. romain

    romain New Member

    6
    0
    1
    Oct 17, 2019
    Europe

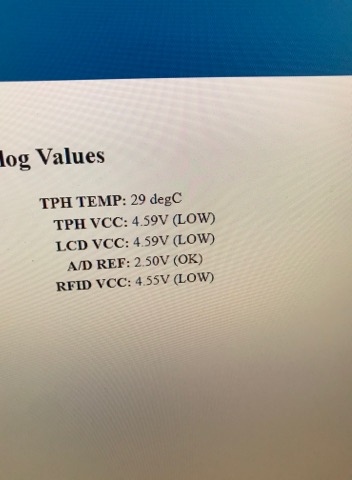

    I have this when i have a fatal error.
    if i turn off the gerber and on.
    i see that the voltage is higher...


    Attached Files:

  5. romain

    romain New Member

    6
    0
    1
    Oct 17, 2019
    Europe
    someone can help me?

  6. Jburns

    Jburns Active Member

    797
    157
    43
    Jan 19, 2009
    Denver
    I think your voltage should be closer to 5.10 for TPH, LCD and RFID.

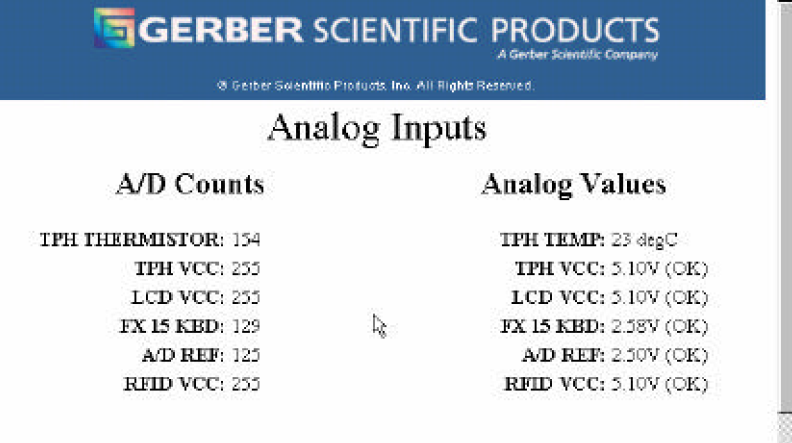

    This is a reference picture

  7. romain

    romain New Member

    6
    0
    1
    Oct 17, 2019
    Europe
    ok but how can we change it?

  8. Jburns

    Jburns Active Member

    797
    157
    43
    Jan 19, 2009
    Denver
    Check your connections, and cables to the LCD, etc. I dont know where to adjust the lower ( 5 volts ). The printhead has a potentiometer to adjust. Again, do not open or adjust if you dont have electrical experience.

  9. Jburns

    Jburns Active Member

    797
    157
    43
    Jan 19, 2009
    Denver
    What is the OHMS rating on your printhead?

  10. Joe House

    Joe House Active Member

    973
    218
    43
    Feb 5, 2004
    WA
    NOTE: If you're not familiar with electronics or working with electrical circuits, please leave this to a qualified technician.
    This is the 5 volt circuit (logic) not the (more or less) 20v circuit that fires the head. Also, it is showing low on both the print head and the LCD. This could be your:
    A. - incoming voltage - check with a volt meter
    B. - power supply - check with a volt meter
    C. - cable from the power supply to the Main board - check with a volt meter
    E. - Main board - If all else checks out, this is probably the culprit.

    Good Luck

    • Like Like x 1
  11. romain

    romain New Member

    6
    0
    1
    Oct 17, 2019
    Europe
    Hi, thanks for all informations, we have normally find the problem, a component on the main board.
    We are going to change it
