Edge question

gabagoo

New Member
My memory fails me, but is it possible to send a cmyk bitmap through to the edge and print it in white? I was pretty sure you could do that but forget how.


Fred Weiss

Merchant Member
Open your image in Composer.

cmyk to spot 01.jpg

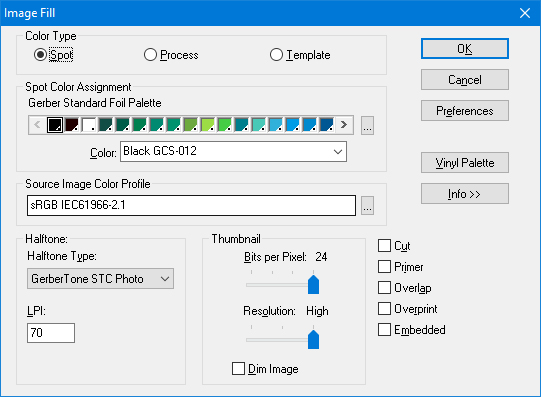

Select it and go to Image Fill dialog (Shift +1)

cmyk to spot 02.jpg


Change from Process to Spot and select desired foil color. In this case I am selecting black for purposes of viewing.

cmyk to spot 03.jpg


Click OK and you're ready to print.
