Envision 375 Cable wiring pin out help

Discussion in 'Gerber' started by extreme-graphics, Oct 3, 2020.

  1. extreme-graphics

    extreme-graphics jason

    34
    0
    6
    Oct 30, 2009
    United Kingdom

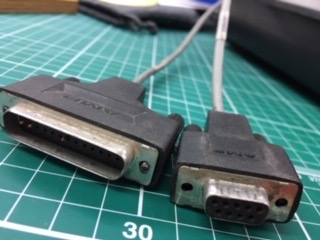

    Ive just brought a backup edge 2 printer and it came with an envision 375 but I did not get any cables with it. Not a problem I thought as I have a GS15+ but I keep getting an error 25 message on the envision, as you can see the GS15 cable only has 3 pins and works perfectly on the GS15, so I can only assume the Env 375 uses a different cable, so if any one know the wiring pin out of the cable I’ll make one up. The GS15 has a Pinot of db9 pin 2 to 2 db25 pin 3 to pin 3 db25 and pin 5 to pin 7 db25

  2. netsol

    netsol Active Member

    839
    120
    43
    Apr 26, 2016
    englishtown, nj
    rs232 serial only uses 3 pins, data in, data out & common ground

    there are 5 settings that need to match between the port on the computer & the plotter

    my guess would be one of these is different.

    the envision may be a different speed(?)

  3. netsol

    netsol Active Member

    839
    120
    43
    Apr 26, 2016
    englishtown, nj
    9600 speed
    8 data bits
    1 stop bit
    none parity

    seems to be default

    i am not really expert on envision settings

    thesettings for the port on the computer have to match the settings displayed in your settings on the envision

  4. extreme-graphics

    extreme-graphics jason

    34
    0
    6
    Oct 30, 2009
    United Kingdom
    Yes I have the settings as per you details and the manual. The GS15 works ok with the genuine 3 pin cable. My guess is a null modem cable db9 to db25 will work, just thought I’d check out if anyone knows the correct pinout before I try.

  5. Jester1167

    Jester1167 Premium Subscriber

    With my old Graphtec 3100 100 I had to buy a crossover adapter, then I bought a USB adapter for the computer because it was cheaper than a serial card. That may or may not help...

  6. Jester1167

    Jester1167 Premium Subscriber


  7. netsol

    netsol Active Member

    839
    120
    43
    Apr 26, 2016
    englishtown, nj
    you do not need a crossover.
    that reverses data in and data out
    the fact you get an error means the cable is correct

    can you check the port settings in windows and make sure they match the plotter.
    go to device manager, ports, choose com port choose your port, properties, then advanced
    you will need to restart computer if you make a change

    not sure what software you use, you should check, if omega settings need to be changed but if you don't get anywhere i will send you instructions to test plotter from hyperterminal

    envision can use more than one plotter language, but i have never had the experience, so i will need to do some reading on the topic

  8. extreme-graphics

    extreme-graphics jason

    34
    0
    6
    Oct 30, 2009
    United Kingdom
    Last edited: Oct 4, 2020
  9. extreme-graphics

    extreme-graphics jason

    34
    0
    6
    Oct 30, 2009
    United Kingdom

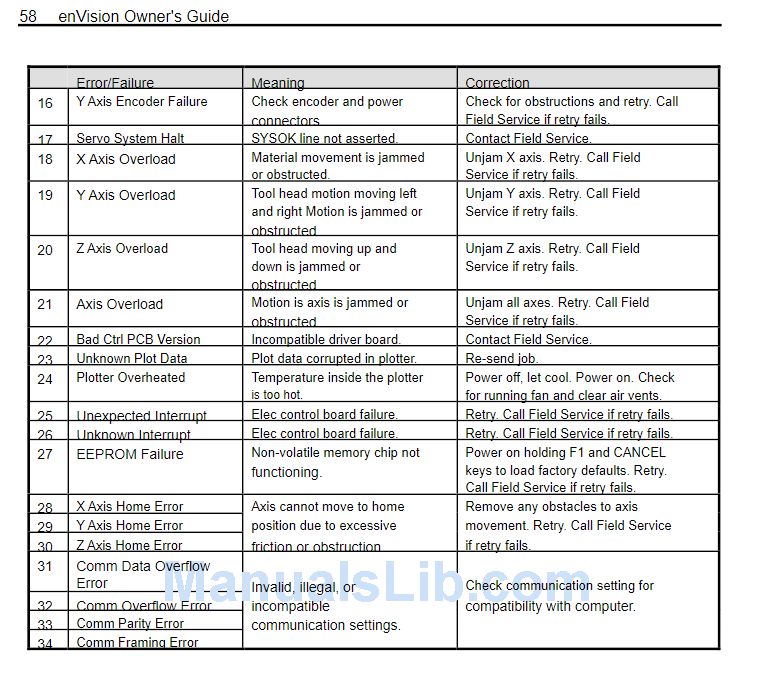

    Yes the com ports detail are correct in the settings for tenV 375 if I use the GS-15 with the same comport setting com port 3 it cuts on the GS with no problems. It’s only when I send the data to the enV-375 I get the error 23 " unknown plot data " I believe a null modem cable is a crossover cable.

  10. Attila Nagy

    Attila Nagy Member

    47
    8
    8
    Sep 24, 2018
    London
    This is what I have:

    DB9 DB25
    1. – 20.
    2. – 2.
    3. – 3.
    4. – 6,8.
    5. – 7.
    6. – 20.
    7. – 5.
    8. – 4.
    9. – Not Connected.

  11. extreme-graphics

    extreme-graphics jason

    34
    0
    6
    Oct 30, 2009
    United Kingdom
    Thank you everybody for your help, much appreciated I found a workaround that should keep me going, I accidentally sent the cut file to the enV-375 and it worked perfectly however I’d actually sent the cut file from the GS-15 profile, but it’s worked perfectly
    hopefully I don’t run into problems when I’m doing longer cutting runs. And thank you Attila i’ll go ahead and make a cable up with the pin outs you have sent and give it a go and report back.
