FC4100-75 Parts Needed

Discussion in 'Graphtec' started by Hightech Signs, May 10, 2013.

  1. Hightech Signs

    Hightech Signs New Member

    1
    0
    0
    Mar 31, 2009

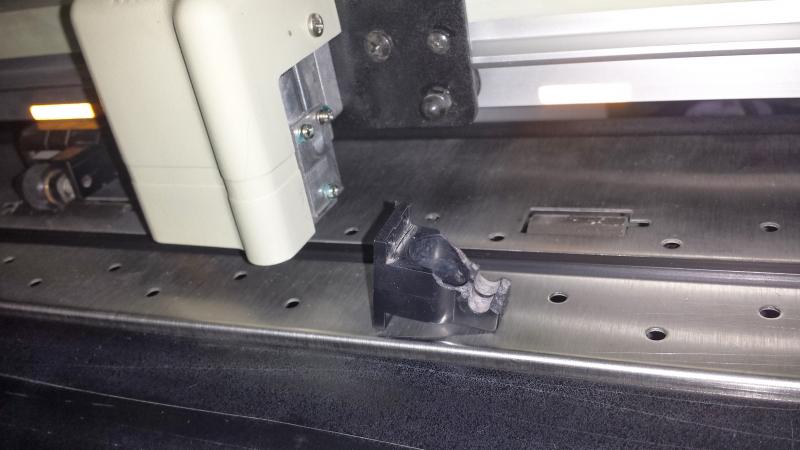

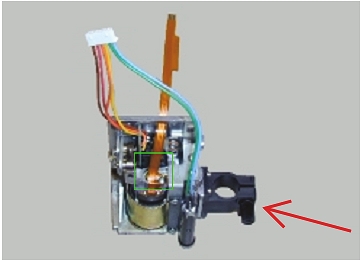

    I need the carriage that holds the knife holder. The screw thread is wallowed out and will not clamp down on the knife holder tight. I ordered one from Graphtec a few years ago for the same thing. They said thet are not carrying that part anymore. This plotter works great and I do not want to trash it for a small plastic part. Any help or advise would be great. I have attached a picture of the part. carriage.jpg

  2. nopalito24

    nopalito24 Member

    71
    0
    6
    Feb 4, 2010
    So Cal
    hello, I also used to have one of these and have some left over parts including a new pen block(cutting head) if you are interested. will like to sell the hole thing as an assembly. let me know via private massage.

  3. BlissSigns

    BlissSigns New Member

    3
    0
    0
    Jun 20, 2013
    I am in the same boat..

    I recently acquired a FC4100 plus and it has the same issue, a broken blade holder holder..

    My naive thought was, "of course graphtec will have this oh so simple mass produced plastic part in stock and cheap..."

    I got the same response from them that they no longer support the product and no longer have the part. Dang...
    So does anyone else have a parts machine?
    Does anyone have an idea where to find this part?

    I am bummed that a sweet workhorse of a machine may be done for because of a chintzy plastic piece.

  4. mpn

    mpn Active Member

    737
    22
    18
    Aug 6, 2011
    Location
    I have one thats' not in use. Make an offer via pm.


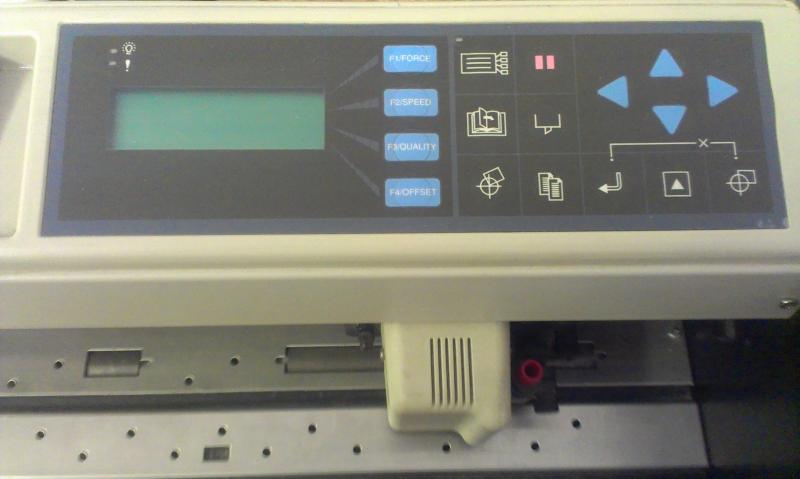

    Attached Files:

    • OMG / Wow! OMG / Wow! x 1
  5. BrushBro

    BrushBro New Member

    1
    0
    1
    Mar 7, 2019
    Azusa, Ca
    New here,

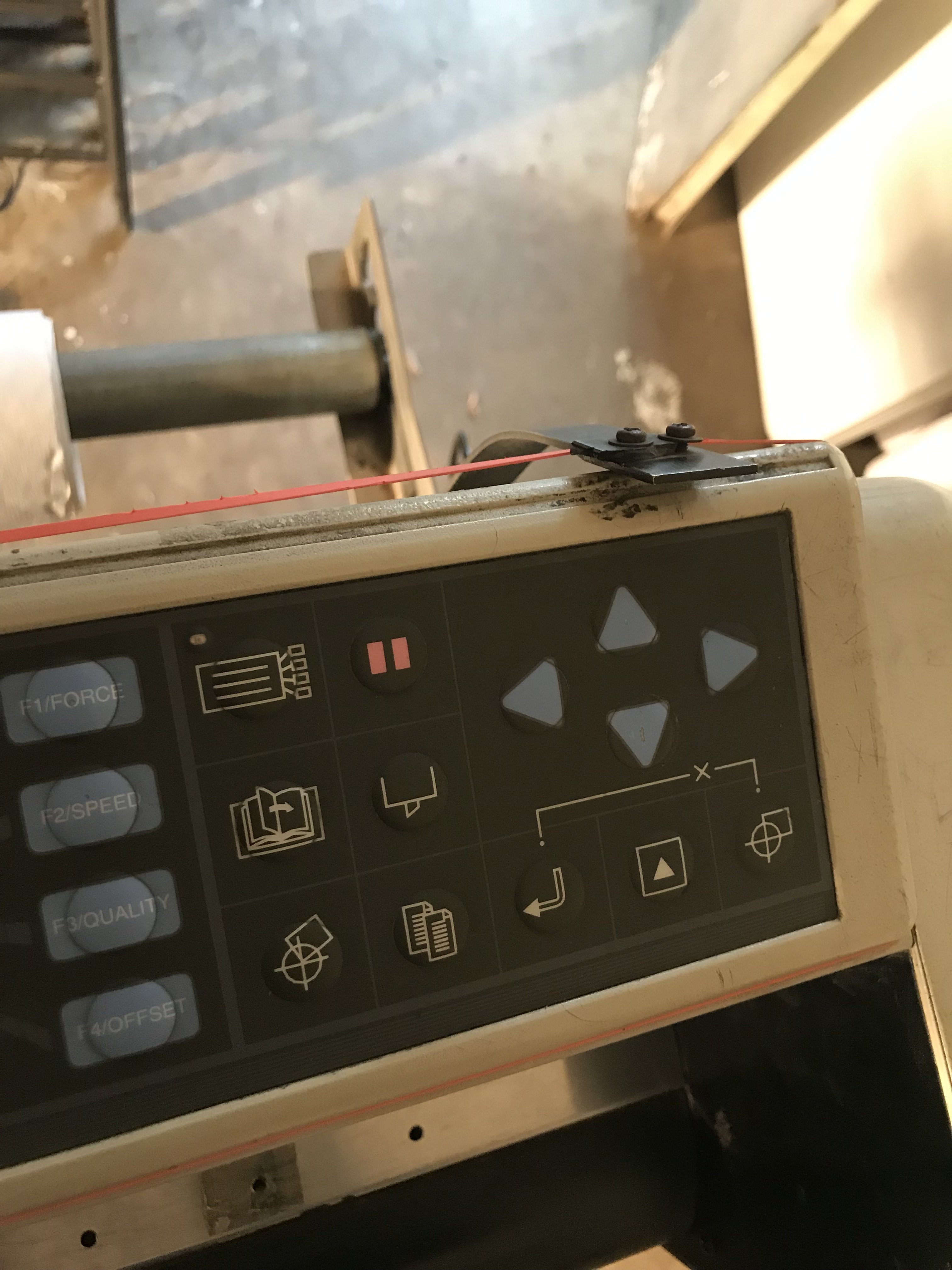

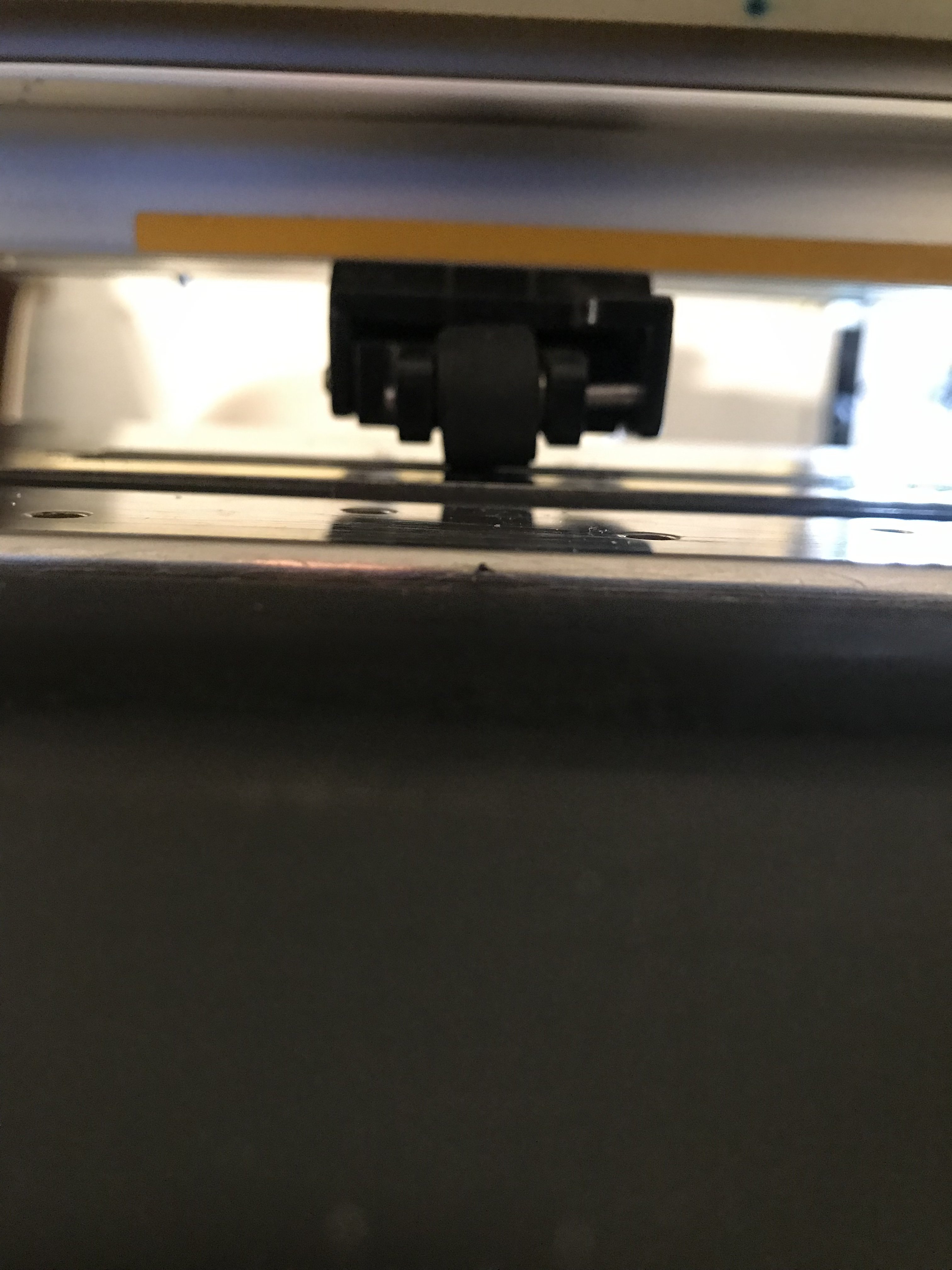

    Does anyone have an extra push and pinch roller along with a the handle? I’m not sure why or if the pinch wheel is supposed to be super tight when I pull the handle to hold my paper. The handle is also broken and I just bought it, used, thinking I could order the parts online....but guess what....nothing. The problem that I’m having is that when I pull the handle and wrap it with a rubber band to cut, the pinch wheel is too tight to the roller on the bottom. The other 2 seem to hold the paper and spin but the far right one gets stuck because of the tightness. Here are pictures.

    Please help, any info is useful.

    P.s. I tried removing the wheel, it seems to be stuck because the previous owner did something to it. I removed the other 2 just fine with no problems.


    Attached Files:

  6. Sign Works

    Sign Works Very Active Member

    1,548
    65
    48
    Nov 25, 2006
    Sacramento, CA
    My FC4100-75 still functions beautifully every day, 20 years now. No employees ever so there's no one abusing, cutting on or overtightening crap, life is good.

  7. netsol

    netsol Active Member

    742
    102
    43
    Apr 26, 2016
    englishtown, nj
    there would never be a need to to trash the machine for such a minor, 20 minute repair (original post)

    just drill out the hole to the size for the next largest screw size, then thread with a tap
    $20 at home depot, or grainger. (drill bit, tap and handle to hold the tap)

  8. ABF Graphics

    ABF Graphics New Member

    4
    0
    1
    May 5, 2020
    Missouri
    Where would you get a pinch roller for the machine? Just to verify I am talking about the Graphtec FC4100-75. The rubber on one of the pinch roller wheels separated from the metal section. Looks like a drag racer wheel.
