First for our shop

Discussion in 'Portfolio Board' started by sballinger, Apr 5, 2013.

  1. sballinger

    sballinger Member

    78
    0
    6
    Jul 31, 2012
    Sycamore, IL

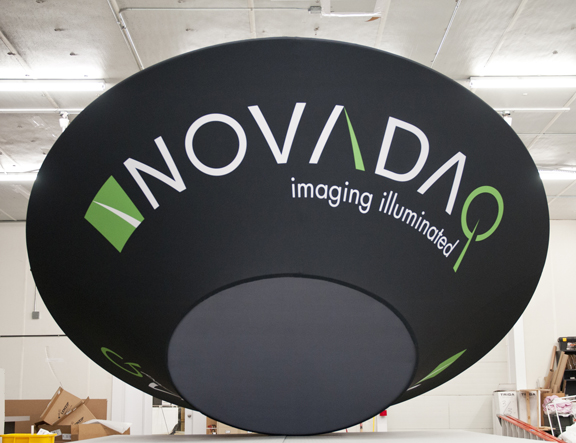

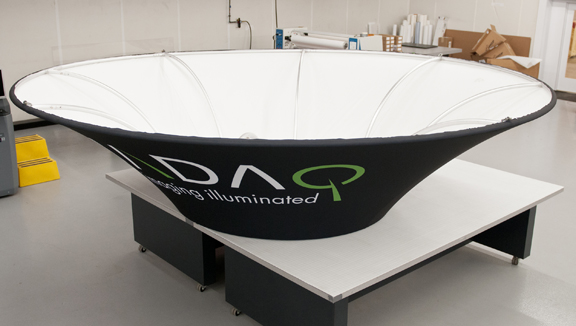

    It's been two months of tension fabric signs and this one is a first for us. A tapered circle. The math behind finding how to layout the artwork was the first hurdle but after that it was smooth sailing


    Attached Files:

    Tags:
  2. DKgrafix

    DKgrafix Very Active Member

    Nice

  3. paul luszcz

    paul luszcz Active Member

    521
    3
    18
    Feb 4, 2004
    Massachusetts
    Am I the only one dying to know the math?

  4. Billct2

    Billct2 Major Contributor

    7,461
    640
    113
    Mar 12, 2005
    New England
    cool

  5. Mosh

    Mosh Major Contributor

    5,809
    41
    48
    Oct 19, 2009
    Nerbaska
    neat.

  6. Sign Up Graphics

    Sign Up Graphics Very Active Member

    1,795
    1
    0
    Jan 8, 2007
    Sign Up Graphics

    :cool1:

  7. James Burke

    James Burke Being a grandpa is more fun than working

    3,431
    459
    83
    Jan 2, 2010
    Mitten State
    That's one sweet project, for sure.

    Ah yes...a problem from drafting 101. I've used both the (old fashioned) drafting board and AutoCAD to do ortho layouts for conical surfaces. Brings back memories.

    JB

  8. weaselboogie

    weaselboogie Very Active Member

    3,835
    9
    38
    Apr 23, 2006
    Us
    I can't imagine trying to figure that one out. Looks great!

  9. sballinger

    sballinger Member

    78
    0
    6
    Jul 31, 2012
    Sycamore, IL
    Ok, since you asked so nicely!

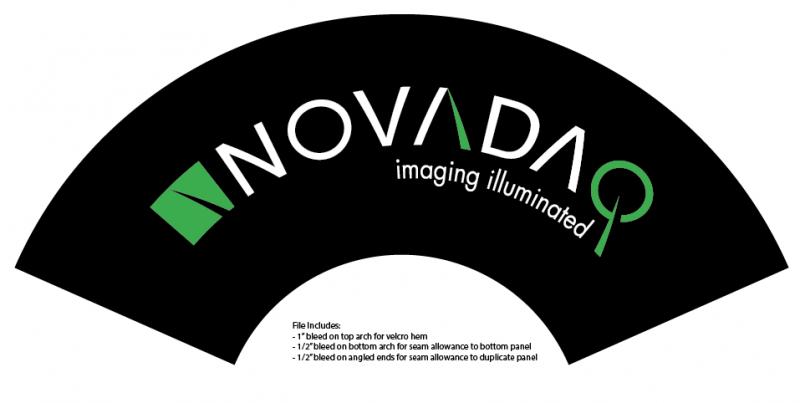

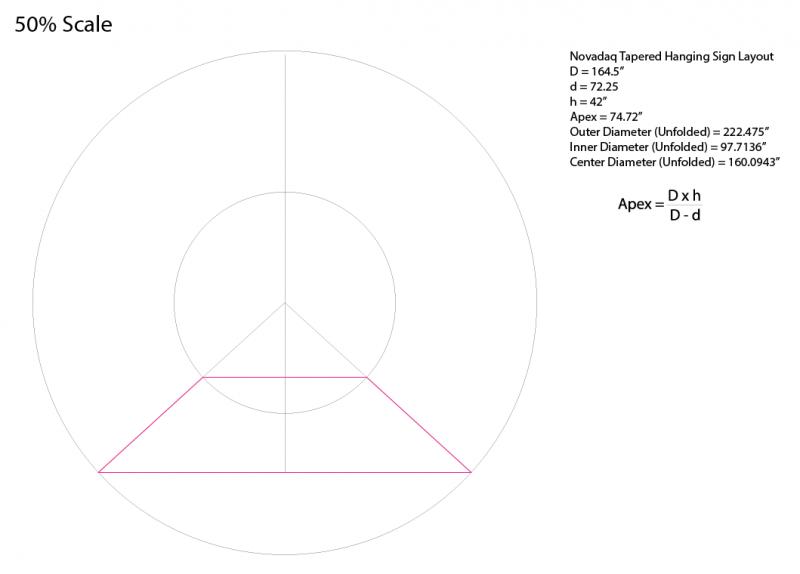

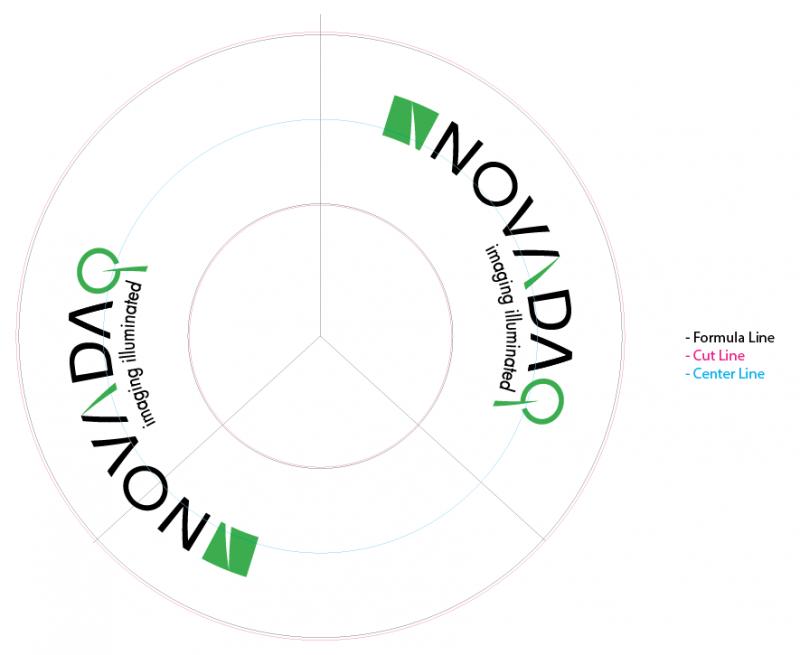

    I've attached three images, the formula and drawing from that (the pink shape is the front view of the frame) and then the other images show how the arc is determined and the final artwork that was printed twice


    Attached Files:

  10. KevSign

    KevSign Member

    273
    5
    18
    Apr 21, 2006
    Orange, CA
    I like the shop floor and table too :thumb:

  11. sballinger

    sballinger Member

    78
    0
    6
    Jul 31, 2012
    Sycamore, IL
    I remember when I didn't have room for those two tables in our old shop, now i've got 6- 5 x 10' rolling tables (two for the laminator) and the rest for fabric.

  12. Jillbeans

    Jillbeans Major Contributor

    14,457
    18
    38
    Dec 24, 2003
    Butler, PA
    I'm glad you figured it out...if I ever need something like that I will send the job to you.
    :)
    If it was painted I could probably do it OK though.
    Love....Jill

  13. Craig Sjoquist

    Craig Sjoquist Major Contributor

    6,746
    4
    38
    Jun 18, 2004
    Orlando
    Good figures , looks correct & all, not a easy one even with trail & error

  14. iprint

    iprint Member

    160
    15
    18
    Feb 22, 2012
    Arizona
    or path and error. lol jk.
    But seriously, nice job. I wish I could work with fabric like that.

    Edited to ask if you print the fabric in house and if so, what equipment are you using? Direct Sublimation, Transfer Sublimation? Heat press?

  15. sballinger

    sballinger Member

    78
    0
    6
    Jul 31, 2012
    Sycamore, IL
    We print some fabric in house, depends on if the client is renting the exhibit for 1-2 uses or purchasing for the long haul. Rental= fabric on our LX850 and Purchase= Dye Sub outsourced to another vendor
