Flex face sign replacement

Discussion in 'Electric Signs & Channel Letters' started by rfsign, May 2, 2011.

  1. May 2, 2011 #1
    rfsign

    rfsign Member

    25
    0
    0
    Jul 7, 2010

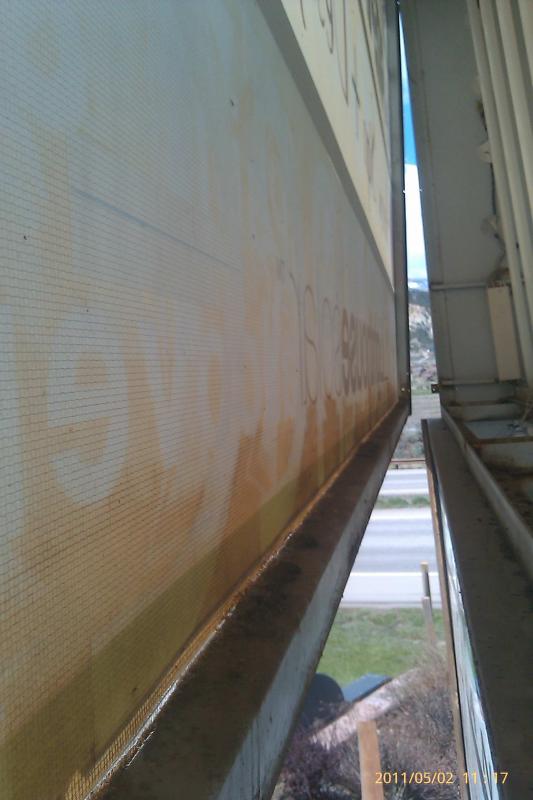

    Need help. Anyone experienced with replacing a face with this system? What do I need to do? Picture attached.


    Attached Files:

    Tags:
  2. May 2, 2011 #2
    J Hill Designs

    J Hill Designs Major Contributor

    15,549
    18
    0
    Sep 24, 2004
    there will most likely be some sort of tensioning system (ratchets, etc) within the swinging frame...tools needed depends on the manufacturer of the system

  3. May 2, 2011 #3
    rfsign

    rfsign Member

    25
    0
    0
    Jul 7, 2010
    Have you ever seen one like this? Trying to figure out who manufactured it so I can get some direction.

  4. May 2, 2011 #4
    Randy101

    Randy101 Member

    52
    0
    6
    Jan 4, 2007
    PA
    Looks like a custom made sign cabinet. Do you have any pics of what is holding the flex face from the front.

  5. May 2, 2011 #5
    jmb474

    jmb474 Member

    140
    0
    16
    Sep 25, 2006
    Bullhead City, AZ
    Yeah, its tough to help from that pic.

  6. May 2, 2011 #6
    rfsign

    rfsign Member

    25
    0
    0
    Jul 7, 2010

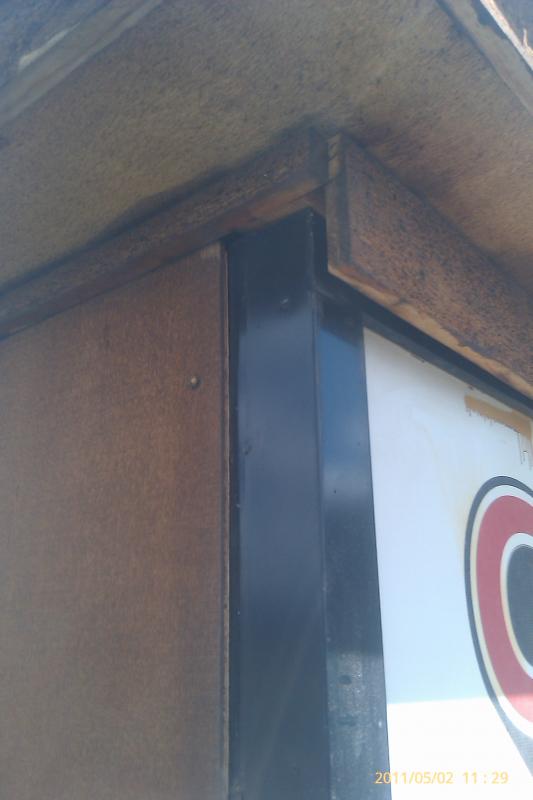

    The front has got an aluminium retainer with rivets.

  7. May 2, 2011 #7
    rfsign

    rfsign Member

    25
    0
    0
    Jul 7, 2010
    here is a picture. Not the best picture but a picture.


    Attached Files:

  8. May 2, 2011 #8
    J Hill Designs

    J Hill Designs Major Contributor

    15,549
    18
    0
    Sep 24, 2004
    rivets, eh? hmm what a pain...

  9. May 2, 2011 #9
    phototec

    phototec Very Active Member

    3,199
    22
    38
    May 23, 2008
    Belton
    I just completed my first Flex face sign replacement, it was a real b**ch, some have clips and or other mechanical tensioning systems, to pull the flex material tight on the frame. However, the one I worked on did not have anything like that, the old 3M PanaFlex face was pulled tight and stapled on the aluminum frame, it was a real challenge to replace the flex face for me. I was given lots of help from folks at Signs101, see this link, some of the tips may help?

    http://www.signs101.com/forums/showthread.php?t=78919

    :thumb:

  10. May 4, 2011 #10
    rfsign

    rfsign Member

    25
    0
    0
    Jul 7, 2010
    Figured it out for anyone who cares or runs into this in the future. I drilled out the rivets on the retainer and found that the flex material was screwed into the inner (square tube steel) frame with a lot of screws. No tensioning system. Thanks for your suggestions.
