studebaker

Deluded Artist
Since I have enjoyed the templates shared on this topic/conversation, I thought it only fair that I share also. The attached PDF is a template for the PROTERRA electric busses that many cities are adding to their fleet. Enjoy! The Forum software say the PDF file is too big to upload, so I am adding a link to download it off my server. http://lexi.graphics/NlMncy We'll see if that works.


jfiscus

Rap Master

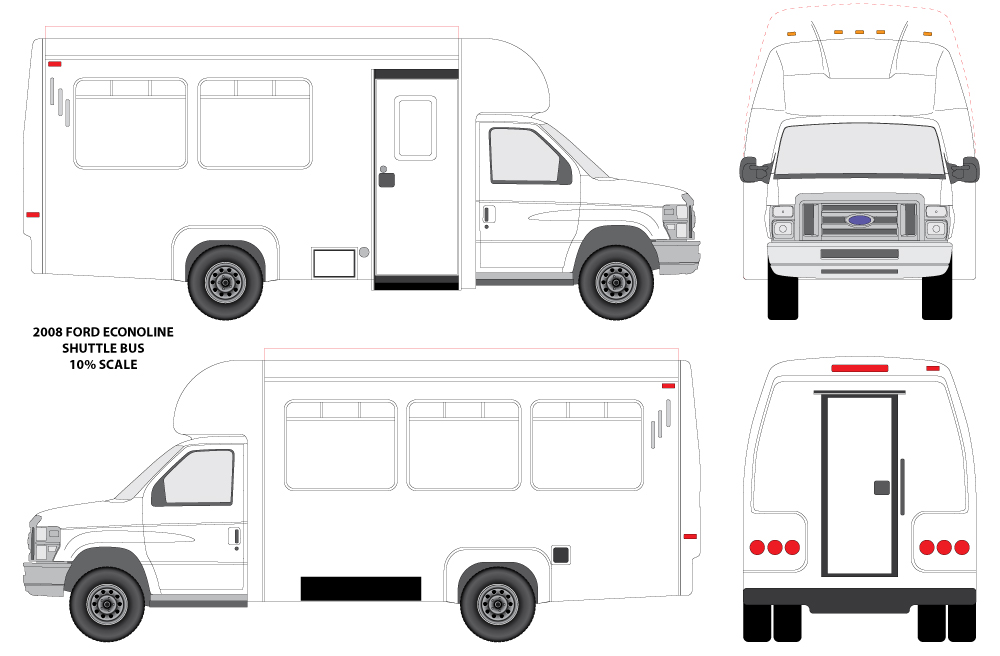

Attached is a Ford Econoline Shuttle Bus template, 10% scale. Enjoy!


Attachments

  • Shuttle-Bus-Template.jpg
    142.8 KB · Views: 834
  • Shuttle Bus Template.pdf
    630.1 KB · Views: 519

SightLine

║▌║█║▌│║▌║▌█
Just curious... have you had to create a template for those new fully electric buses yet? I have the CAD from Gillig - but it has so much crap I don't need, and it's not in proper layers. it's one of those 3 trillion layer files -where there are no lines, just segments.

I know it has been a bit but Astute Graphics has a couple of Illustrator plugins that work very well for cleaning up CAD files. I've used it myself for that exact same reason....


jfiscus

Rap Master

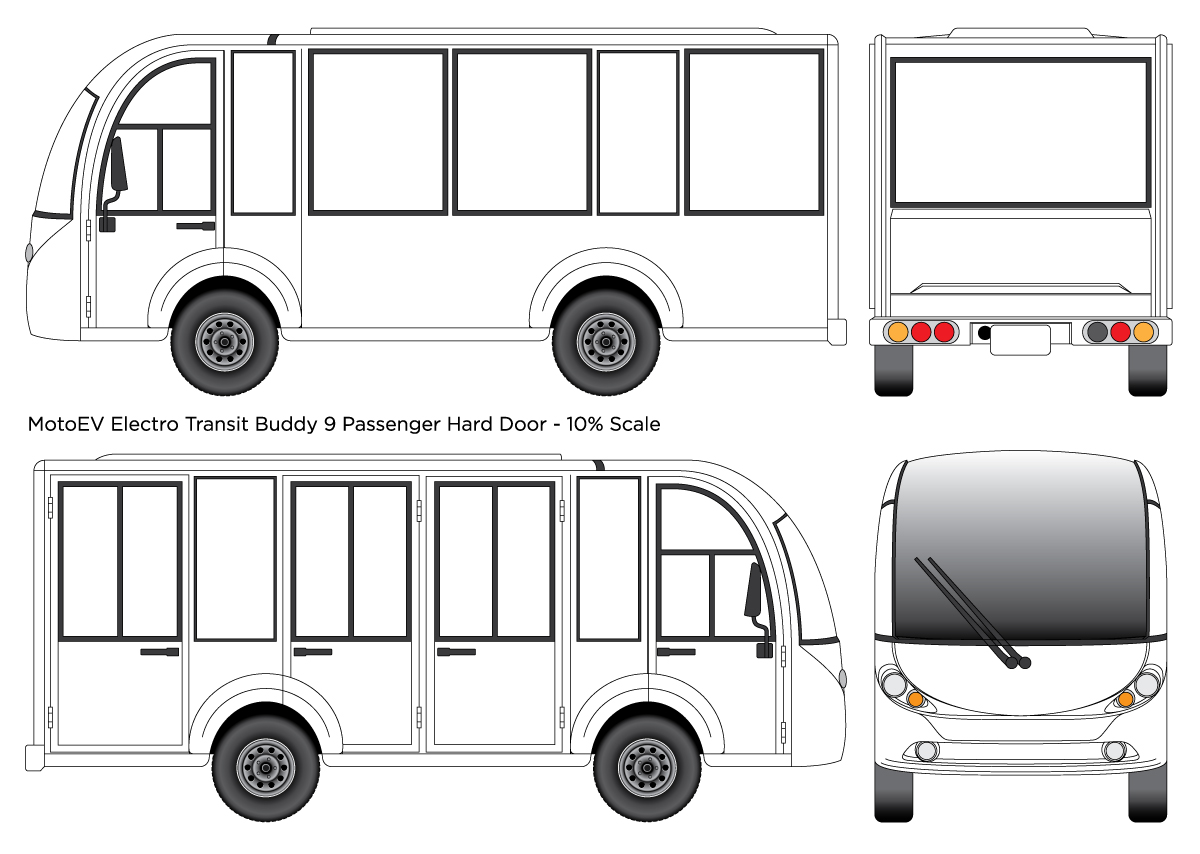

Here is a MotoEV Electro Transit Shuttle (9 passenger, hard door) that I just drew up.
10% Scale.


Attachments

  • Moto-EV-Shuttle.jpg
    210 KB · Views: 474
  • Moto EV Shuttle.pdf
    542.2 KB · Views: 366

jfiscus

Rap Master

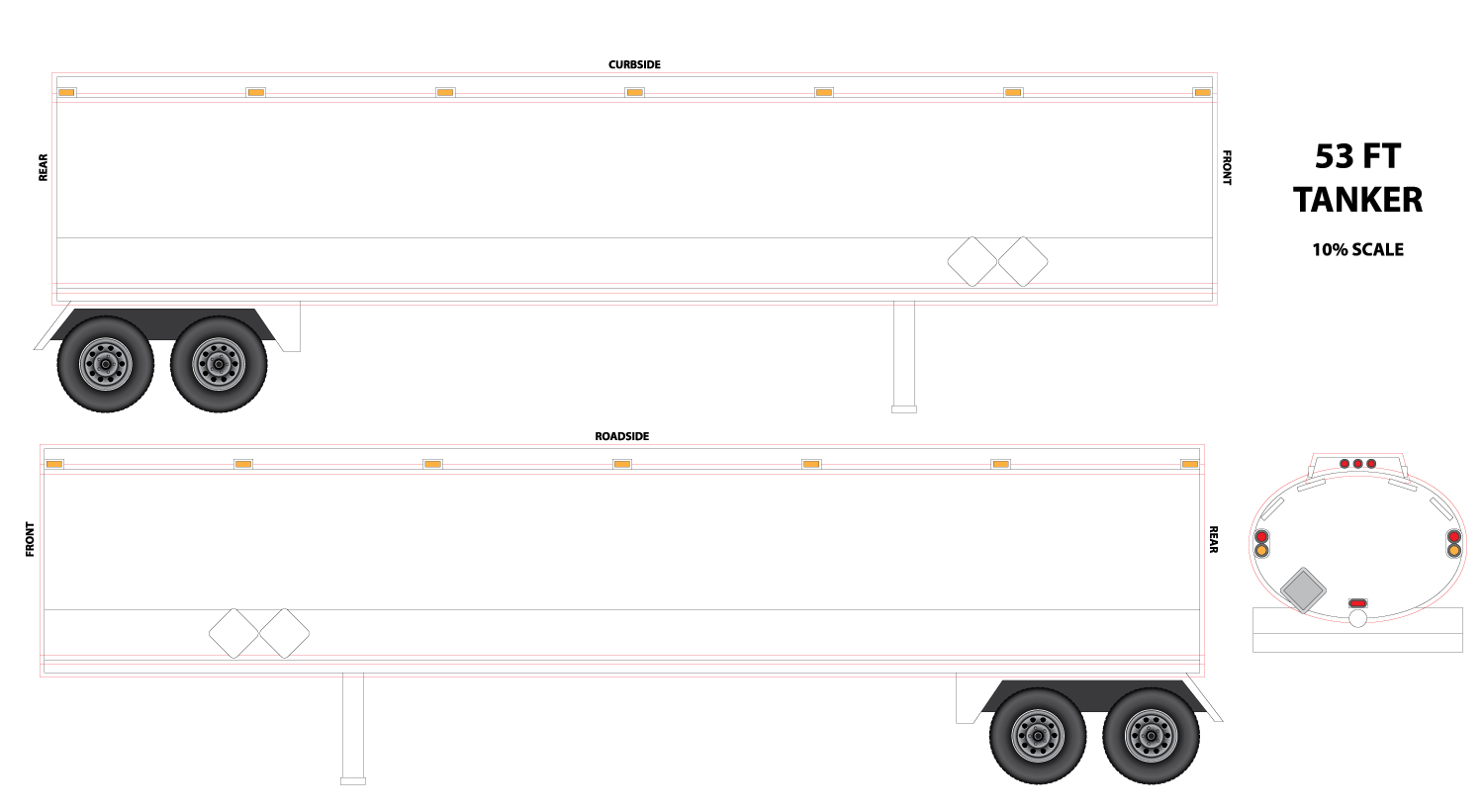

Here's a 53ft Tanker template, 10% scale!


Attachments

  • 53ft-Tanker-Template.jpg
    151.9 KB · Views: 405
  • 53ft Tanker Template.pdf
    496.8 KB · Views: 332

jfiscus

Rap Master

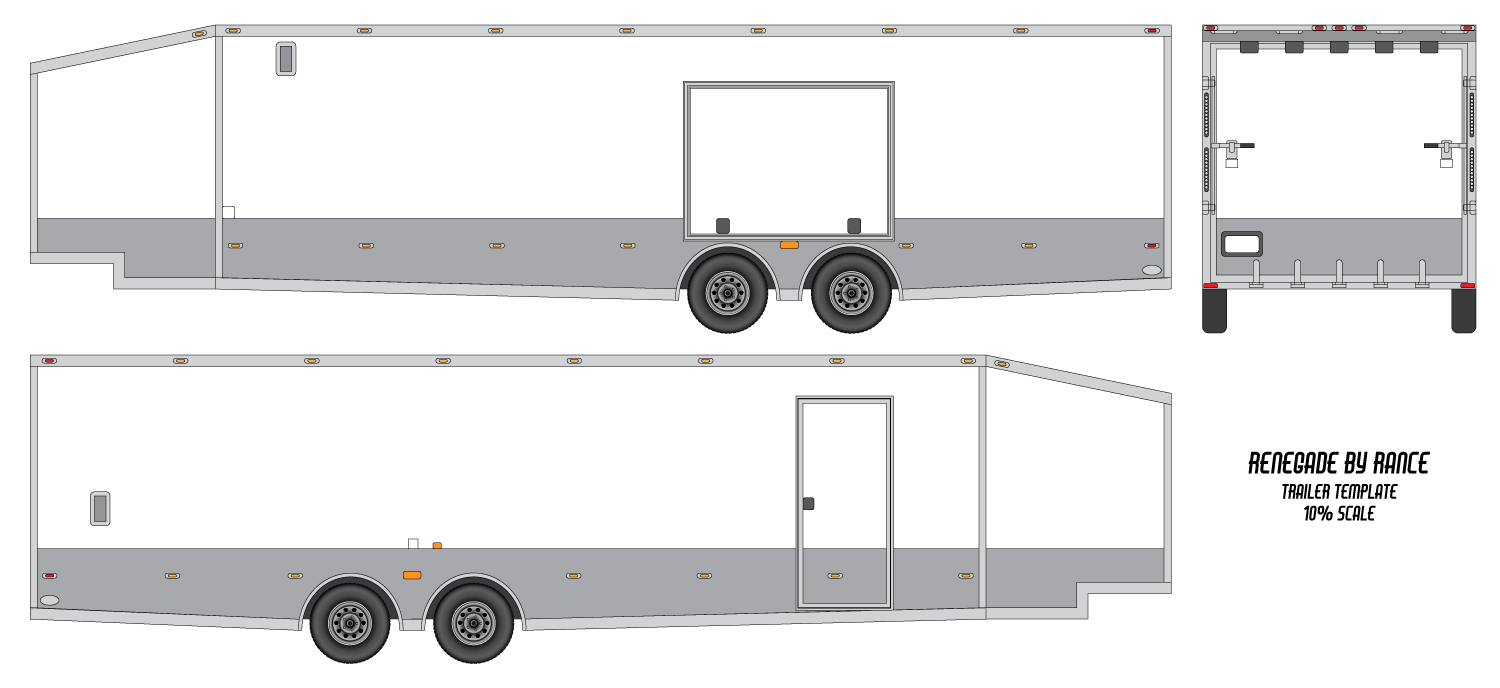

This is a template for a Renegade by Rance Enclosed Car Trailer.
10% Scale. It really does get shorter in the front.


Attachments

  • Renegade-Trailer-Template.jpg
    143.6 KB · Views: 387
  • Renegade Trailer Template.pdf
    543.2 KB · Views: 306

jfiscus

Rap Master

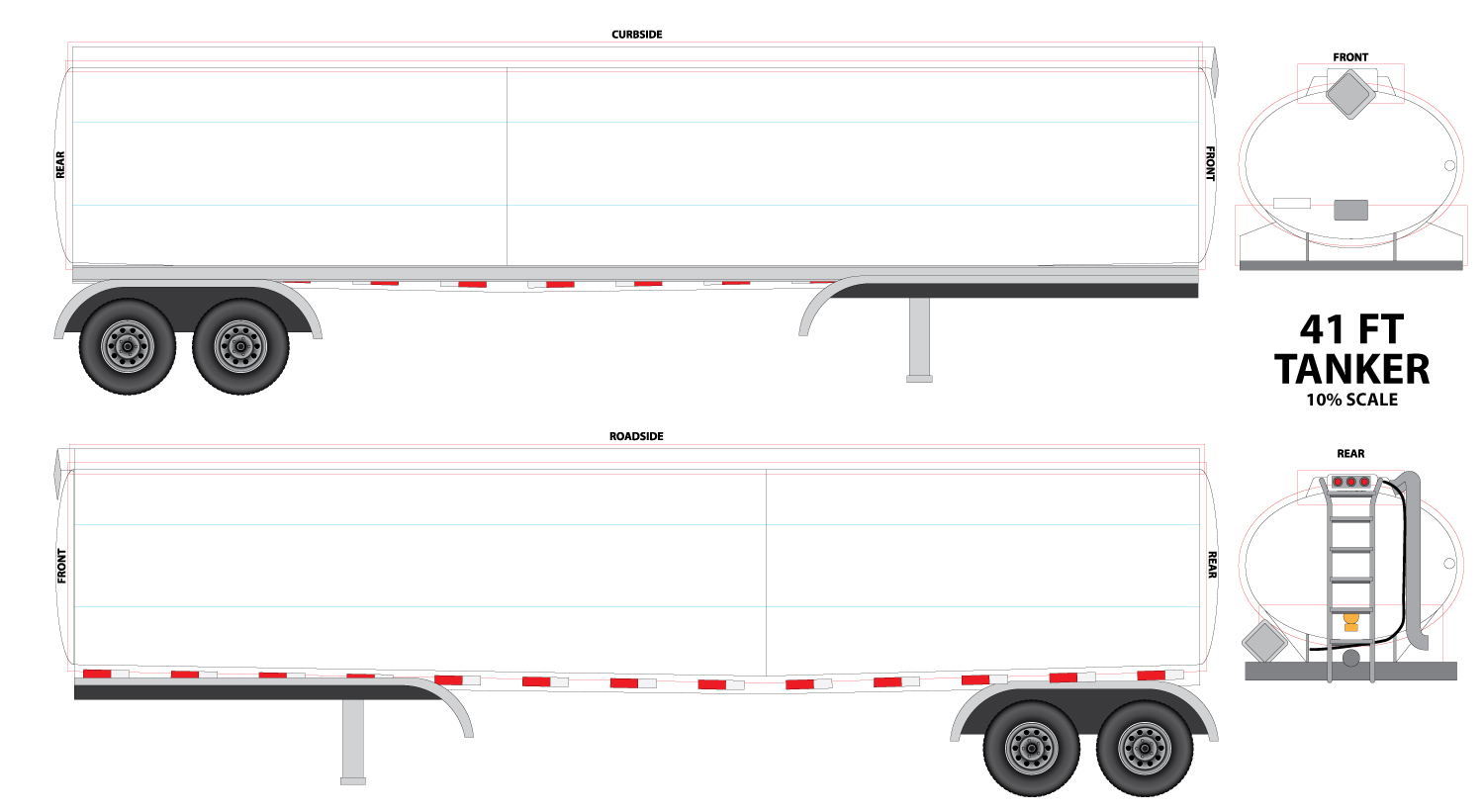

Here's a 41ft Tanker Wrap Template.
This one does a weird dip towards the middle, the installers are "excited" about this one!
The light blue area is the "safe zone" for legibility.


Attachments

  • Other Tanker Template.pdf
    529.3 KB · Views: 306
  • Other-Tanker-Template.jpg
    198.2 KB · Views: 393

jfiscus

Rap Master

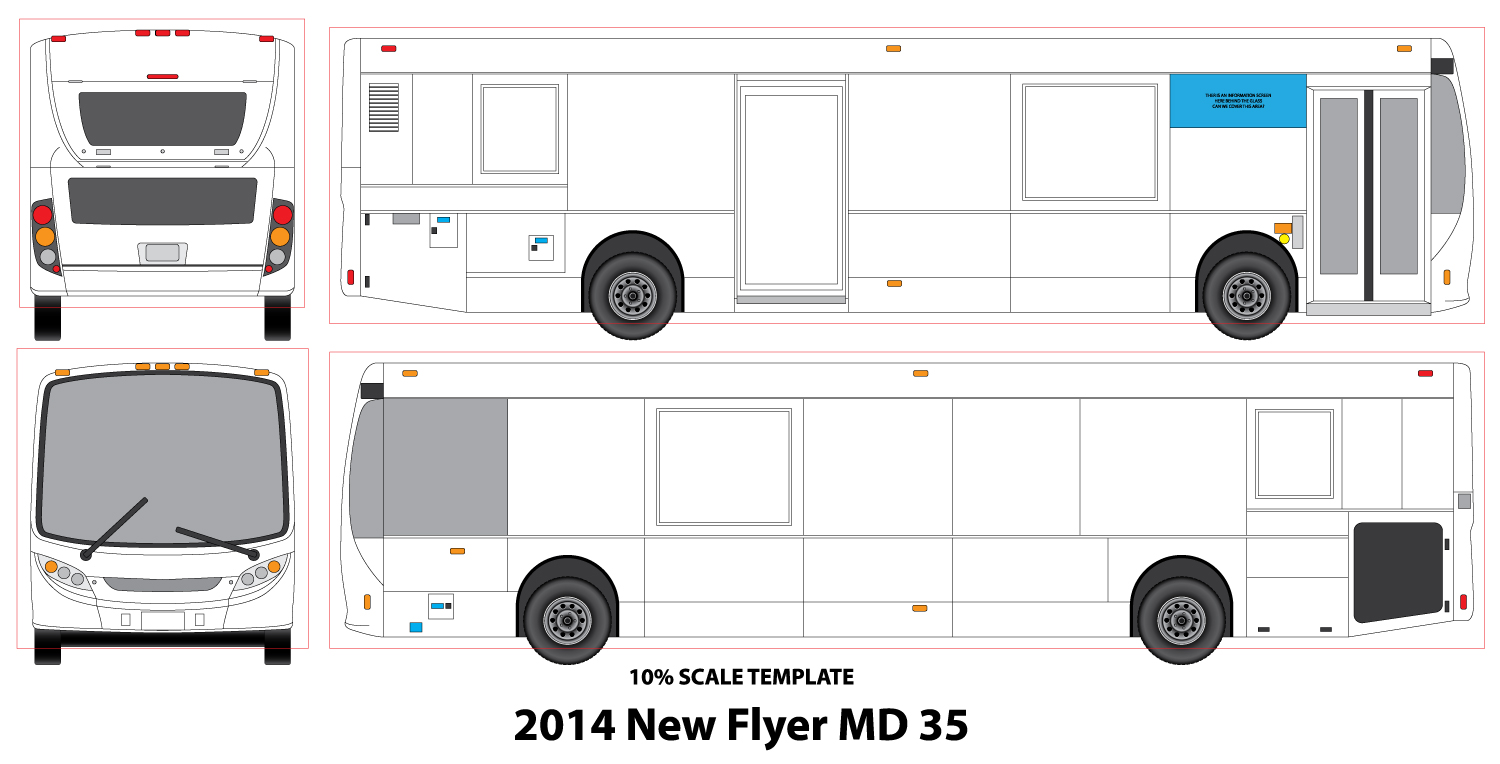

2014 New Flyer MD35
Template at 10% Scale!


Attachments

  • 2014-New-Flyer-Bus.jpg
    230.7 KB · Views: 423
  • 2014 New Flyer Bus.pdf
    545 KB · Views: 291
