Graphtec Help

Discussion in 'Graphtec' started by GrizzlyRockWorld, Aug 21, 2008.

  1. GrizzlyRockWorld

    GrizzlyRockWorld New Member

    5
    0
    0
    Aug 21, 2008

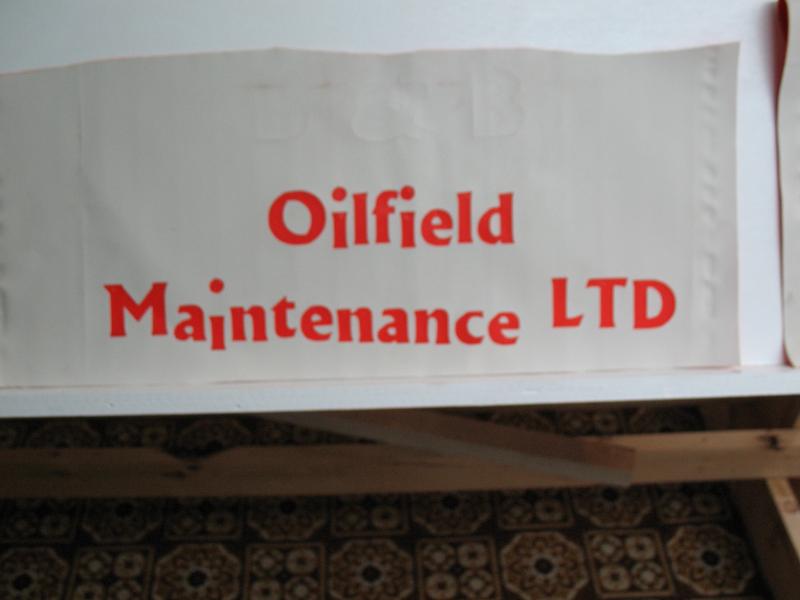

    Hey guys. I'm having trouble with the Graphtec. whenever I try to cut an image everything seems to get out of line. For example if I'm trying to cut the letters A B C D. A will be in one place and B will be almost a quarter inch lower then C will over lap D. At first I was using FlexiEXPERT 7.6v2 and tec support insisted that my problem was that it was not compatible with windows vista. So now $700 later I've upgraded to FlexiEXPERT 8.5v2 and am still having the same problem. so I spent almost all day on the phone with tec support yesterday and now they are telling me that the machine needs to be sent in for repair but they don't know what the problem is. Now be for I send off my machine and can't do any work for who knows how long I just want to make shore it is not a problem on my end. I'm new at this and don"t have much experience using a plotter so Maybe I'm doing something wrong like lining the material up wrong (but I don't think so) or maybe I'm using the wrong kind of material . the material I'm using is very thick I don't know what mil but its for sandblasting. I will try to upload some pictures of the problem.


    Attached Files:

  2. high impact

    high impact Very Active Member

    Looks like maybe the pinch wheels aren't moving the vinyl correctly. Why is the vinyl so indented where the pinch wheels ride???

  3. GrizzlyRockWorld

    GrizzlyRockWorld New Member

    5
    0
    0
    Aug 21, 2008
    pinch wheels

    I don't know that was one thing I was thinking but I don't think there is a way for me to loosen up on it i can only make them tighter.

  4. P Wagner

    P Wagner Very Active Member

    1,924
    83
    48
    Aug 16, 2006
    San Diego
    I would test using a pen tool and paper media, rather than the sandblast film that you are running. It looks to me like the media may not be designed for computer cutting, and the wheels are not gripping the media properly.

    Also, to isolate the plotter from the software, run the 'Cutting Pro' test from the control panel of the Graphtec.

    Bob

  5. GrizzlyRockWorld

    GrizzlyRockWorld New Member

    5
    0
    0
    Aug 21, 2008
    so if the 'cutting pro' test looks ok does that mean it's my computer

  6. GrizzlyRockWorld

    GrizzlyRockWorld New Member

    5
    0
    0
    Aug 21, 2008
    does this mean i haft to sent the plotter in for repair?

  7. Ken1f

    Ken1f Member

    203
    0
    0
    Mar 16, 2007
    Doesn't look like the pinch wheels are too tight to me, maybe too loose and letting the material move while plotting. Try loading the material back in and giving it a gentle tug. If you can move it by gently pulling I would try to tighten the wheels.

  8. BobM

    BobM Very Active Member

    2,148
    45
    48
    May 31, 2008
    Cape Cod
    Does it look OK on the screen? Does it print OK on a printer? If it's OK there check the pinch rollers and the advance drive motor on the cutter.

  9. GrizzlyRockWorld

    GrizzlyRockWorld New Member

    5
    0
    0
    Aug 21, 2008
    Looks Good on the screen and prints out just fine. what are some things I can do to check the pinch rollers what are some tests I can run. and what does that mean advance drive motor on the cutter

  10. theskipman_98

    theskipman_98 Member

    354
    0
    0
    May 14, 2007
    looking at the release liner on the right hand side it looks like the pinchroller hold down is "slipping" or something, but the one on the left looks fine.
    May want to check that the grit roller and pinch roller is clean (free of dust, liner, adhesive).

    Here is a link to how to load media and other helpfull hints. for the link go to the bottom under "Getting Superior Tracking" : http://www.graphtecamerica.com/insvdo-cuttingplotters.html
