GS15 plus issues. bad connectors?

Discussion in 'Gerber' started by alistair, Oct 29, 2020.

  1. alistair

    alistair Member

    71
    3
    8
    Jul 22, 2015
    uk
    I have a GS15 plus that I’m trying to fix and when I cut the test file I’m getting bad results, seems to be affected by the connectors that go from the motors to the board, if I wiggle the connectors I sometimes get better results. How can I get a more consistent connection? Replace the connectors? If so where would I find some?

    Tags:
  2. balstestrat

    balstestrat Member

    360
    43
    28
    Aug 25, 2020
    Europe
    Picture of those?

  3. Attila Nagy

    Attila Nagy Member

    47
    8
    8
    Sep 24, 2018
    London
    GS15 :). Can I fix it for you. The main time you can use my envision.

  4. alistair

    alistair Member

    71
    3
    8
    Jul 22, 2015
    uk
    I have an envision, this is a back up machine

  5. alistair

    alistair Member

    71
    3
    8
    Jul 22, 2015

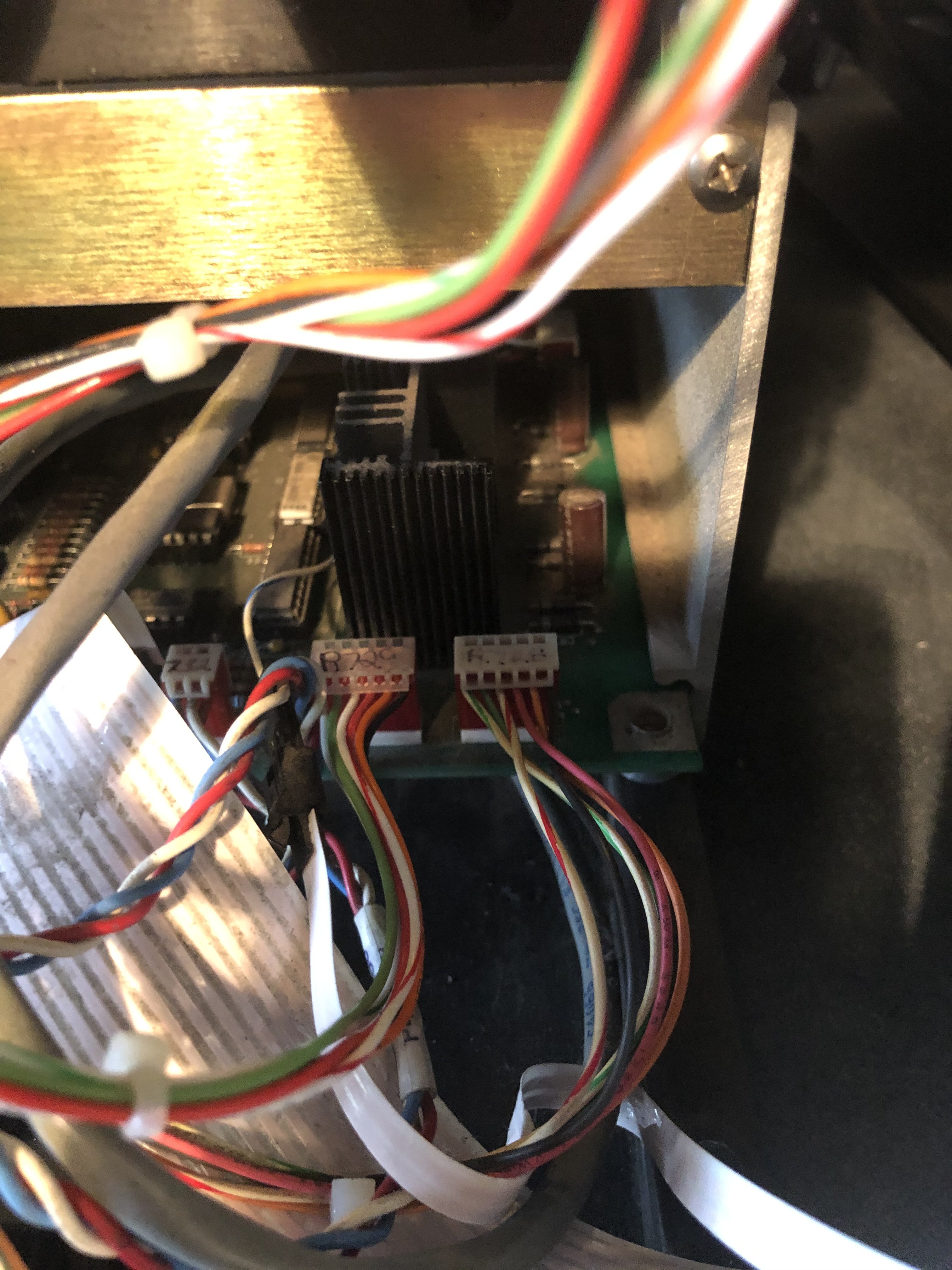

    uk

  6. balstestrat

    balstestrat Member

    360
    43
    28
    Aug 25, 2020
    Europe
    Well you can remove the pins from the connector and check if there is something wrong. Then you can take out the PCB and re-solder the connector/pins.

  7. Attila Nagy

    Attila Nagy Member

    47
    8
    8
    Sep 24, 2018
    London
    That connector hardly fails. Check soldering quality especially for the bigger parts or parts around heat sink. While you pressing the connector you possible bending the motherboard too. Once I had to replace the white ribbon cable for this machine.

    • Agree Agree x 1
  8. netsol

    netsol Active Member

    826
    115
    43
    Apr 26, 2016
    englishtown, nj
    attila

    you beat me to this one
    if th board is pulled out and flippe over, there will be a couple "ringed" connectors

    just resolder with a fullsize weller or other soldring gun
