Having trouble combining in X5

Discussion in 'Corel' started by Jillbeans, Aug 12, 2011.

  1. Jillbeans

    Jillbeans Major Contributor

    14,457
    18
    38
    Dec 24, 2003
    Butler, PA
    Hi.
    Still learning Corel X5 up from Corel 12.
    Having an issue when I break apart something.
    Meaning something with a part which should be open after it's combined.
    This isn't happening with letters (like an R or a B) it's with shapes.
    Although it happens sometimes with lettering inside a shape, such as inside a reverse panel.
    (that cuts fine when I send to my plotter but doesn't look right on my screen)
    Sometimes when I break apart and combine it works fine. Other times, when viewed in enhanced version, the object is solid. But in the wireframe it's combined and all the pieces are there.
    I'm thinking maybe it was something which had a copy on top in another layer but that's not the case.
    Any ideas as to where I'm screwing up?
    :thankyou:
    (sorry if this is vague)
    Love....Jill

    Tags:
  2. SignManiac

    SignManiac Major Contributor

    8,494
    37
    48
    Mar 25, 2006
    Mars Florida
    Jill send me your file and I'll have a look at it and see if I can find the problem.

  3. signage

    signage Major Contributor

    9,517
    75
    48
    Oct 5, 2005
    Penn
    I spoke with Jill and got it straightened out. For some reason sometimes when combining shapes you need to reverse the direction of the nodes and it will then work. So I told her what to do and she got it to work.

    Last edited: Aug 12, 2011
  4. ucmj22

    ucmj22 Very Active Member

    1,509
    1
    0
    Dec 10, 2009
    This happens sometimes in Illustrator for me. If I am trying to cut a top shape out of multiple bottom shapes the bottom shapes must be combined in to a compound shape first. some times with provided files, I just take the direct selection tool, and delete the extra shapes and below them is usually the open space.

  5. Bigdawg

    Bigdawg Just Me

    7,459
    133
    63
    Jun 8, 2005
    Sunny Florida
    would you care to share that fix with the rest of the class :smile:

  6. signage

    signage Major Contributor

    9,517
    75
    48
    Oct 5, 2005
    Penn
    Stacy I did it was to reverse direction of the nodes!


    I even went back and made it bold and red!

  7. Jillbeans

    Jillbeans Major Contributor

    14,457
    18
    38
    Dec 24, 2003
    Butler, PA
    It's still being a little b!tch. The switching nodes things works in some cases but not all.
    This is a drawing I drew and scanned into my computer, not shapes or a font.
    But Brian's advice helps.
    :)

  8. TyrantDesigner

    TyrantDesigner Art! Hot and fresh.

    1,667
    0
    36
    Mar 9, 2011
    Amarillo, TX
    just as signage said, reversing the nodes helps. I've had that problem since corel 8. Especially when I am doing outlined objects (mainly illustrations) Sometimes if it still doesn't get fixed ... make a hairline outline of the object, break apart the outline then zoom all the way in to delete the outside line keeping the inside then combine the new line with the shape you want it cut out of ... lot of steps ... but it is an extra 4 or 5 seconds.

  9. Jillbeans

    Jillbeans Major Contributor

    14,457
    18
    38
    Dec 24, 2003
    Butler, PA

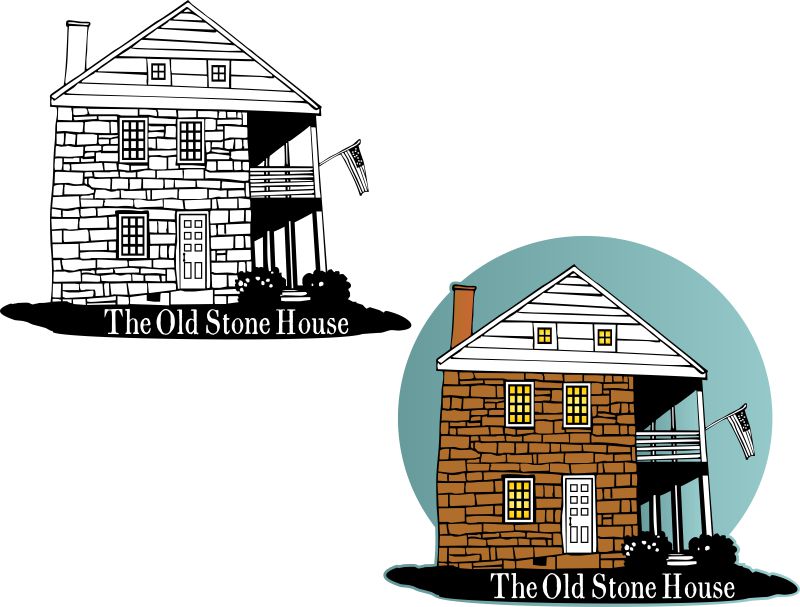

    This is the file I'm working on.
    If I break it all apart and combine it you'd think I'd get a plain black and white version (top one) but nooo.
    I have to group and bring to front even to make the stuff show up.
    (bottom one)
    I'll try the latest tip, sounds do-able even for me.
    :wink:


    Attached Files:

  10. GAC05

    GAC05 Major Contributor

    5,931
    790
    113
    Dec 27, 2005
    Guam USA
    Care to post the file (or a part of it) that is giving you trouble?
    I assume you used autotrace on your scan.
    It seems like you have stacked shapes that are messing up the combine.
    I don't use autotrace much at all, but it can do odd things when it stacks up the vectors against a white background.
    Often on something like this it might be quicker to add a new empty layer and use the smart fill tool to get just the shapes you need and delete all the duplicate stacked paths on the original layer.

    wayne k
    guam usa

  11. Jillbeans

    Jillbeans Major Contributor

    14,457
    18
    38
    Dec 24, 2003
    Butler, PA
    Brain called me again yesterday and now it acted "right".
    This was a scan to vector which I saved as an .ai and imported into Corel.

  12. Roto

    Roto Member

    211
