Head adjustment on a Mutoh

Discussion in 'Mutoh' started by oozawekwun, Apr 15, 2010.

  1. oozawekwun

    oozawekwun New Member

    13
    0
    0
    Oct 31, 2008
    Rockhopper II 64", latest firmware.

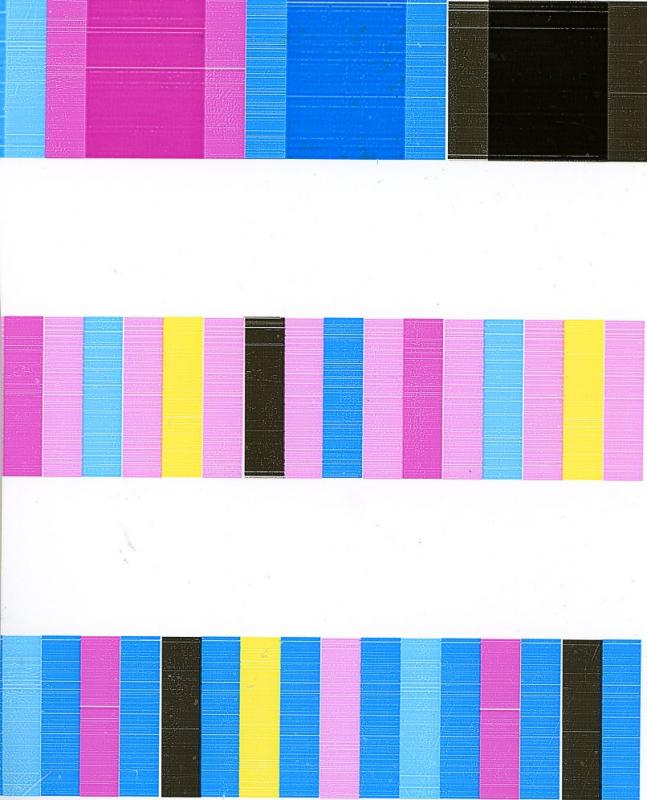

    I'm trying to tune my Mutoh printer to solve a banding issue. The banding is happening where black or a portion of black is in the image. In maintenance mode I ran the front and back and head slant patterns. Sure enough the black head was out of alignment. I was able to adjust the black head so the head aligns up using the back and front adjustment screw and the slant screw. There is still an alignment issue and this is shown on my image. The black head is shifted over to the right. There doesn't seem to be a mechanical adjustment for this. Can anyone offer me a suggestion as to how to correct this alignment problem?


    Attached Files:

    Tags:
  2. Stealth Ryder

    Stealth Ryder Very Active Member

    1,722
    0
    36
    Jul 16, 2009
    Texas
    Take a look in the Service Manual, it explains how to resolve this...

    Last edited: Apr 15, 2010
  3. oozawekwun

    oozawekwun New Member

    13
    0
    0
    Oct 31, 2008
    Thanks Stealth. I'm looking at a Rockhopper II manual Rev ;1,1, 08/03/2004. The only adjustment that I can see that would fix this is the Repeatability Adjustment (Bi-Directional/Uni-Directional. When I run these tests the lines look very close. Is this the test you were referring to or am I missing something?

    Thanks again Stealth.

  4. juststrummin

    juststrummin Member

    26
    1
    3
    Dec 28, 2008
    Plainfield, IL
    Unfortunately, the manual doesn't tell you how to fix this issue. But there is a fix. You probably won't like it though.

    I have had this happen a couple of times and it only happened when I purchased heads that did not come with their metal bracket attached.

    The only way to bring the head closer to the adjoining head is to loosen the head from it's bracket and physically move it either left or right. It doesn't take much, about 1/32" is all. You will have to remove the head from the carriage which means you will have to recalibrate when you place it back in. The good news is you don't have to recalibrate to see the adjustment you made, only after the gap has been closed.

    One last thing. Make sure you are moving the correct head. Sometimes what looks like the color that is off, is actually the head next to it.

  5. oozawekwun

    oozawekwun New Member

    13
    0
    0
    Oct 31, 2008
    Thanks for the replies. I was able to move the print head a little by removing it and am now calibrating it.

    Tom

  6. Compilla

    Compilla Active Member

    733
    0
    0
    Jul 21, 2005
    Great Tip Mr. juststrummin !
