Helmet Wrap!

Discussion in 'Vehicle Wraps' started by SOA, Nov 6, 2010.

  1. SOA

    SOA Member

    209
    0
    0
    Oct 9, 2008

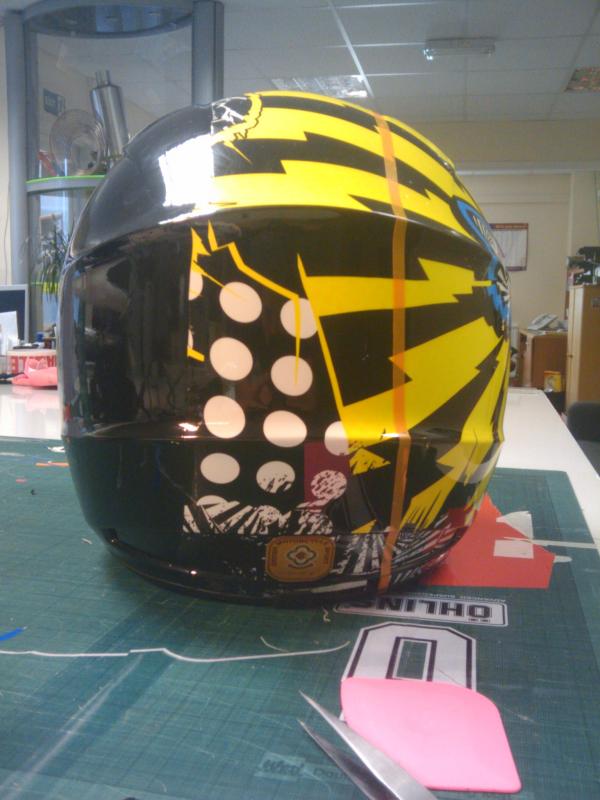

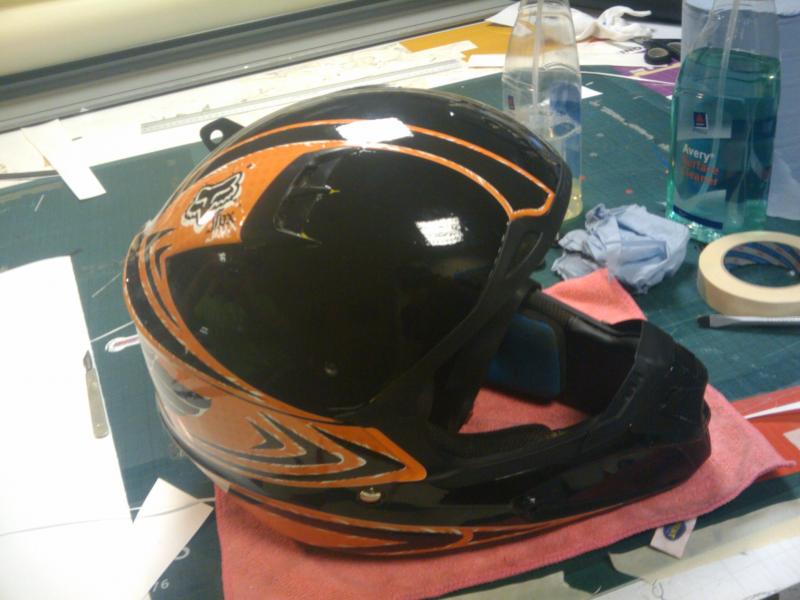

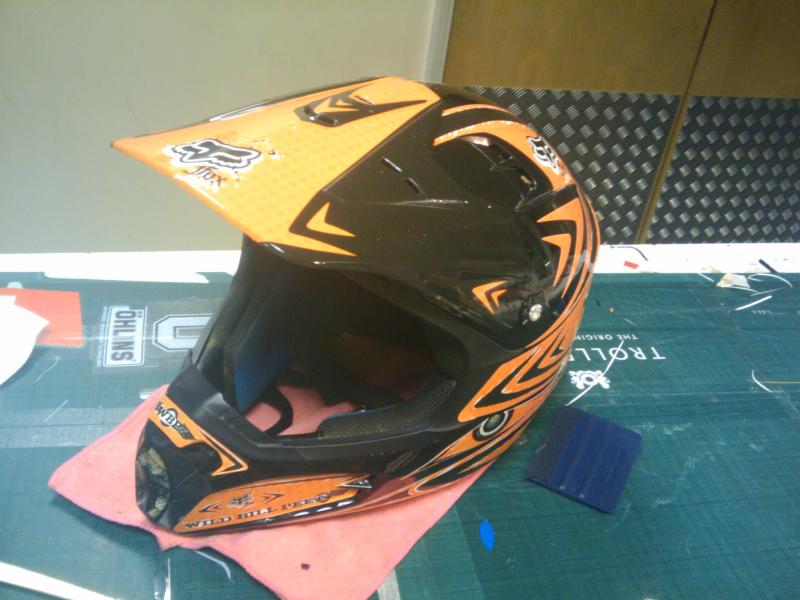

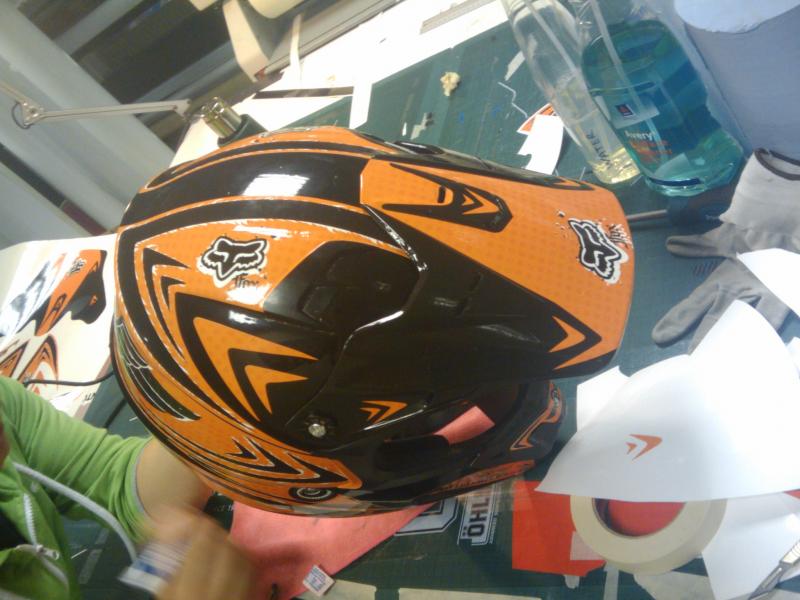

    Hi, We did this last week, wrapped it all over in black them added the printed design over the top ( we made templates so it fitted nicely)

    did the main wrap in 3 pieces, left,middle & right.It took about 2 hrs to wrap them 1 to put the prints on.

    turned out to be good fun!

    Steve


    Attached Files:

    Tags:
  2. JR's

    JR's Very Active Member

    2,909
    108
    63
    Sep 6, 2007
    swansea Ma 02777
    thanks for sharing.

  3. parkedcar

    parkedcar Member

    403
    0
    16
    Dec 11, 2007
    NJ
    Looks great!

  4. surf city

    surf city Active Member

    578
    0
    16
    Jun 25, 2009
    Toms River, NJ
    Nice Job

  5. B-RAD Graphics

    B-RAD Graphics Member

    243
    0
    0
    Nov 16, 2009
    :thumb:

  6. Seven Sin Design

    Seven Sin Design Member

    45
    0
    0
    Oct 25, 2010
    Very well done!!!:clapping:

  7. SOA

    SOA Member

    209
    0
    0
    Oct 9, 2008
    Thanks for the nice comments!

  8. GypsyGraphics

    GypsyGraphics Major Contributor

    4,276
    4
    36
    Mar 19, 2009
    that looks great!!! how long did it take?

  9. SOA

    SOA Member

    209
    0
    0
    Oct 9, 2008
    It was about 2hrs to wrap it black,used a touch of primer here & there. The templating. & design was about 6-8hrs and the application of the prints was about an hour,a days work really. We made the printed bits overlay the two joins to hide them & to stop them peeling back!

  10. phototec

    phototec Very Active Member

    3,199
    22
    38
    May 23, 2008
    Belton
    S w e e t, n i c e w o r k !

    S W E E T, _ N I C E _ W O R K !

    What material?

    What Laminate?

    And any other tips will be appreciated.

    After you post more HOW TO information, I use the print function to make a PDF file, then put the file in a folder I'm building. I have a nice collection of HOW TO's, I can reefer back to in the future.

    Thanks again for sharing and any info that will help others on this site!

    :thankyou:

  11. AUTO-FX

    AUTO-FX Very Active Member

    2,185
    0
    0
    Feb 14, 2010
    Looks real nice !
    Can you get enough $ for it to make you want to do more of them?

  12. SOA

    SOA Member

    209
    0
    0
    Oct 9, 2008
    The black vinyl was Hexis HX20890 Hexpress, the printed parts were on 3MIJ380 & laminate.

    I used the 3M primer in the harsh recess areas and the joints down the middle to stop the vinyl from lifting. i Have done one with the same materials but without primer & it came out fine, i just wanted to try it this time.

    dose anyone here wrap helmets with prints? i cant imagine it can be done??

  13. Craig Sjoquist

    Craig Sjoquist Major Contributor

    6,746
    4
    38
    Jun 18, 2004
    Orlando
    Interest design and likes great job ... but a full day wow

  14. SOA

    SOA Member

    209
    0
    0
    Oct 9, 2008
    As for the $$$ its ok, but only ok. i didn't lose any money but didn't make any real profit!
    i could easily do two in a day if they were of the same design & that would make it a great job! I'd only turn down doing them when we are real busy!

    Steve

  15. SOA

    SOA Member

    209
    0
    0
    Oct 9, 2008
    oh the peak was a print & wrapped in one piece!

  16. AUTO-FX

    AUTO-FX Very Active Member

    2,185
    0
    0
    Feb 14, 2010
    A friend of mine messaged me the other day with a picture of a helmet he just finished. One piece print. I asked him if he was going to make any $ on it and he didnt know. I think he did it more to see if he could do it. I'm sure it took way too much time for what it's really worth!

  17. Vital Designs

    Vital Designs Vital Designs

    406
    1
    18
    May 29, 2005
    Dalls, Texas
    Looks good, great job!

    The little wraps I find are not profitable from a time standpoint. I have wrapped numerous gun stocks and after each one I swear I would never do another.

    The problem is that word spreads that you do them.

  18. Garbus

    Garbus Member

    68
    0
    0
    Feb 25, 2008

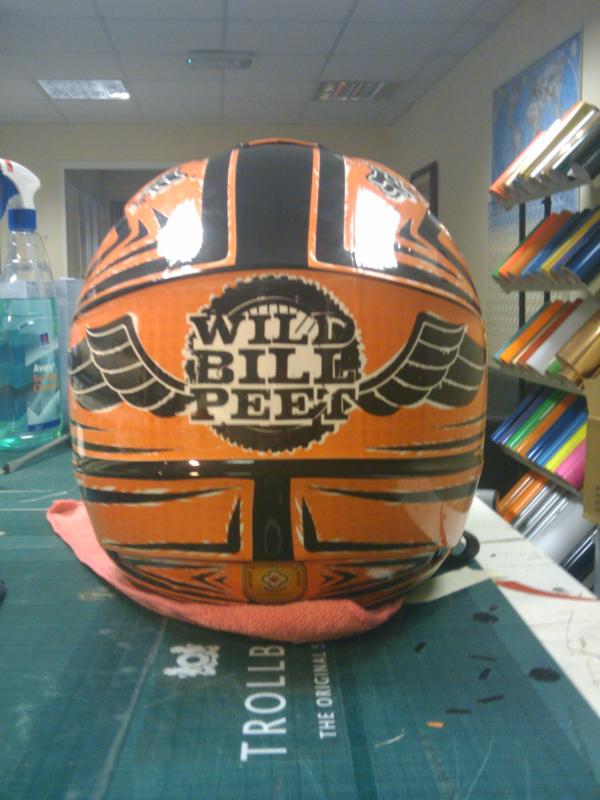

    looks great... except for the name on the back side... WHat happened there?

  19. Kentucky Wraps

    Kentucky Wraps Kentucky Wraps

    1,176
    58
    48
    Mar 6, 2009
    Bluegrass
    So an 8 hr day X hourly shop rate = about $500 give or take for that job?

  20. SOA

    SOA Member

    209
    0
    0
    Oct 9, 2008
    my Friend did the bulk of the design, he had final say on it, i know the back is a little difficult to read!!

    As for the $500.. your not far off!!
