Need Help Help fixing Mutoh VJ628

[tamif]

I had to replace the media fixing knob on my Mutoh 628, but I am still having problems with it not working right. When I turn the knob you can see the silver rod in the back moving back and forth loosely. It is not wanting to move the pinch rollers up in order to remove media. I don't know if I need to do something with the silver rod or if it is something else.



[henryp]

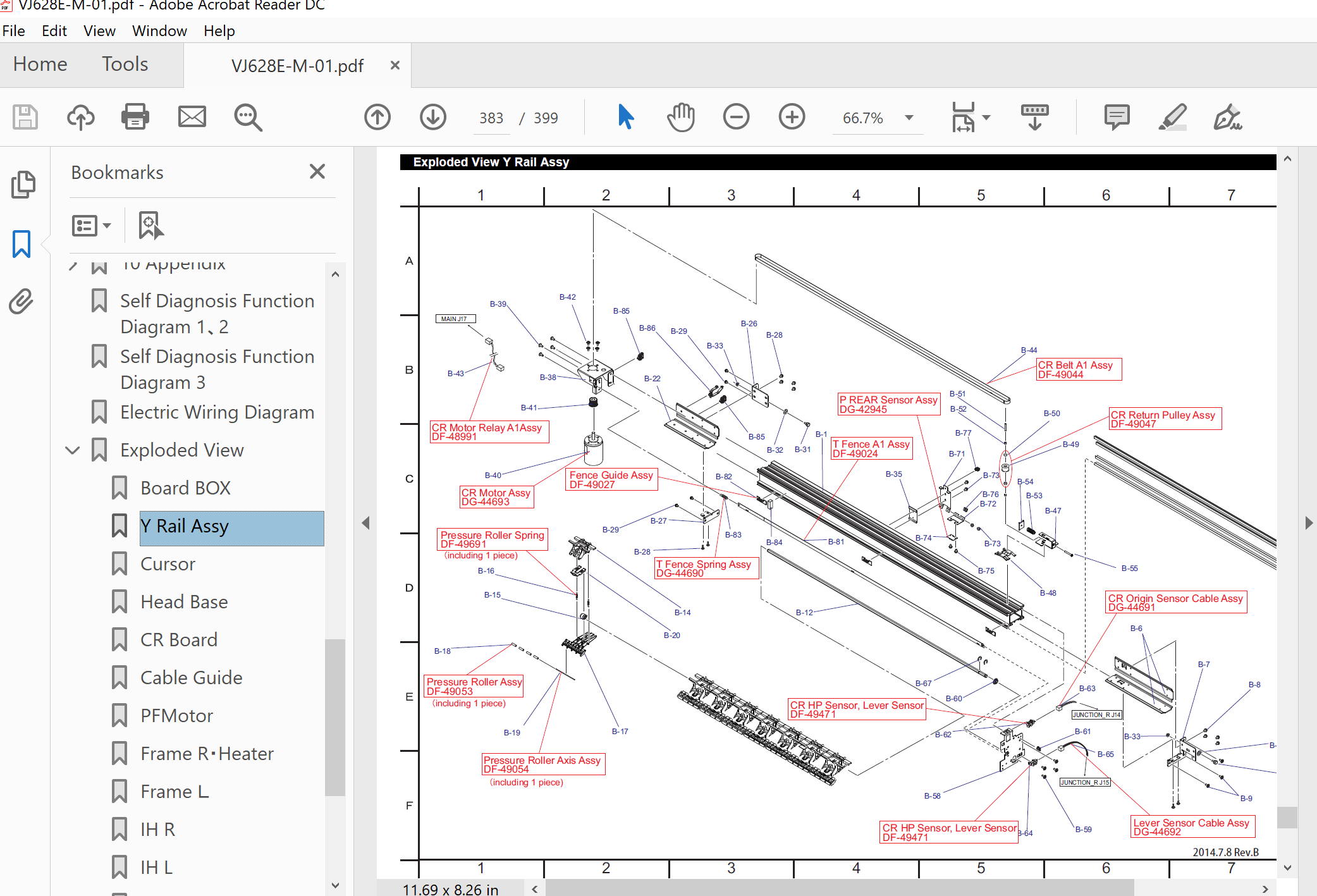

Chances are the knob had been inserted while the pressure roller release bar (B-12 on attached screenshot) is in the wrong position.



[Chris808]

Chances are the knob had been inserted while the pressure roller release bar (B-12 on attached screenshot) is in the wrong position.

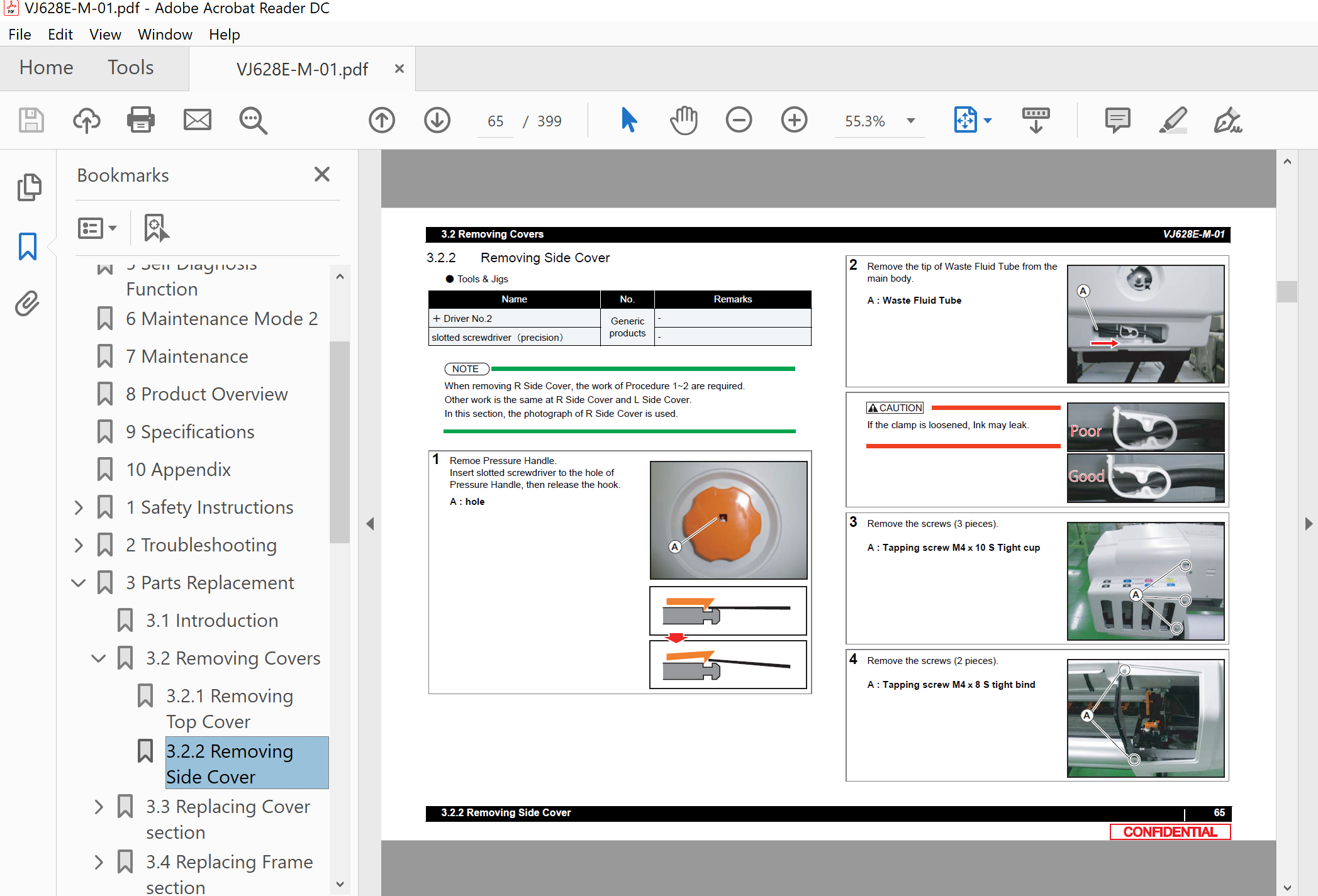

View attachment 141514 View attachment 141515

Oh Wooow, Im looking to replace the dampers on my 628, but not sure how to remove the head height cross bar. do you have the detailed instructions how to do this procedure? From where did you get this screenshots?
thank you!



[henryp]

Oh Wooow, Im looking to replace the dampers on my 628, but not sure how to remove the head height cross bar. do you have the detailed instructions how to do this procedure? From where did you get this screenshots?
thank you!

You will need to remove the printhead to replace the dampers on the VJ-628 because of very short ink lines.
