Discussion in 'Roland' started by Colin, Jun 15, 2012.

  1. Colin

    Colin Major Contributor

    4,497
    14
    38
    Sep 16, 2004
    Earth
    I'm attempting to print a PDF file which came from a high-end design firm. It is sized at half the actual size, so I'm simply setting the size at 200% in VersaWorks. Print size is 46" x 240".

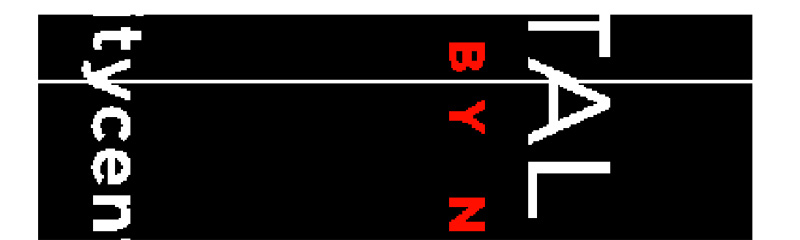

    The problem is, the file shows some weird 3/16" spaces separating the image about 3 times (as shown). These do not appear in Adobe Acrobat or Reader, nor in Illustrator when I open the PDF there. I did a test print and the spaces print out.

    Why is this happening? Is there some sort of page size thing going on?


    Attached Files:

    Tags:
  2. Colin

    Colin Major Contributor

    4,497
    14
    38
    Sep 16, 2004
    Earth
    I've just now saved the PDF file from Illy as an EPS and it seems to look ok in VW, but I'd sure like to know why those spaces appeared.

  3. boxerbay

    boxerbay Active Member

    921
    67
    28
    Nov 25, 2010
    Darkside of the Moon
    google pdf stitching.

  4. Colin

    Colin Major Contributor

    4,497
    14
    38
    Sep 16, 2004
    Earth
    Can't right now - babysitting giant print.

  5. GAC05

    GAC05 Major Contributor

    5,031
    345
    83
    Dec 27, 2005
    Guam USA
    Looks like it is a raster file that has been broken down into blocks when exported and the borders between the blocks are showing up at the larger size.


    wayne k
    guam usa

  6. Colin

    Colin Major Contributor

    4,497
    14
    38
    Sep 16, 2004
    Earth
    No, it's vector.... thanks

  7. GAC05

    GAC05 Major Contributor

    5,031
    345
    83
    Dec 27, 2005
    Guam USA
    What you posted does not look vector.
    It may be vector in the native file but export or Vworks import is turning it into a low rez bitmap by the looks of the stair stepping on the text.
    (edit)
    Unless you are posting the lowrez preview header image.

    wayne k
    guam usa

  8. Colin

    Colin Major Contributor

    4,497
    14
    38
    Sep 16, 2004
    Earth
    Yes, that's a screen-shot of VW.

  9. GAC05

    GAC05 Major Contributor

    5,031
    345
    83
    Dec 27, 2005
    Guam USA
    So do the lines show in the print or just the preview?
    AI files on export will rasterize and break into blocks elements that are vector or even large bitmaps. They show up in corel or flexi lined up with no gap but I have run into some that display a one or 2 pixel gap. With rounding errors on resize that gap can end up in the print.
    If it is just in the preview I'd run a cropped test and go from there.

    wayne k
    guam usa

    Last edited: Jun 15, 2012
  10. Colin

    Colin Major Contributor

    4,497
    14
    38
    Sep 16, 2004
    Earth
    From the O/P:

    "I did a test print and the spaces print out."

  11. GAC05

    GAC05 Major Contributor

    5,031
    345
    83
    Dec 27, 2005
    Guam USA
    My bad - must wake up and read whole post - Saturday morning here...

    wayne k
    guam usa

  12. Colin

    Colin Major Contributor

    4,497
    14
    38
    Sep 16, 2004
    Earth
    Update:

    I just had this occur again with a PDF file which was larger than the media width. When rotated within VW, the clipping remained. Steve from Roland just solved the problem for me; if you simply click on: Job Settings > Clip and Tile > click "Number of Tiles" on. This solves the problem.

    The issue is that VW maintains the "page size" of a PDF, and maintains the "file size" with an EPS, which is why this doesn't occur when rotating an EPS within VW.

    Hope this helps anybody else.....
