Here's how I spent my weekend... building vinyl racks.

Discussion in 'General Chit-Chat' started by GypsyGraphics, Jul 5, 2010.

  1. GypsyGraphics

    GypsyGraphics Major Contributor

    4,276
    4
    36
    Mar 19, 2009
    I've been wanting to build these racks since I saw Jiarby's a few months back. Finally, with the holiday weekend, I had enough free time to knock these out.

    Didn't have the luxury of a CNC router, but I think they turned out pretty nice.

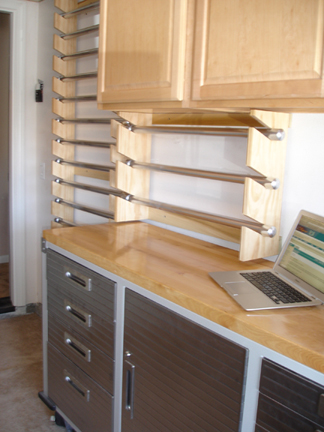

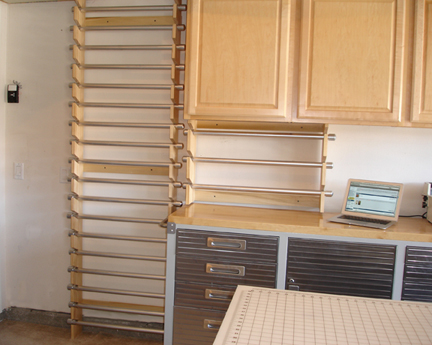

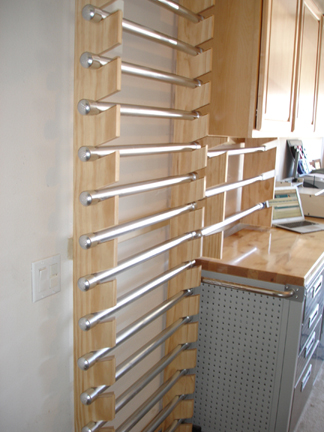

    VinylRacks-1sml.jpg VinylRacks-2sml.jpg VinylRacks-3sml.jpg

    Tags:
  2. signgal

    signgal Very Active Member

    1,364
    0
    36
    Dec 29, 2009
    you rawk, little lady! I gotta hunt down Jarby's instructions... that's way better than the vinyl stickin out all over the place! Good for you, GG!

  3. Drip Dry

    Drip Dry Very Active Member

    1,122
    1
    38
    Aug 11, 2004
    Long island NY
    Looks clean and easy

    What are the rods ?

  4. Boomer

    Boomer Member

    198
    0
    16
    Jul 20, 2007
    Delaware
    Nice job...and Signs 101 on the laptop!

  5. GypsyGraphics

    GypsyGraphics Major Contributor

    4,276
    4
    36
    Mar 19, 2009
    Well, i didn't get a response to the pm i sent him, but there was enough info in his post to get me started.

    I can give you more details if you want, i even took photos of the jigs i made to get uniform cuts.

    the rods are just 1" sch 40 pvc, with end caps. but i wanted them to match my natural wood and stainless steel cabinets so i spray painted the pvc rods silver/chrome

  6. Sign_Boy

    Sign_Boy Major Contributor

    6,429
    8
    38
    May 18, 2007
    USA
    Looks good now come make me one :clapping:

  7. Craig Sjoquist

    Craig Sjoquist Major Contributor

    6,746
    4
    38
    Jun 18, 2004
    Orlando
    great job .. and bunch of other great job words

  8. signage

    signage Major Contributor

    9,541
    82
    48
    Oct 5, 2005
    Penn
    :thumb::thumb: Now on your way to build signboy his you can stop and make me some also! That way you will have more practice when you make his:Big Laugh

  9. iSign

    iSign Major Contributor

    13,027
    31
    48
    Nov 29, 2003
    Kahului, Maui
    nice rack :wink:

  10. Mike Paul

    Mike Paul Major Contributor

    5,438
    8
    38
    Dec 30, 2003
    NJ
    Nice job! :thumb:

  11. reximages

    reximages New Member

    20
    0
    0
    Mar 27, 2010
    You get an "A" on the racks. Thank you for posting that with those pictures!

  12. tomence

    tomence Very Active Member

    1,647
    25
    48
    Feb 10, 2009
    IL
    Looking good, nice work.

  13. JR's

    JR's Very Active Member

    2,905
    106
    63
    Sep 6, 2007
    swansea Ma 02777
    post picks of the jig you made, please. it looks clean and professional.

    JR

  14. wes70

    wes70 Very Active Member

    1,661
    8
    38
    Oct 31, 2005
    Canada
    Very nice job!

  15. signD

    signD Member

    29
    0
    1
    Oct 31, 2006
    Nebraska
    Wow!

    Would love to see more pics of your sign shop!

  16. jiarby

    jiarby Major Contributor

    4,513
    0
    0
    Feb 11, 2007
    sry about that, had family in town, racks look good!

  17. Replicator

    Replicator Major Contributor

    10,230
    9
    38
    Nov 19, 2006
    Sun City, AZ
    That's one sweet rack you got there GypsyGraphics . . . !

  18. GypsyGraphics

    GypsyGraphics Major Contributor

    4,276
    4
    36
    Mar 19, 2009
    No problem jiarby, i so appreciate your posting and photos that gave me the info i needed to make mine! love the idea from the minute i saw it.

  19. GypsyGraphics

    GypsyGraphics Major Contributor

    4,276
    4
    36
    Mar 19, 2009
    Thanks guys and gals for the :thumb:

    Here are the details if you're interested. I'll add shop pics tomorrow.

    While I have 10’ ceilings, the only available wall space for the tall rack was an area that had drop shelving from the ceiling, leaving just 88” to work with. So the tall rack for 24” rolls is 88” high by 6” deep, with slots for 18 rolls. I found if I went with consistent 4.75” spacing, that I could fit 50 yrd rolls just fine as long as I only had a 10 yrd roll above and below.

    The under-cabinet rack is for 30” rolls, is 20” high and 8” deep. I have plenty of space if I decide to build a second under-cabinet rack, but I don’t buy a lot of 30” rolls (other than lams) since my Graphtech is 24”.

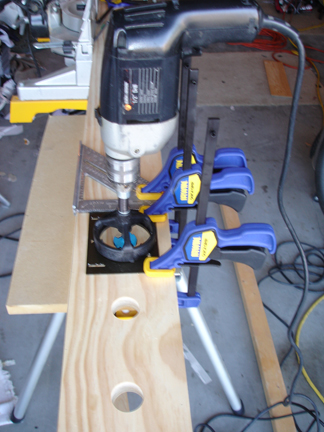

    First photo: shows the holes I cut for the slot ends. I used a 1.25” bit, I actual used a jig for creating cabinet hinge pocket (from Rockler), every 4.75” on center.

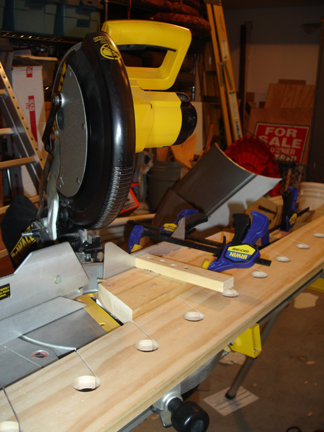

    Second photo: is of the miter saw set to cut at 22.5 degrees. The jig for that was just two 1x3’s screwed together to let me bring the saw down all the way and not cut beyond the hole.

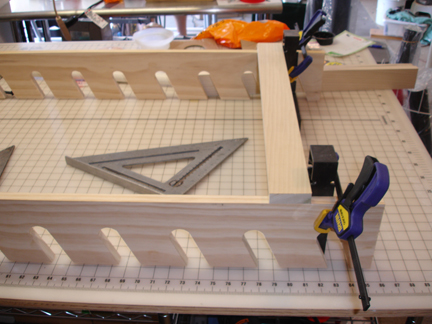

    Third photo: just shows the cross members. Initially I planned to have them inset like Jiarby's (for a cleaner looking) but putting them on the outside meant I didn’t have to contour it to the wall and around the concrete footing.
    1.25_drill_bit.jpg PowerMiter_jig.jpg CrossMember.jpg
