How to add cut line & bleed to existing design

Discussion in 'Designs & Layouts' started by SignMeUpGraphics, Aug 5, 2020.

  1. SignMeUpGraphics

    SignMeUpGraphics Moderator

    1,331
    275
    83
    Apr 11, 2012
    Australia
    Hi all,

    Drawing a bit of a blank here as it's not something we do regularly, but we need to add some bleed and contour cut line to a small design we've been provided by a client. Since there is a drop shadow, adding a couple of mm of bleed and adding a cut line isn't as easy as first thought. Any ideas on how to do this and achieve a somewhat accurate representation of the original artwork? I have a preference for 2mm bleed to allow for variances between print and cut, but the shadows and corners make it more difficult than normal. I hope I'm just tired and missing something simple. We use Illustrator have have vector/PDF artwork.


    Tags:
  2. GAC05

    GAC05 Major Contributor

    5,935
    791
    113
    Dec 27, 2005
    Guam USA
    I think Flexi's color trapping option could work but in Illustrator I'm not sure how to go about it in a quick smart fashion.
    Using brute force for a dirty solution I copied the layer 4 times worked on them one at a time.
    1.Combined the original shadow and letters to make the cut line - in cyan hide that layer.
    2. Use the path offset on the shadow and then cut the inner edge back with gold letters - hide those.
    3. Use the path offset on the gold and then cut them back using the drop shadow.
    4. Unhide all the layers and reordered them until it looked like what I wanted.
    If the cut goes off too far the color will be there but the joints between the shadow and letters will be off.
    Not sure you can do much about that because it will depend on how the cut shifts out of place.
    Could make some test print/cuts on cheap material then use the shape builder to massage the problem corners into the shape you need.

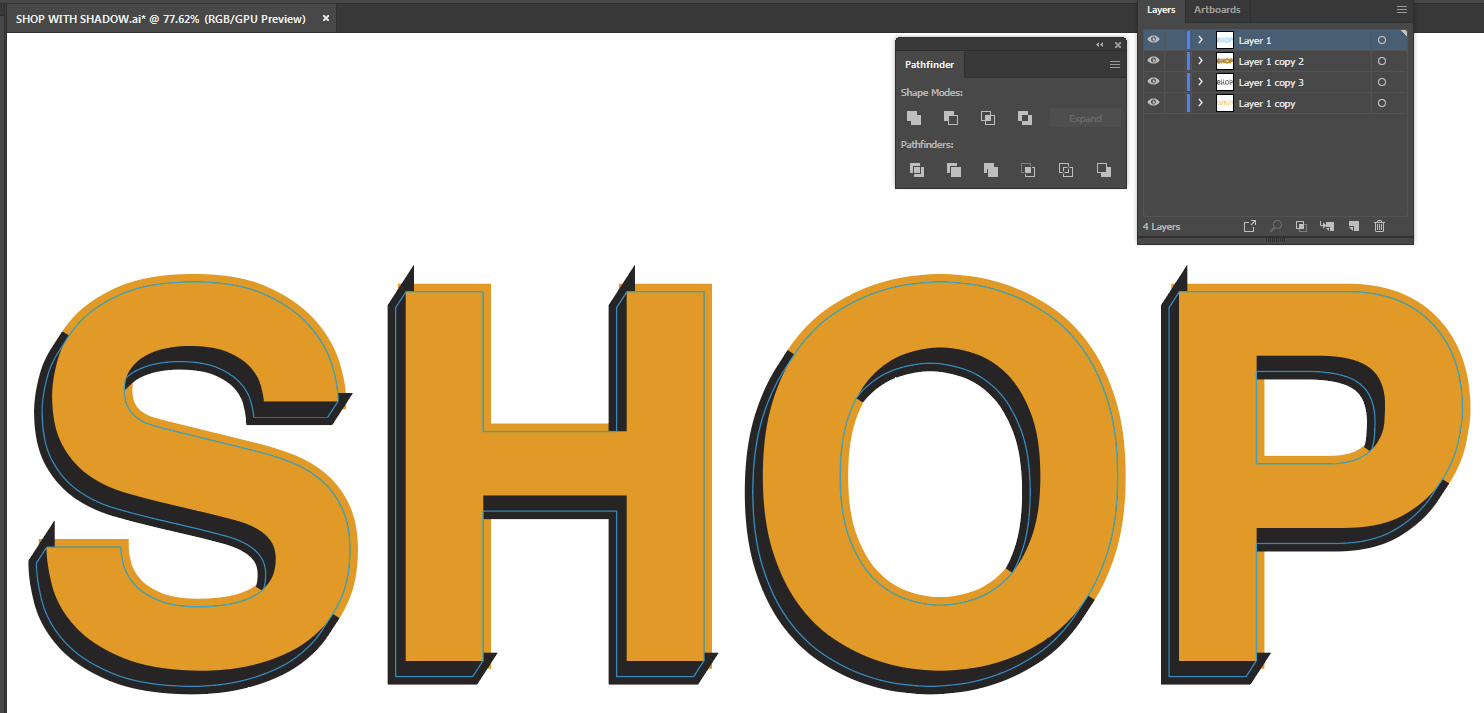

    bleed cut.jpg .

    Last edited: Aug 5, 2020
    • Like Like x 3
  3. ewded

    ewded Member

    484
    87
    28
    Aug 28, 2017
    UK
    Just add a -1mm offset path as a cutline, nobody will notice an 1mm difference on the final print and it should be enough for an accurate cut

    • Like Like x 1
  4. Bubba06

    Bubba06 Just Somebody

    425
    123
    43
    Feb 13, 2005
    Manning SC
    Not Sure about AI but here's how i would do it in Flexi


    • Like Like x 1
  5. SignMeUpGraphics

    SignMeUpGraphics Moderator

    1,331
    275
    83
    Apr 11, 2012
    Australia
    Thanks for the replies and effort so far. The video was far more than I expected.
    Shame we don't use Flexi, as it looks to be a notch above Illustrator in this instance.

    I think we'll have to resign to ewded's suggestion on this one. Just found out that the install is going to be nearly 8 feet about ground level, and lettering only 8" high, so any small discrepancies should be virtually invisible at that distance.

    Once again, I appreciate the suggestions and hope they can assist others in the future.

    • Like Like x 1
  6. Johnny Best

    Johnny Best Very Active Member

    3,431
    1,921
    113
    Dec 9, 2015
    buffalo ny
    Illustrator: outline fonts, copy, pathfinder, unite, Object, path, offset path. Put in your 2mm offset path and take your offset path and line up using align tool to your copied text of the gold with drop shadow.

    • Like Like x 2
