Identify Installation Hardware

Discussion in 'General Signmaking Topics' started by LoGl, Mar 15, 2013.

  1. LoGl

    LoGl Member

    75
    0
    0
    Aug 7, 2008
    Hey all,

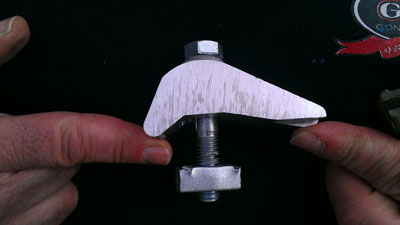

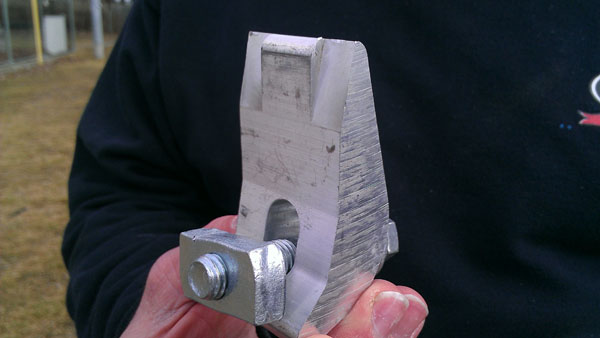

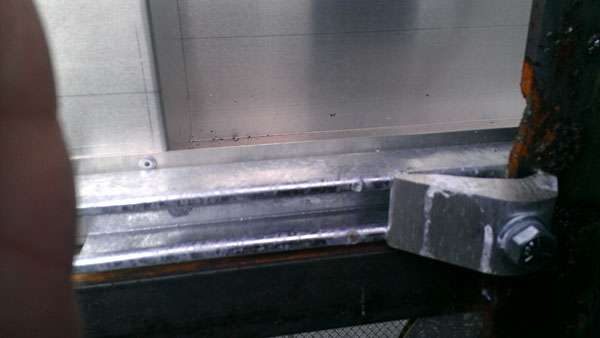

    I am looking for a particular piece of hardware and am just not sure if these were custom made. I can get them made...but was hoping not to have to reinvent the wheel. As you can see in my photos, the track/ channel that was used, I'm told is Unistrut. After searching through images and Unitstrut website...I'm not finding the clamp that was used. I have more images of the clamp, but I think you get the basic idea here. It inserts into the track, slide up and grasps on to an I-beam (one on either side of beam). Works like a charm.

    Anyone have and idea where I might find these?

    Thanks much....Lori


    Attached Files:

    Tags:
  2. James Burke

    James Burke Being a grandpa is more fun than working

    3,439
    465
    83
    Jan 2, 2010
    Mitten State
    It appears to be a machined extrusion...meaning that it's most likely a stock item somewhere.

    Had it been totally machined from billet stock, then it would have been a custom.


    JB

  3. Typestries

    Typestries Very Active Member

    1,581
    4
    38
    Jan 8, 2007
    NJ | VT
    Check your local electrical supply house......or mcmaster carr.

    Google image "beam clamp strut" there are a bunch of varieties

  4. Moze

    Moze Precision Sign Services

    2,033
    156
    63
    Feb 27, 2012
    Dallas, TX
    Pretty sure it's a rocker from an LS1.:Big Laugh

    JK...

    There are lots of I beam clamps from the various maunufactures...maybe replace that with one that's easier to find...?

  5. MikePro

    MikePro Major Contributor

    5,003
    245
    63
    Feb 3, 2010
    Racine, WI
    does the "replacement" need to be so beefy?
    depending on what you're mounting, it doesn't look anything different than what you can get out of a toggle-bolt/beam-clamp.

  6. CP Signs

    CP Signs Member

    365
    0
    16
    Sep 15, 2012
    Stittsville
    Don't know about the LS1 but my LS6 could probably use a few of those. Hahahahah

  7. Dzrt1st

    Dzrt1st Member

    204
    0
    16
    Jan 22, 2008
  8. LoGl

    LoGl Member

    75
    0
    0
    Aug 7, 2008
    Thank you all who have helped me out here. I will continue searching through the different sources you have identified. At the end of the day do the clamps need to be precisely these type...no. But I am adding to a sign post that has existing signs on it and if I can easily find the same type...it just made sense. If not...I will find a way to make installation work. These clamps worked easily and perfectly so hoping to find and use them. If I do find...i will post my source.

    It never ceases to amaze me how helpful fellow sing folks are. I thank you whole heartedly.
    Lori

  9. LoGl

    LoGl Member

    75
    0
    0
    Aug 7, 2008


    Here you go....yes...could be that I am supposed to be working on an engine...lol


    But seriously....a couple of you made great suggestions...in the end, I think McMaster Carr is what I will go with....similar use product, not the beefiest clamp, but the weight load is fine to use something smaller.

    have a great day all...


    Attached Files:
