inductors?

Discussion in 'Roland' started by anozira02, Nov 20, 2012.

  1. anozira02

    anozira02 Member

    443
    1
    18
    Mar 23, 2009
    Prescott, arizona
    I need a cpl. of inductors for my Roland Cj-500 main board,, I have not idea where to buy them or even what to look for since there are not much markings on it,, other then 181 on top and 125°c mark on the side. One located on L1 the other on L2 board markings. Enclosed is a picture of it.. if someone familiar with this item, please message me...

  2. genericname

    genericname Active Member

    928
    0
    16
    Feb 27, 2009
    Canada
    No photo included. Care to try again? I love these problems.

  3. anozira02

    anozira02 Member

    443
    1
    18
    Mar 23, 2009
    Prescott, arizona

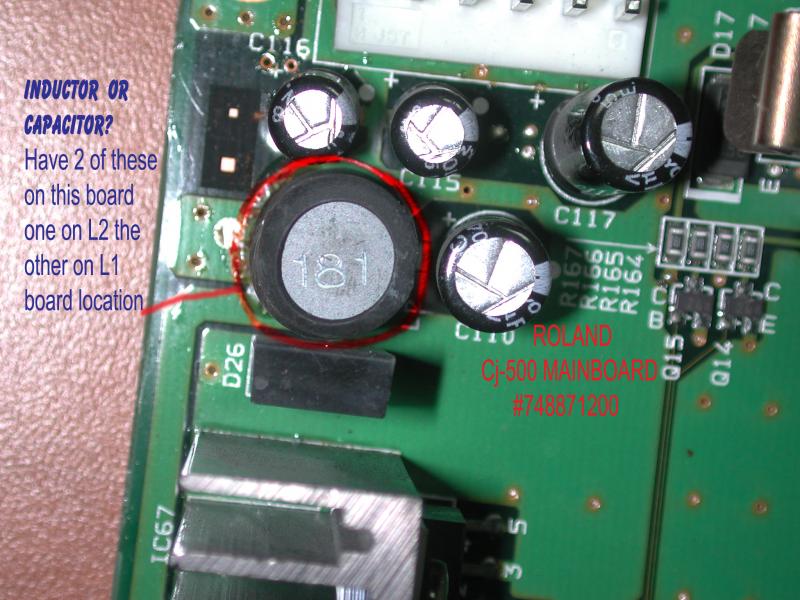

    [​IMG]

    here is the photo showing it on the main board it has 181 on top of the item
    in question..


    Attached Files:

  4. Rafael_Tech

    Rafael_Tech New Member

    9
    0
    0
    Aug 3, 2012
    "L" always refers to an inductor in circuit schematics and boards. I found this part# CL02BE181 in the service manual. Hope it helps.

  5. genericname

    genericname Active Member

    928
    0
    16
    Feb 27, 2009
    Canada
    Nice find!

    If that doesn't work, you could always de-solder it and bring it in to an electronic component shop. If they can't identify it by sight, they should be able to measure the inductance for you, then fix you up with a matching product.

    Rafael's right though; with the "L" designation, it's definitely an inductor.

  6. genericname

    genericname Active Member

    928
    0
    16
    Feb 27, 2009
    Canada
    Actually, one more bit of information. The 181 stamped on the top should be the μH (micro Henris) rating. 181 would signify that this inductor operates at 180μH. Couple that with the fact that it's rated for 125°C, and that it looks like a fixed, shielded inductor, any guy at a components counter should be able to help you.

  7. anozira02

    anozira02 Member

    443
    1
    18
    Mar 23, 2009
    Prescott, arizona
    Thank guys,, great information for someone like me with little understanding about electrical circuit components, I should be able to find this product since now I know what it is and what to look for online. Just one more thing,, should I look for specific voltage as well?

  8. genericname

    genericname Active Member

    928
    0
    16
    Feb 27, 2009
    Canada
    Sorry, no clue on that one. I've little understanding myself; just a quick learner.
