Is Cut Server stupid or am I?

Discussion in 'Tips & Tricks' started by Awesome Graphics, Apr 18, 2020.

  1. Awesome Graphics

    Awesome Graphics Member

    118
    10
    18
    Sep 26, 2019
    Vermont

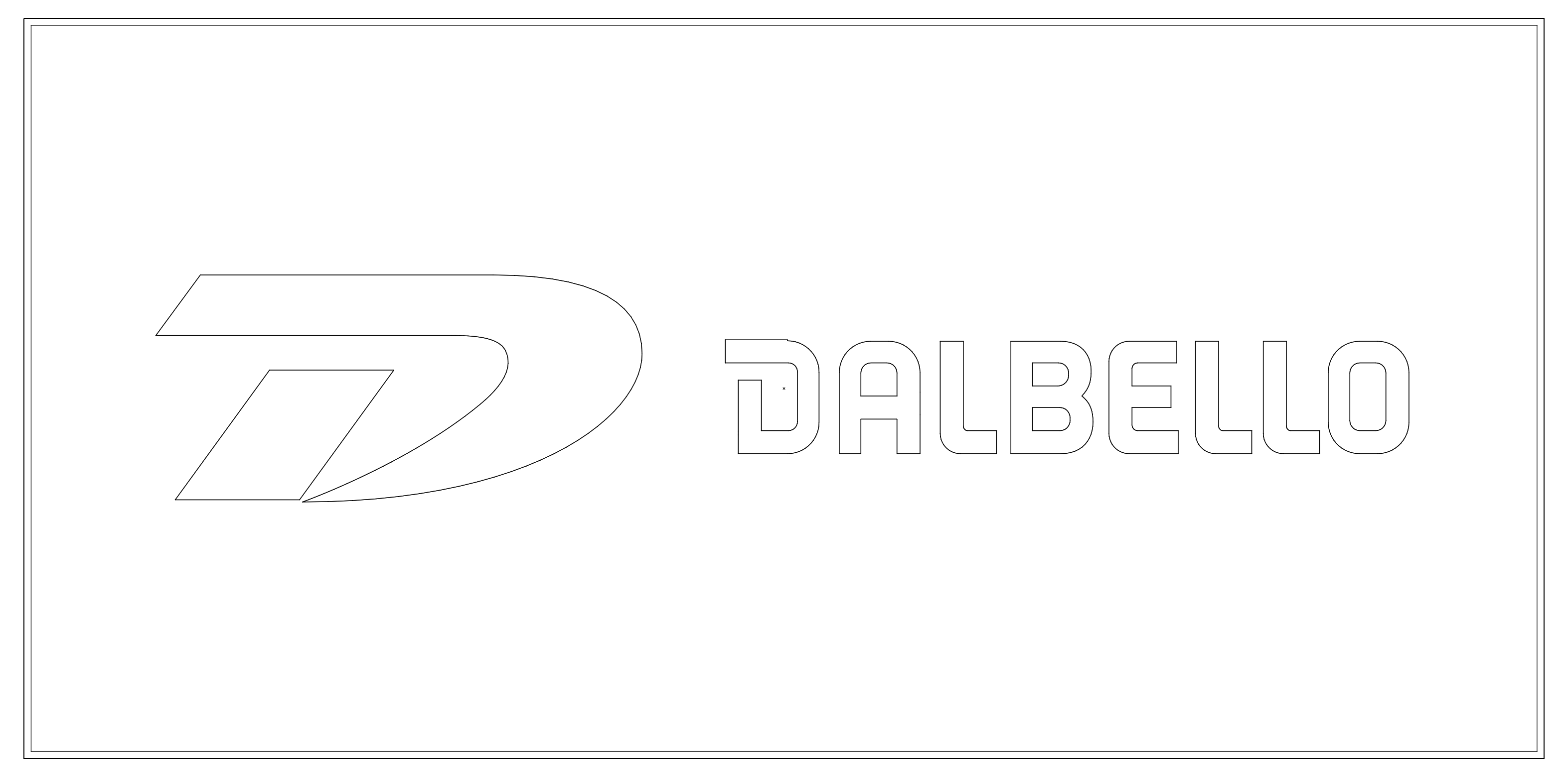

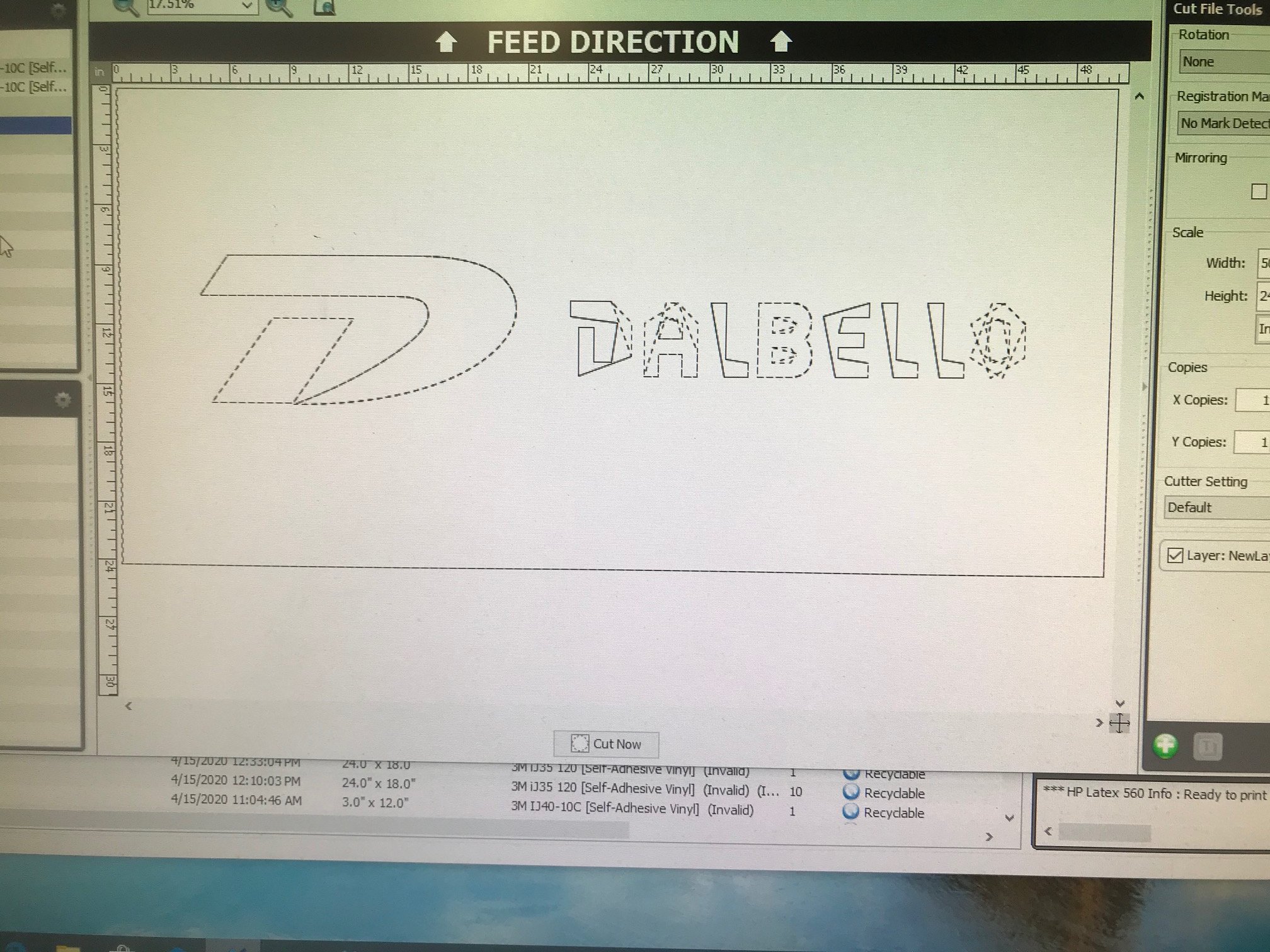

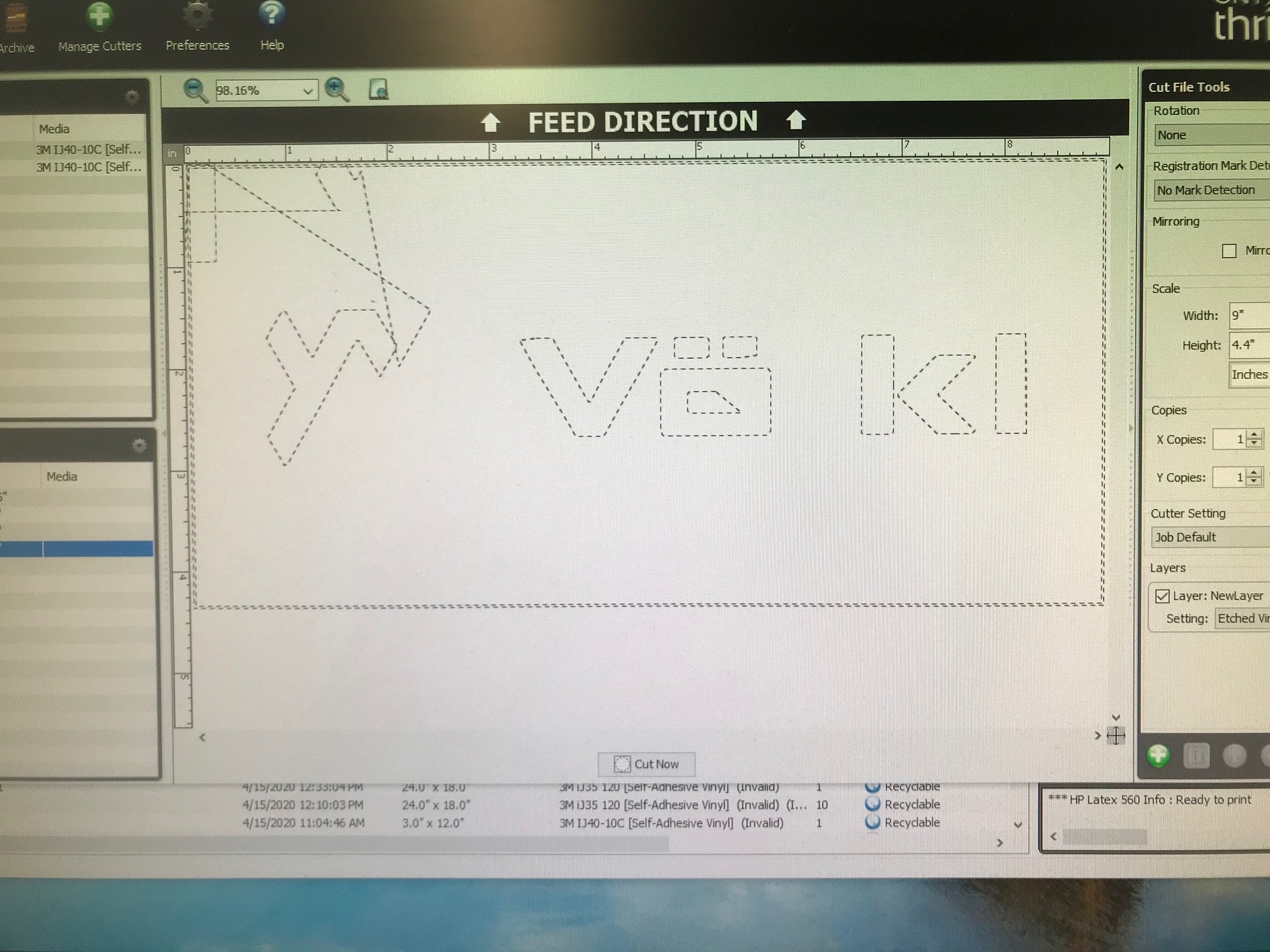

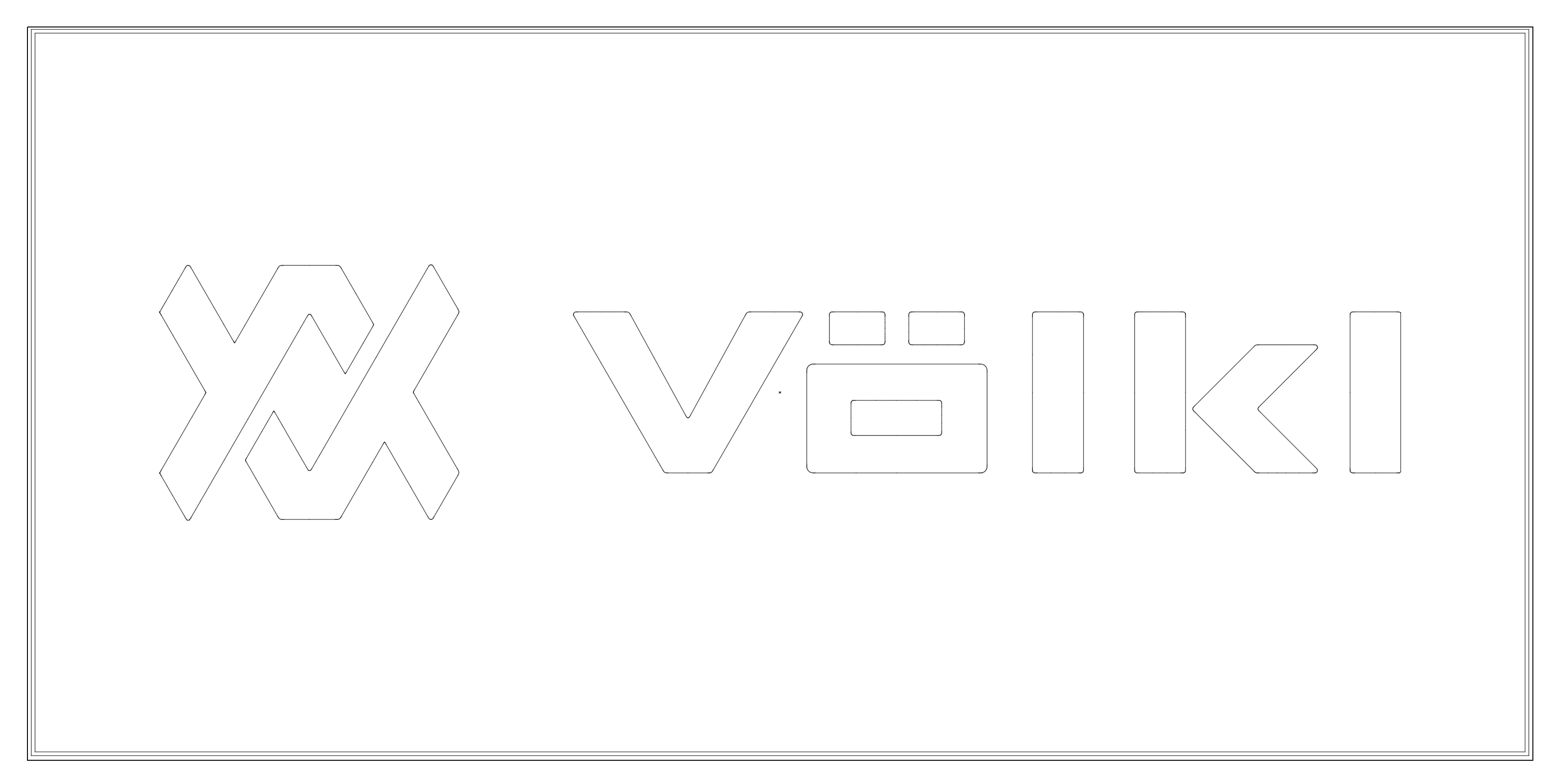

    We recently purchased a Summa cutter (S2 Class T-Series) to use in tandem with our HP Latex 560 printer, and are trying to use the Onyx Thrive RIP software to operate them both. Our HP was purchased in 2017, so it’s using a slightly older version of Thrive (v12, I think). The problem we’re having is that the cut server is struggling to correctly interpret the vector files being sent to it; vector paths that seem pretty simple and straightforward to me go bonkers when loaded into the cut queue (and cut according to the wacky preview instead of the correct vector paths). Our old go-to system for print/cut is a Roland Soljet printer powered by Versacamm RIP software, and over the years I’ve developed some tricks for that system to get files to cut correctly, but my old tricks don’t seem to be effective here. Is there anything I can do to make sure the cut server interprets vector art correctly? Below are a couple of examples of the actual vector art coupled with how it shows up in the Onyx cut server. (Versaworks has no trouble with these files.)


    Attached Files:

    Tags:
  2. SignMeUpGraphics

    SignMeUpGraphics Moderator

    1,421
    311
    83
    Apr 11, 2012
    Australia
    What are you using as design software and what sort of file are you exporting to feed Onyx?
    I've been using Onyx for 7+ years and have only ever seen this happen with malformed SVG files so far.
    Never had it happen with a PDF exported out of Illustrator though.
    Happy to take a copy of one of your files and opening it up in our copy of 12.2 to test if you like.

    • Like Like x 1
  3. iPrintStuff

    iPrintStuff Prints stuff

    1,044
    293
    83
    Sep 3, 2018
    United Kingdom
    +1 for it being dodgy SVG files, had that happen to me a couple times

  4. Awesome Graphics

    Awesome Graphics Member

    118
    10
    18
    Sep 26, 2019
    Vermont
    Thanks for the for the thoughts; I think this just represents growing pains for me. I'm a Versaworks veteran, but an Onyx cut server noob trying to break in a new Summa cutter.

  5. iPrintStuff

    iPrintStuff Prints stuff

    1,044
    293
    83
    Sep 3, 2018
    United Kingdom
    Off topic but are you using summa cutter control/barcode server? Saves a lot of time!

    Assuming the job pictured above is a cut job and not a print and cut?

  6. White Haus

    White Haus Formally known as RJPW..........

    665
    183
    43
    Apr 6, 2018
    Winnipeg
    Same here. Those pictures look exactly like when I was experimenting with Cut Server and SVG files for cut only job. Never did get it to work.

  7. iPrintStuff

    iPrintStuff Prints stuff

    1,044
    293
    83
    Sep 3, 2018
    United Kingdom
    I always found you had to save as SVG, open it up, save artwork to bounds, then resave for it to work. That’s In illustrator though (we don’t do many cut only jobs on that cutter so haven’t done it in a while)

  8. White Haus

    White Haus Formally known as RJPW..........

    665
    183
    43
    Apr 6, 2018
    Winnipeg
    Thanks for the tip, I will give this a shot!
