is there a program that can plot the exact measurements of corner to corner of each letter?

Discussion in 'General Signmaking Topics' started by 0igo, Aug 22, 2018.

  1. Aug 22, 2018 #1
    0igo

    0igo Active Member

    526
    18
    18
    Mar 22, 2014
    Stockton Ca

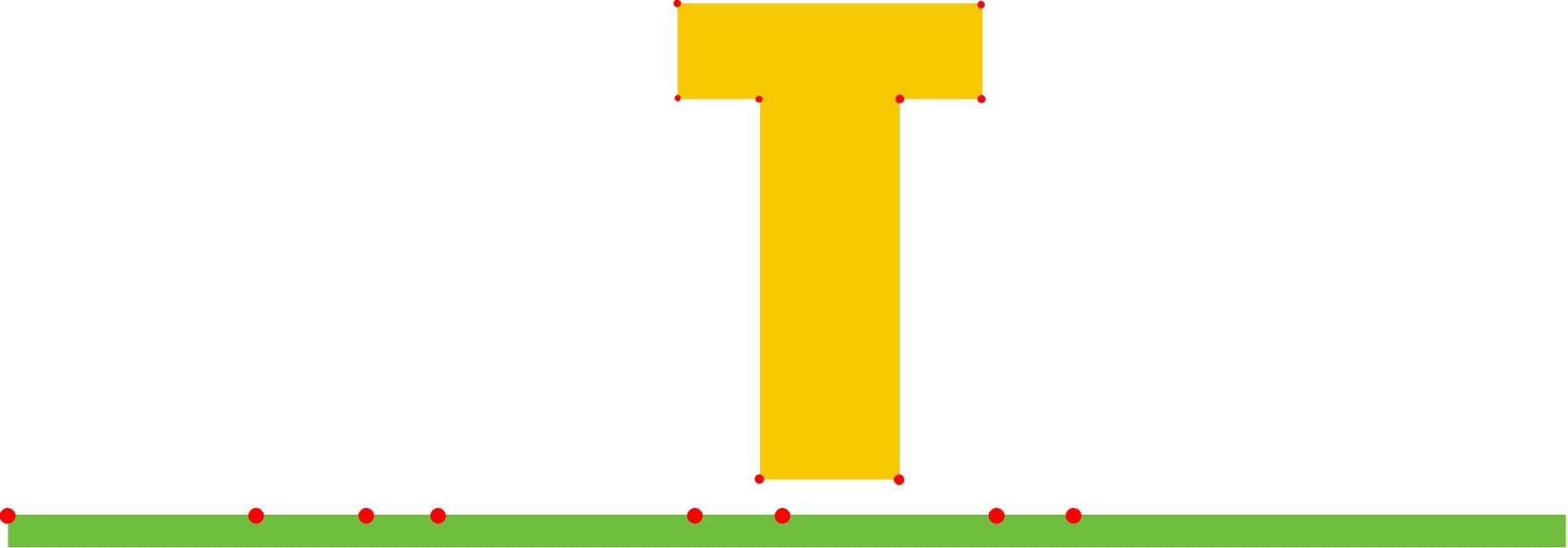

    Im trying to get the exact measurements down of a few words but i need them to be in a straight line if that makes sense? below is an example of what i mean.


    Attached Files:

    Tags:
  2. Aug 22, 2018 #2
    fresh

    fresh Very Active Member

    1,353
    123
    63
    May 16, 2011
    nj
    i'm very confused by your question

  3. Aug 22, 2018 #3
    0igo

    0igo Active Member

    526
    18
    18
    Mar 22, 2014
    Stockton Ca
    yea me too lol. i dont know how to ask it haha. so imagine a straight line with marks. each mark will indicate a bend. for example the letter T has 8 corners (8 bends). i need straight line to have a mark on each corner from a to b and b to c, etc..

  4. Aug 22, 2018 #4
    James Burke

    James Burke Being a grandpa is more fun than working

    3,184
    301
    83
    Jan 2, 2010
    Mitten State
    I assume you're making returns, and I believe you're looking for the word "PERIMETER" - the total distance around a geometric shape...or, in this case, a letter.

    A CAD program like AutoCAD will give you the perimeter (and area) of grouped objects, and if they're un-grouped it will give you lengths of specific segments such as lines and arcs.

    Not sure about other programs...most will give you line segment length, but I don't know about arcs and beziers.


    JB

    Last edited: Aug 22, 2018
  5. Aug 22, 2018 #5
    Rick

    Rick Certified Enneadecagon Designer

    6,955
    389
    83
    Apr 17, 2003
    Valle Vista
    • Like Like x 1
  6. Aug 22, 2018 #6
    eahicks

    eahicks Magna Cum Laude - School of Hard Knocks

    2,301
    312
    83
    Apr 17, 2012
    DALLAS, TEXAS

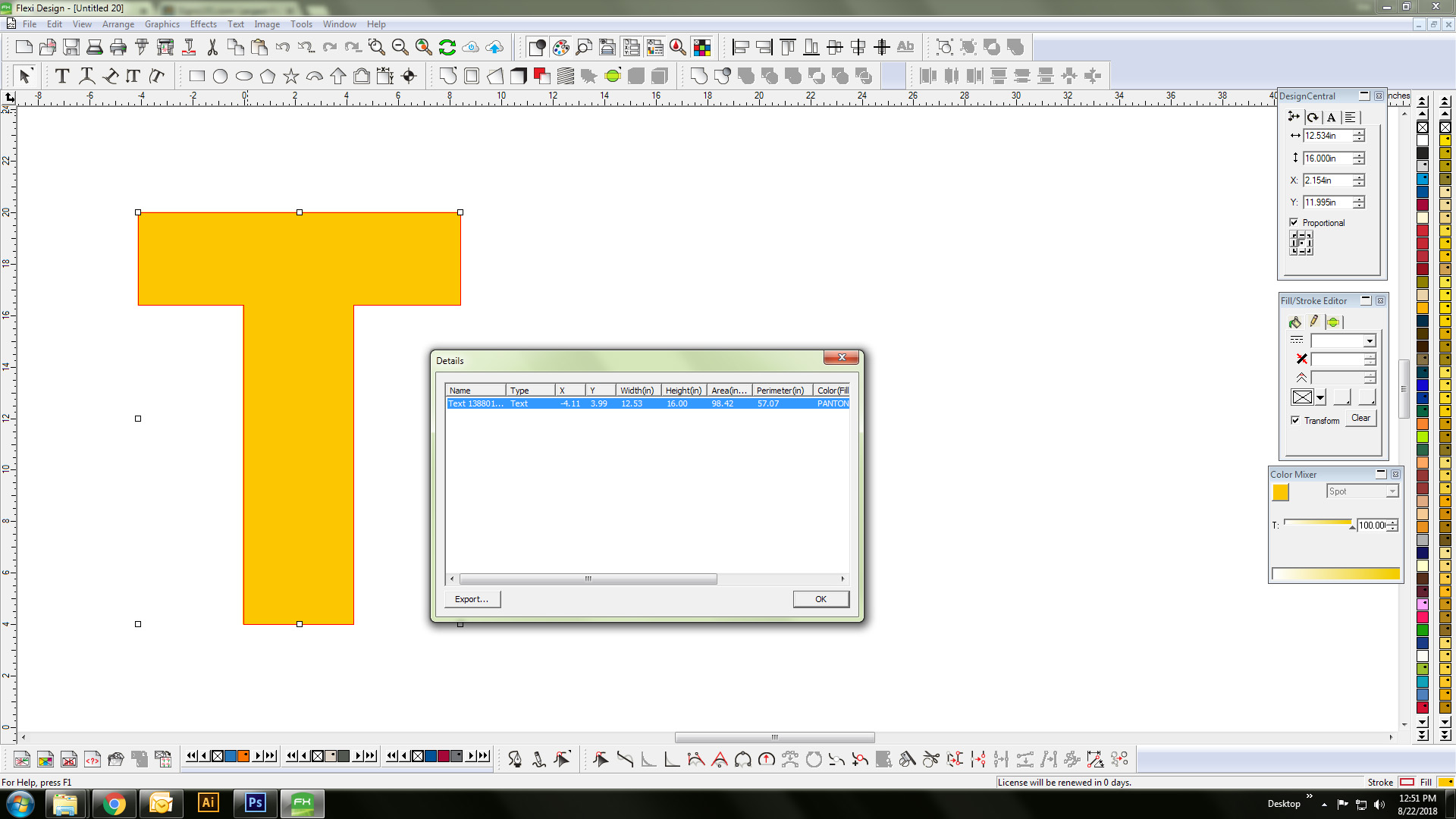

    Flexi will do this. Select your item and hit File>Job Statisitics. Shows the perimeter, area, etc.


    Attached Files:

  7. Aug 22, 2018 #7
    myront

    myront CorelDRAW is best

    1,321
    239
    63
    Dec 3, 2015
    Niceville, FL
    CorelDraw macro.
